Hot sale original AD706JRZ-REEL7 IC OPAMP GP 2 CIRCUIT 8SOIC Standard (General Purpose) Amplifier 2 Circuit 8-SOIC
Manufacturer Product Number
AD706JRZ-REEL7
Description
AD706JRZ-REEL7 IC OPAMP GP 2 CIRCUIT 8SOIC Standard (General Purpose) Amplifier 2 Circuit 8-SOIC
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

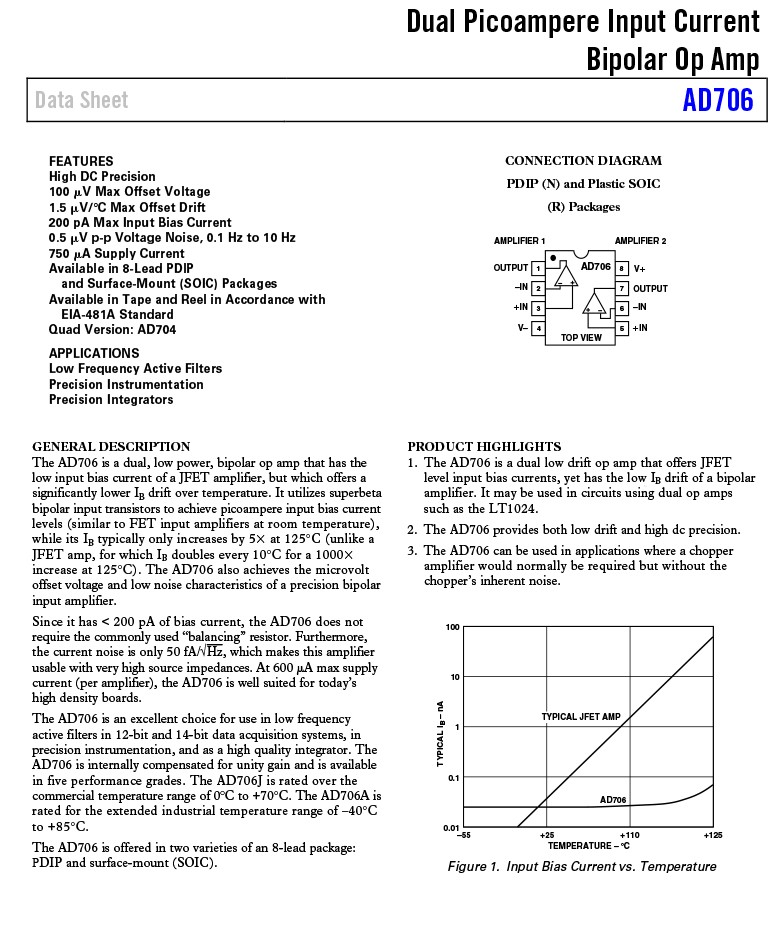

| GENERAL DESCRIPTION The AD706 is a dual, low power, bipolar op amp that has the low input bias current of a JFET amplifier, but which offers a significantly lower IB drift over temperature. It utilizes superbeta bipolar input transistors to achieve picoampere input bias current levels (similar to FET input amplifiers at room temperature), while its IB typically only increases by 5 x at 125°C (unlike a JFET amp, for which IB doubles every 10°C for a 1000x increase at 125°C). The AD706 also achieves the microvolt offset voltage and low noise characteristics of a precision bipolar input amplifier. Since it has < 200 pA of bias current, the AD706 does not require the commonly used “balancing” resistor. Furthermore, the current noise is only 50 fA/√Hz, which makes this amplifier usable with very high source impedances. At 600 A max supply current (per amplifier), the AD706 is well suited for today’s high density boards. The AD706 is an excellent choice for use in low frequency active filters in 12-bit and 14-bit data acquisition systems, in precision instrumentation, and as a high quality integrator. The AD706 is internally compensated for unity gain and is available in five performance grades. The AD706J is rated over the commercial temperature range of 0°C to +70°C. The AD706A is rated for the extended industrial temperature range of –40°C to +85°C. The AD706 is offered in two varieties of an 8-lead package: plastic mini-DIP and surface-mount (SOIC). FEATURESHigh DC Precision 100 μV Max Offset Voltage 1.5 μV/C Max Offset Drift 200 pA Max Input Bias Current 0.5 μV p-p Voltage Noise, 0.1 Hz to 10 Hz 750 μA Supply Current Available in 8-Lead Plastic Mini-DlP and Surface-Mount (SOIC) Packages Available in Tape and Reel in Accordance with EIA-481A Standard Quad Version: AD704 APPLICATIONSLow Frequency Active Filters Precision Instrumentation Precision Integrators |
Product Description
| Type | Description |
| ANSC PART# | ANSC - AD706JRZ-REEL7 |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 0.15V/µs |
| Gain Bandwidth Product | 800 kHz |
| -3db Bandwidth | 800 kHz |
| Current - Input Bias | 50 pA |
| Voltage - Input Offset | 30 µV |
| Current - Supply | 750µA |
| Current - Output / Channel | 15 mA |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AD706 |

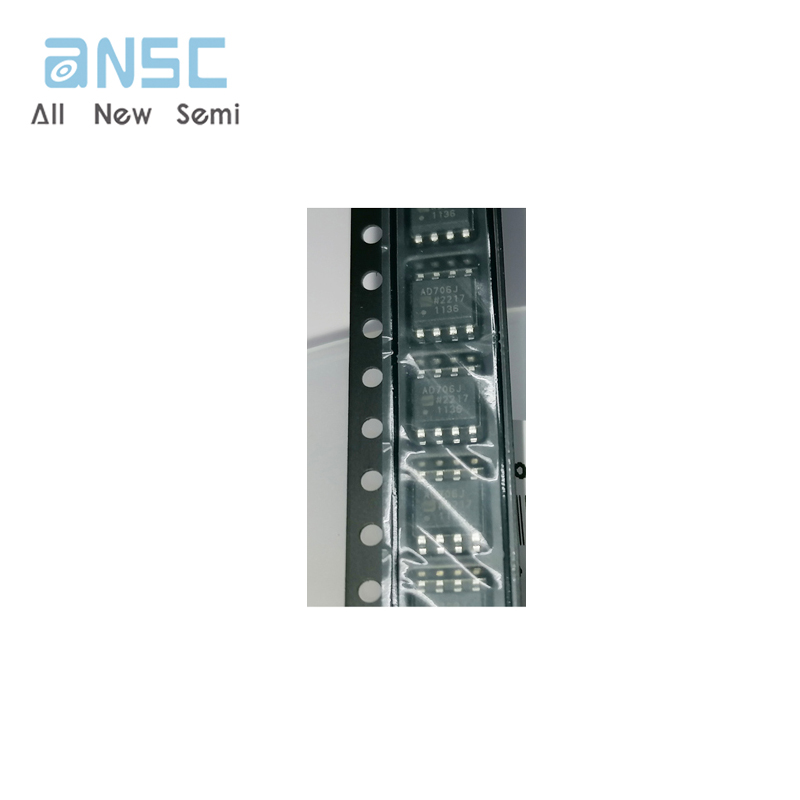

Product Photos

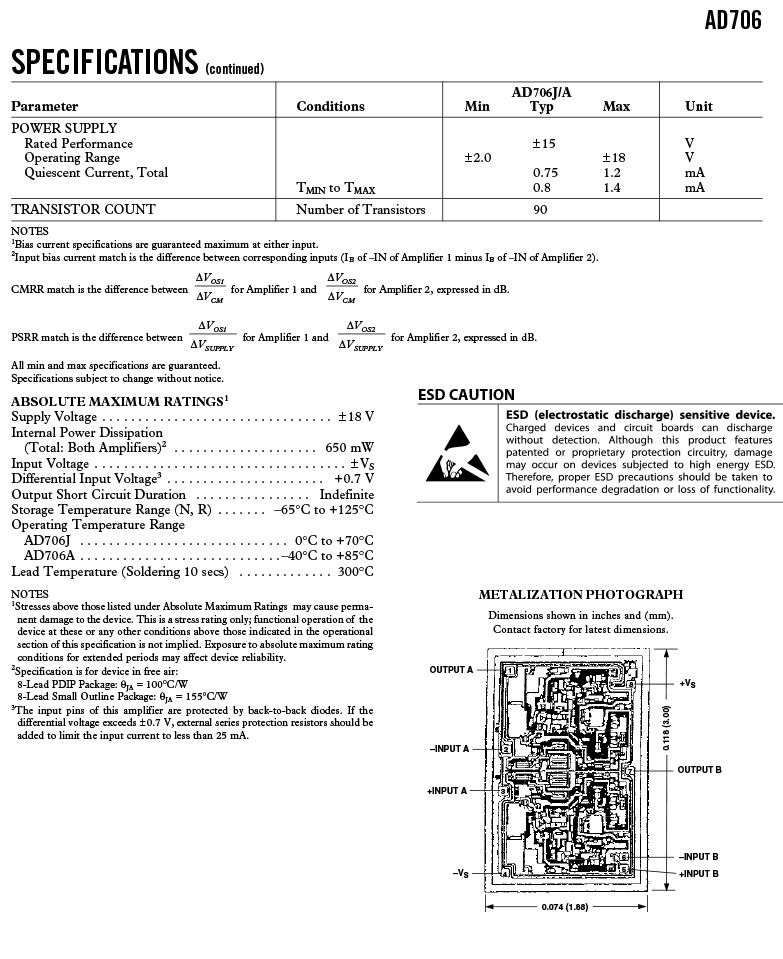

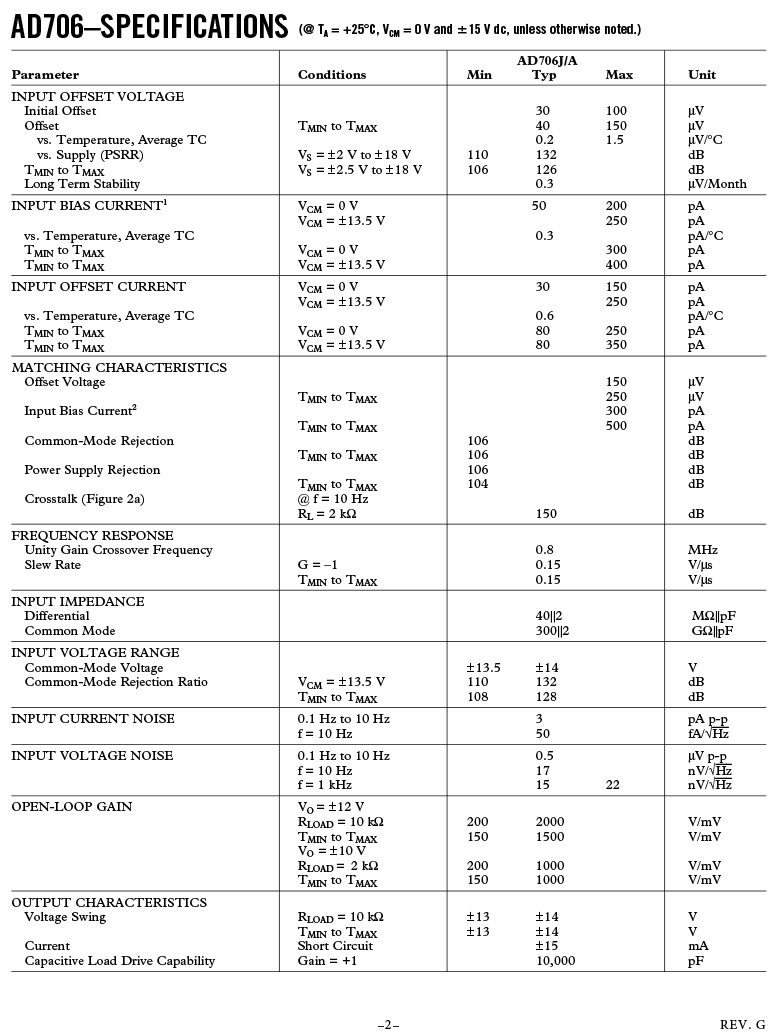

Product datasheet
For more information, please download
