Hot-selling and scarce TPA2012D2EVM-CB 2.1 W/CH STEREO FILTER-FREE CLASS-D AUDIO POWER AMPLIFIER QFN spot stock

Product Descriptions

The TPA2012D2 is a stereo, filter-free Class-D audio amplifier available in a WCSP or QFN package. The TPA2012D2 only requires two external components for operation.

The TPA2012D2 features independent shutdown controls for each channel. The gain can be selected to 6, 12, 18, or 24 dB utilizing the G0 and G1 gain select pins. High PSRR and differential architecture provide increased immunity to noise and RF rectification. In addition to these features, a fast startup time and small package size make the TPA2012D2 an ideal choice for both cellular handsets and PDAs.

The TPA2012D2 is capable of driving 1.4 W/Ch at 5 V or 720 mW/Ch at 3.6 V into 8 Ω. The TPA2012D2 is also capable of driving 4 Ω. The TPA2012D2 provides thermal and short circuit protection.

Product Features

• 2.1 W/Ch Into 4 Ω at 5 V

• 1.4 W/Ch Into 8 Ω at 5 V

• 720 mW/Ch Into 8 Ω at 3.6 V

• Only Two External Components Required

• Power Supply Range: 2.5 V to 5.5 V

• Independent Shutdown Control for Each Channel

• Selectable Gain of 6, 12, 18, and 24 dB

• Internal Pulldown Resistor On Shutdown Pins

• High PSRR: 77 dB at 217 Hz

• Fast Startup Time (3.5 ms)

• Low Supply Current

• Low Shutdown Current

• Short-Circuit and Thermal Protection

• Space Saving Packages

• 2 mm X 2 mm NanoFree™ WCSP (YZH)(Future Product)

• 4 mm X 4 mm Pb-Free Thin QFN (RTJ) with Power PAD

​

Product Applications

• Wireless or Cellular Handsets and PDAs

• Portable DVD Player

• Notebook PC

• Portable Radio

• Portable Gaming

• Educational Toys

• USB Speakers

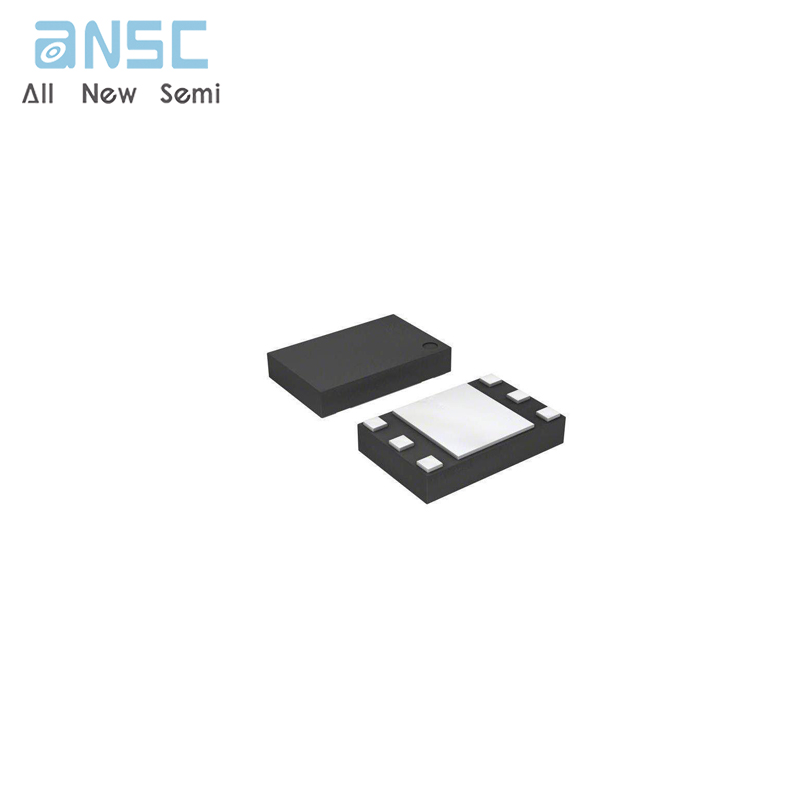

Product Photos

For more product information, please download the PDF
