TLV2460CDBVT FAMILY OF LOW-POWER RAIL-TO-RAIL INPUT/OUTPUT OPERATIONAL AMPLIFIERS WITH SHUTDOWN SOT23-6 spot stock
Manufacturer Product Number
TLV2460CDBVT
Description
TLV2460CDBVT FAMILY OF LOW-POWER OPERATIONAL AMPLIFIERS
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The TLV246x is a family of low-power rail-to-rail input/output operational amplifiers specifically designed for portable applications. The input common-mode voltage range extends beyond the supply rails for maximum dynamic range in low-voltage systems. The amplifier output has rail-to-rail performance with high-output-drive capability, solving one of the limitations of older rail-to-rail input/output operational amplifiers. This rail-to-rail dynamic range and high output drive make the TLV246x ideal for buffering analog-to-digital converters.
The operational amplifier has 6.4 MHz of bandwidth and 1.6 V/µs of slew rate with only 500 µA of supply current, providing good ac performance with low power consumption. Three members of the family offer a shutdown terminal, which places the amplifier in an ultralow supply current mode (IDD = 0.3 µA/ch). While in shutdown, the operational-amplifier output is placed in a high-impedance state. DC applications are also well served with an input noise voltage of 11 nV/√Hz and input offset voltage of 100 µV.
This family is available in the low-profile SOT23, MSOP, and TSSOP packages. The TLV2460 is the first rail-to-rail input/output operational amplifier with shutdown available in the 6-pin SOT23, making it perfect for high-density circuits. The family is specified over an expanded temperature range (TA = −40°C to 125°C) for use in industrial control and automotive systems, and over the military temperature range (TA = −55°C to 125°C) for use in military systems.
Product Features
Rail-to-Rail Output Swing
Gain Bandwidth Product . . . 6.4 MHz
±80 mA Output Drive Capability
Supply Current . . . 500 µA/channel
Input Offset Voltage . . . 100 µV
Input Noise Voltage . . . 11 nV/√Hz
Slew Rate . . . 1.6 V/µs
Micropower Shutdown Mode (TLV2460/3/5) . . . 0.3 µA/Channel
Universal Operational Amplifier EVM
Available in Q-Temp Automotive
HighRel Automotive Applications
Configuration Control/Print Support
Qualification to Automotive Standards
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TLV2460CDBVT |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 1.6V/µs |
| Gain Bandwidth Product | 6.4 MHz |
| Current - Input Bias | 1.3 nA |
| Voltage - Input Offset | 500 µV |
| Current - Supply | 500 µV |
| Current - Output / Channel | 80 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 6 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| Base Product Number | TLV2460 |

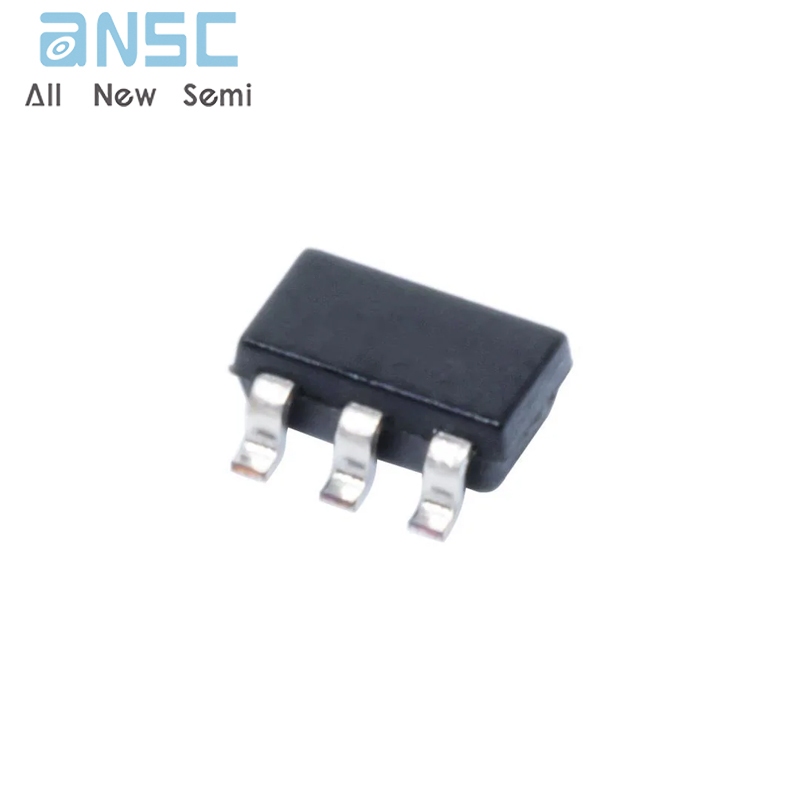

Product Photos
