Hot sale Original OPA4348AIPWR IC CMOS 4 CIRCUIT 14TSSOP CMOS Amplifier 4 Circuit Rail-to-Rail 14-TSSOP
Manufacturer Product Number
OPA4348AIPWR
Description
OPA4348AIPWR IC CMOS 4 CIRCUIT 14TSSOP CMOS Amplifier 4 Circuit Rail-to-Rail 14-TSSOP
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| DESCRIPTION The UTC OPA2336 is a CMOS operational amplifier. It is operated on a 2.1V (Min.) single supply. A100kΩ load is driven by the rail-to-rail output and the accuracy of the output voltage is ensured at ± 3mV. The UTC OPA2336 is characterized by its low quiescent current (20μA/amplifier), low offset voltage (125μV max), low input bias current (1pA), and high open-loop gain (115dB). The UTC OPA2336 features completely independent circuitry for lowest crosstalk and freedom from interaction. The UTC OPA2336 is particularly designed for battery-powered applications and the common-mode range extending to the negative supply makes it ideal for single-supply applications. In addition to the applications mentioned above, the UTC OPA2336 is suitable for portable devices, high-Impedance applications, photodiode, pre-amps, precision integrators, medical instruments, and test equipment. FEATURES * Operating on a Single-Supply * Rail-to-Rail Output (Accuracy: ± 3mv) * Low Power Dissipation: IQ=20μA/Amplifier * Low Offset Voltage up to 125μV (MAX.) * Power Supply Specified from 2.3V to 5.5V * Halogen Free |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - OPA4348AIPWR |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Amplifier Type | CMOS |
| Number of Circuits | 4 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.5V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 0.5 pA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 45µA (x4 Channels) |
| Current - Output / Channel | 10 mA |
| Voltage - Supply Span (Min) | 2.1 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Base Product Number | OPA4348 |

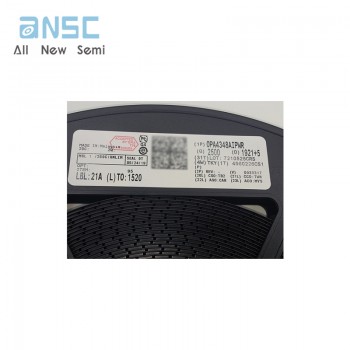

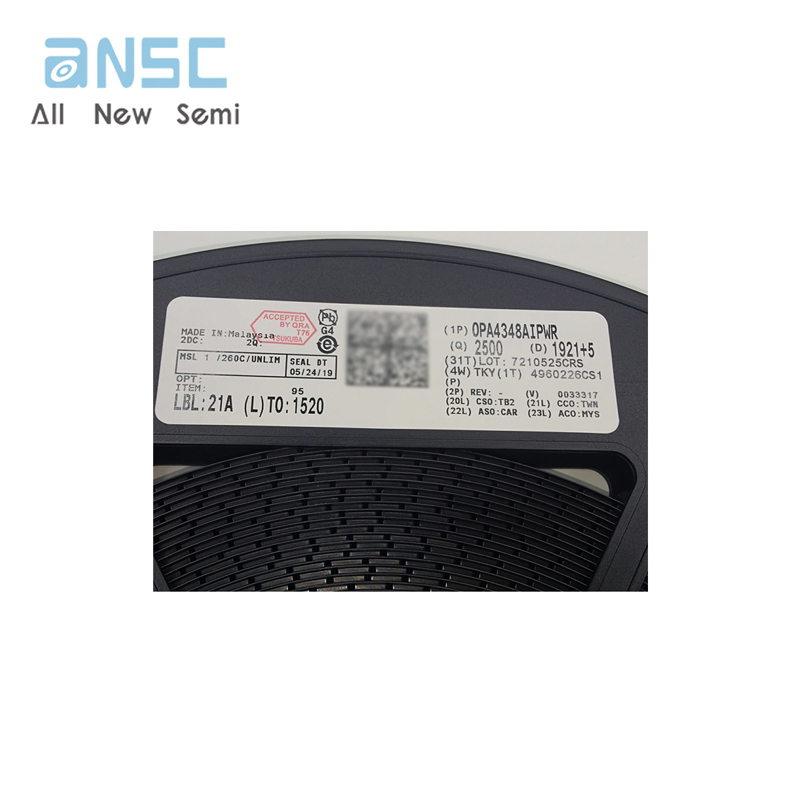

Actual image of the product

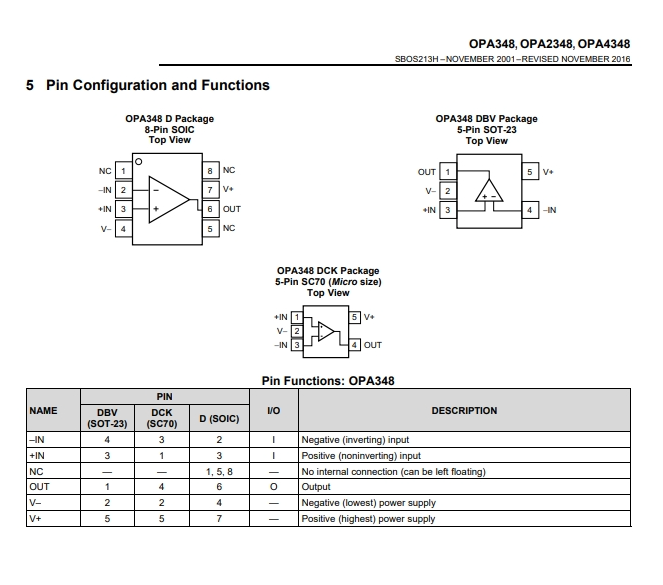

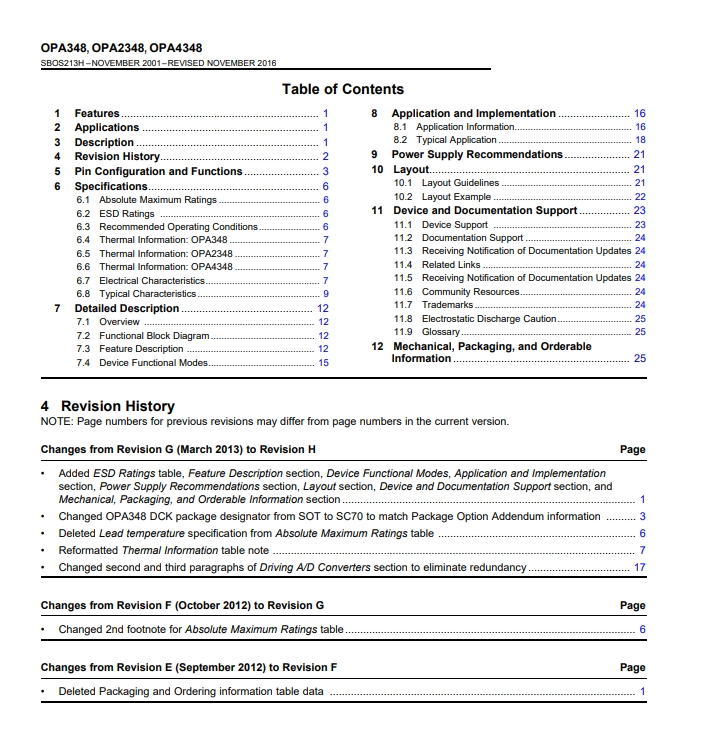

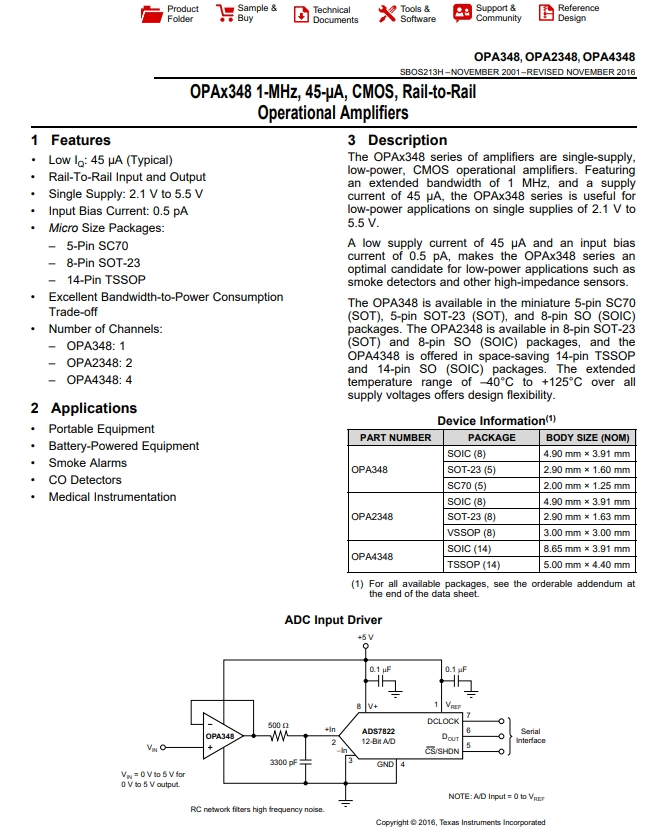

Product datasheet
For more information, please download
