Hot-selling and scarce TL084CDT General purpose JFET quad operational amplifier SOP14
Manufacturer Product Number
TL084CDT
Description
TL084CDT General purpose JFET quad operational amplifier SOP14
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The TL084, TL084A and TL084B are high-speed JFET input quad operational amplifiers incorporating well matched, high voltage JFET and bipolar transistors in a monolithic integrated circuit.
The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.
Product Features
■ Wide common-mode (up to VCC+) and differential voltage range
■ Low input bias and offset current
■ Output short-circuit protection
■ High input impedance JFET input stage
■ Internal frequency compensation
■ Latch up free operation
■ High slew rate: 16V/µs (typ)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TL084CDT |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Amplifier Type | J-FET |
| Number of Circuits | 4 |
| Slew Rate | 16V/µs |
| Gain Bandwidth Product | 4 MHz |
| Current - Input Bias | 30 pA |
| Voltage - Input Offset | 3 mV |
| Current - Supply | 1.4mA (x4 Channels) |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 6 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | 0°C ~ 70°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SO |
| Base Product Number | TL084 |

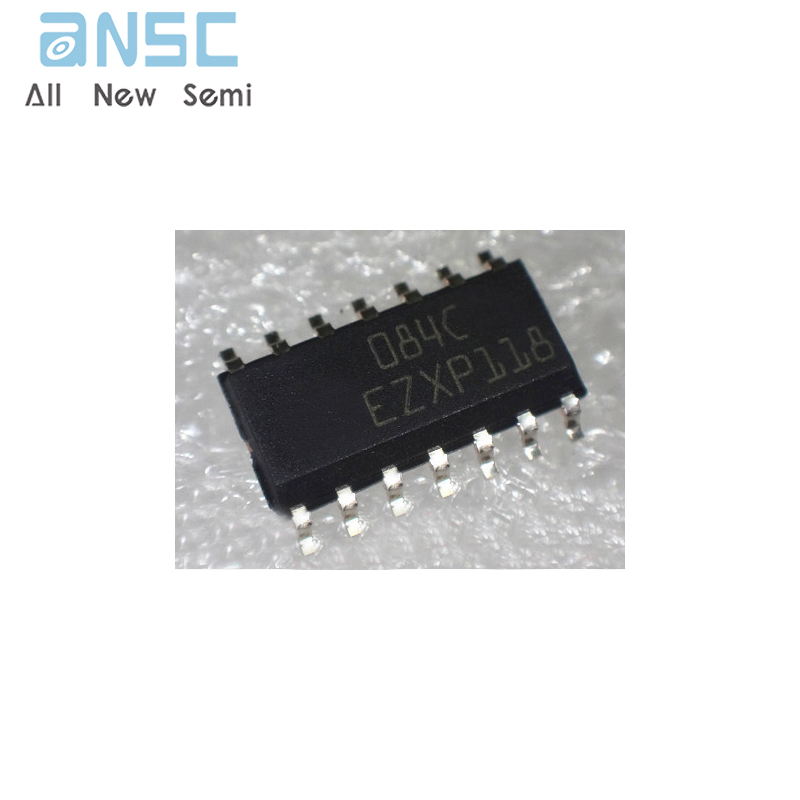

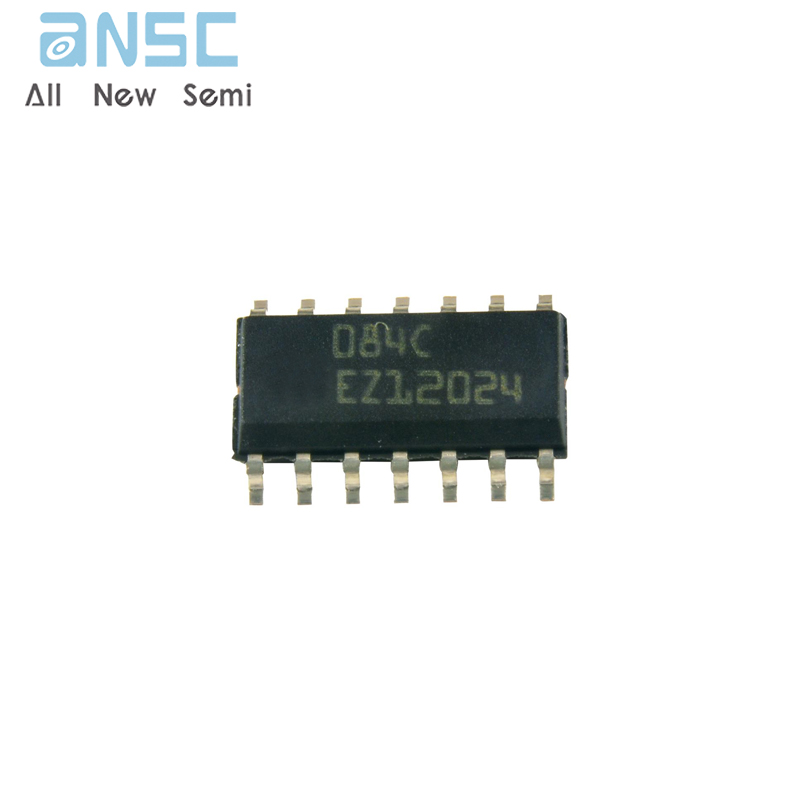

Product Photos
For more product information, please download the PDF
