Hot-selling and scarce LM358M Low Power Dual Operational Amplifiers IC SOP8 spot stock

Product Descriptions

The LM158 series consists of two independent, high gain,internally  frequency  compensated  operational  amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages . Operation from split  power  supplies  is  also  possible  and  the  low  power supply current drain is independent of the magnitude of the power supply voltage .

Application  areas  include  transducer  amplifiers,  dc  gainblocks and all the conventional op amp circuits which now can  be  more  easily  implemented  in  single  power  supply systems .  For example, the  LM158 series can  be directly operated off of the standard +5V power supply voltage which is used in digital systems and will easily provide the required interface electronics without requiring the additional ±15V power supplies .

The LM358 and LM2904 are available in a chip sized package (8-Bump micro SMD) using National’s micro SMD package technology.

Product Features

n Available in 8-Bump micro SMD chip sized package, (See AN-1112)

n Internally frequency compensated for unity gain

n Large dc voltage gain:   100 dB

n Wide bandwidth (unity gain):   1 MHz (temperature compensated)

n Wide power supply range:

— Single supply:   3V to 32V

— or dual supplies:   ±1.5V to ±16V

n Very low supply current drain (500 µA)—essentially independent of supply voltage

n Low input offset voltage:   2 mV

n Input common-mode voltage range includes ground

n Differential input voltage range equal to the power supply voltage

n Large output voltage swing

Product Specification

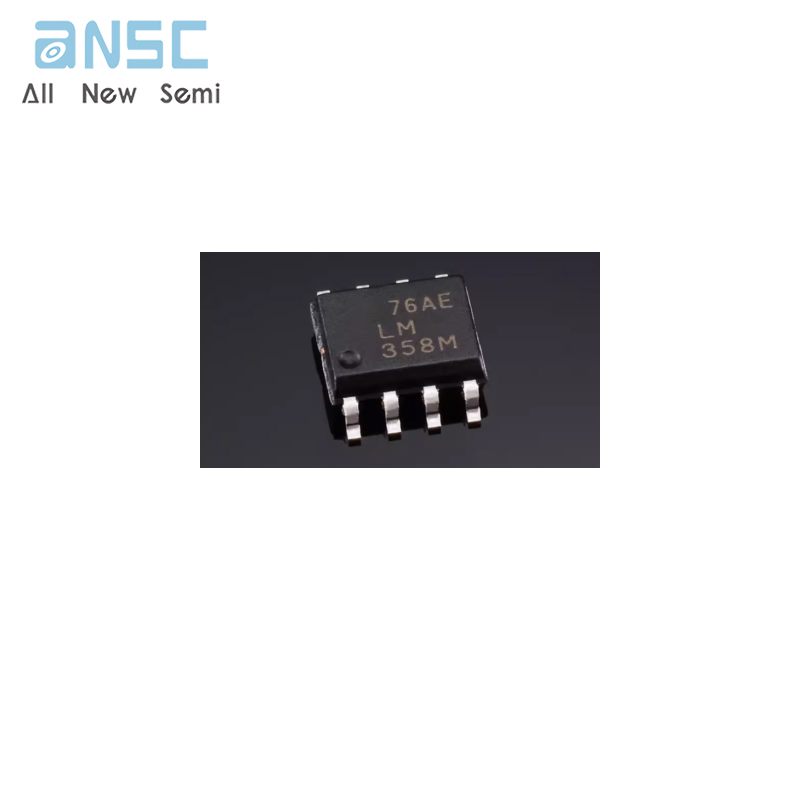

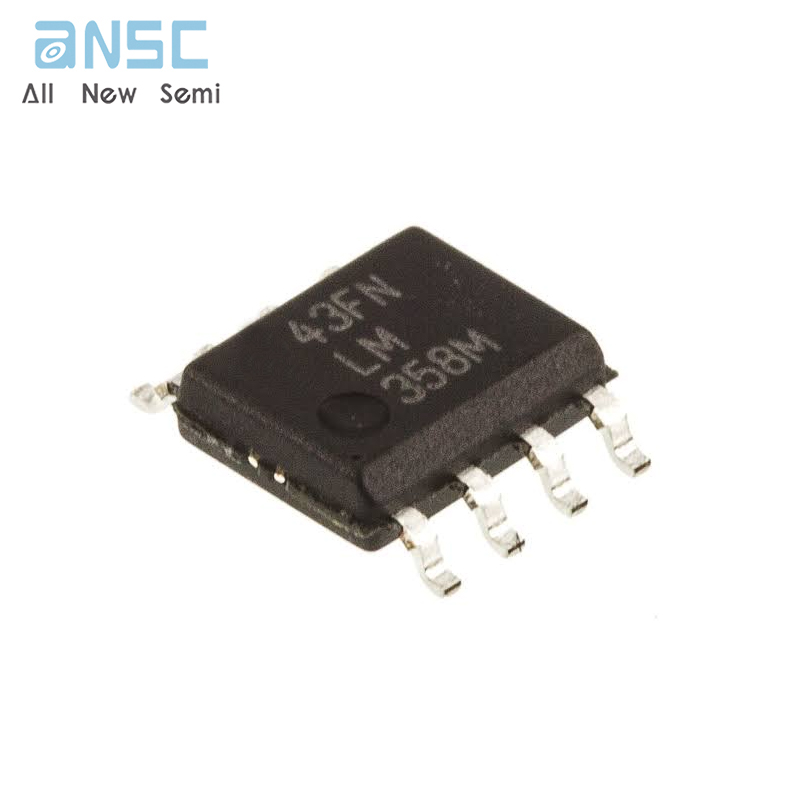

Product Photos

For more product information, please download the PDF
