Hot-selling and scarce TL074MJ LOW-NOISE JFET-INPUT OPERATIONAL AMPLIFIERS CDIP14 spot stock

Product Descriptions

The JFET-input operational amplifiers in the TL07x series are similar to the TL08x series, with low input bias and offset currents and fast slew rate. The low harmonic distortion and low noise make the TL07x series ideally suited for high-fidelity and audio preamplifier applications. Each amplifier features JFET inputs (for high input impedance) coupled with bipolar output stages integrated on a single monolithic chip.

The C-suffix devices are characterized for operation from 0°C to 70°C. The I-suffix devices are characterized for operation from −40°C to 85°C. The M-suffix devices are characterized for operation over the full military temperature range of −55°C to 125°C.

Product Features

Low Power Consumption

Wide Common-Mode and Differential Voltage Ranges

Low Input Bias and Offset Currents

Output Short-Circuit Protection

Low Total Harmonic Distortion. . . 0.003 percent Typ

Low Noise

Vn = 18 nV/√Hz Typ at f = 1 kHz

High Input Impedance . . . JFET Input Stage

Internal Frequency Compensation

Latch-Up-Free Operation

High Slew Rate . . . 13 V/µs Typ

Common-Mode Input Voltage Range Includes VCC+

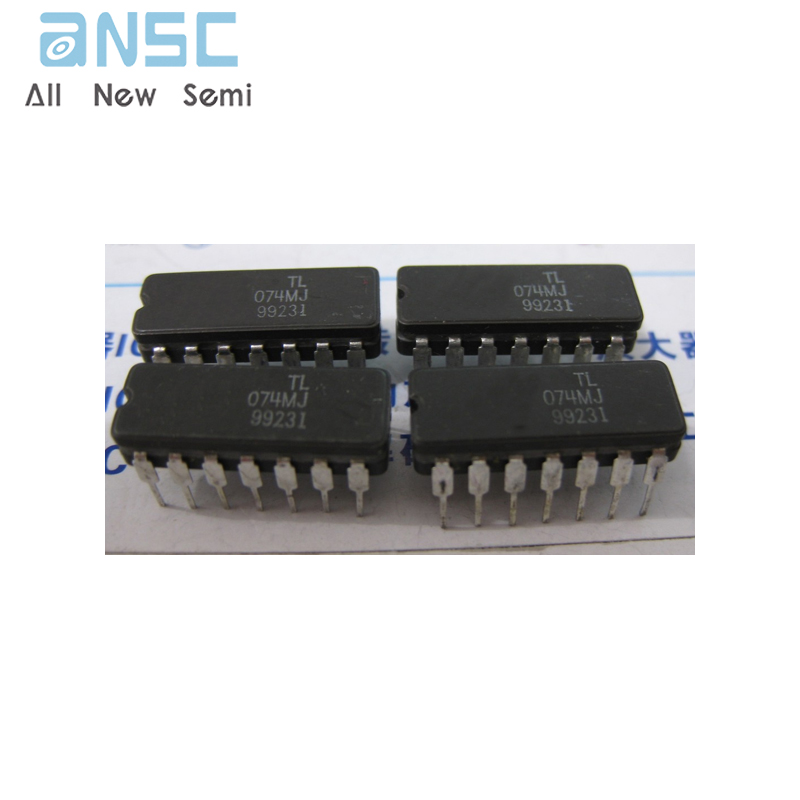

Product Photos

For more product information, please download the PDF
