Hot-selling and scarce OP497BRC/883 Precision Picoampere Input Current Quad Operational Amplifier LCC20 spot stock

Product Descriptions

The OP497 is a quad op amp with precision performance in the space-saving, industry standard 16-lead SOlC package. Its combination of exceptional precision with low power and extremely low input bias current makes the quad OP497 useful in a wide variety of applications.

Precision performance of the OP497 includes very low offset, under 50 µV, and low drift, below 0.5 µV/°C. Open-loop gain exceeds 2000 V/mV ensuring high linearity in every application. Errors due to common-mode signals are eliminated by the OP497’s common-mode rejection of over 120 dB. The OP497’s power supply rejection of over 120 dB minimizes offset voltage changes experienced in battery-powered systems. Supply current of the OP497 is under 625 µA per amplifier, and it can operate with supply voltages as low as ±2 V.

The OP497 utilizes a superbeta input stage with bias current cancellation to maintain picoamp bias currents at all temperatures. This is in contrast to FET input op amps whose bias currents start in the picoamp range at 25°C, but double for every 10°C rise in temperature, to reach the nanoamp range above 85°C. Input bias current of the OP497 is under 100 pA at 25°C and is under 450 pA over the military temperature range.

Combining precision, low power, and low bias current, the OP497 is ideal for a number of applications, including instrumentation amplifiers, log amplifiers, photo-diode preamplifiers, and long-term integrators. For a single device, see the OP97; for a dual device, see the OP297.

Product Features

Low Offset Voltage: 50  V max

Low Offset Voltage Drift: 0.5  V/C max

Very Low Bias Current

25C: 100 pA max

–55C to +125C: 450 pA max

Very High Open-Loop Gain: 2000 V/mV min

Low Supply Current (per Amplifier): 625  A max

Operates from 2 V to 20 V Supplies

High Common-Mode Rejection: 120 dB min

Product Applications

Strain Gage and Bridge Amplifiers

High Stability Thermocouple Amplifiers

Instrumentation Amplifiers

Photo-Current Monitors

High Gain Linearity Amplifiers

Long-Term Integrators/Filters

Sample-and-Hold Amplifiers

Peak Detectors

Logarithmic Amplifiers

Battery-Powered Systems

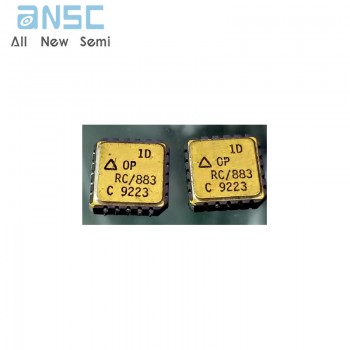

Product Photos

For more product information, please download the PDF
