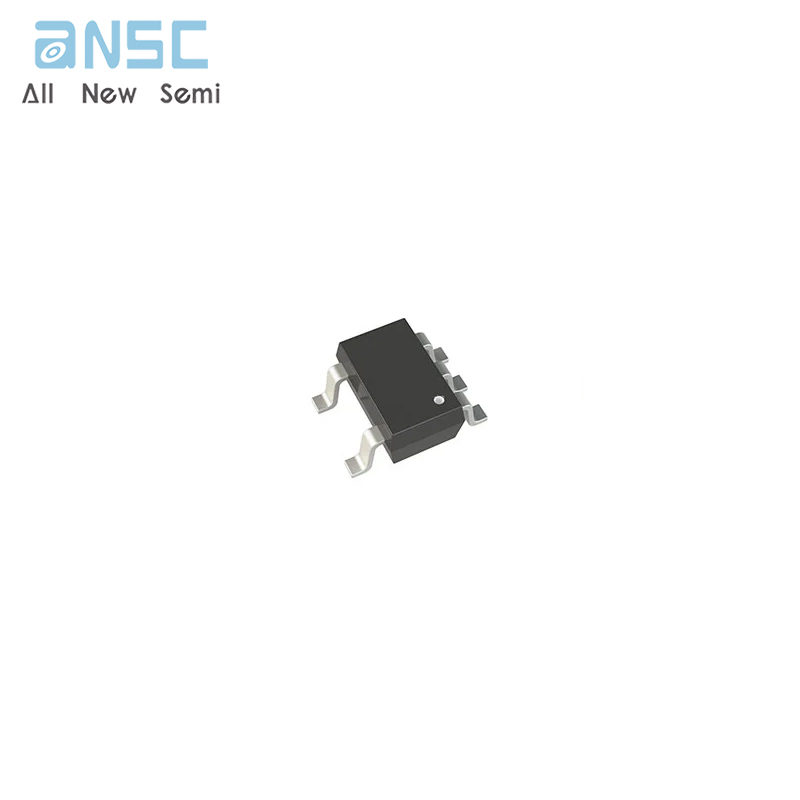

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
AD8628AUJZ-REEL7 Zero-Drift, Single-Supply, Rail-to-Rail Input/Output Operational Amplifier SOT23-5 spot stock
Manufacturer Product Number
AD8628AUJZ-REEL7
Description
AD8628AUJZ-REEL7 Zero-Drift Output Operational Amplifier
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This new breed of amplifier has ultralow offset,drift,and bias current.The AD8628/AD8629 are wide bandwidth auto-zero amplifiers featuring rail-to-rail input and output swings and low noise.Operation is fully specified from 2.7 V to 5 V single supply (±1 .35 V to ±2 .5 V dual supply).
The AD8628/AD8629 provide benefits previously found only inexpensive auto-zeroing or chopper-stabilized amplifiers.Using Analog Devices’new topology,these zero-drift amplifiers combine low cost with high accuracy and low noise. (No external capacitor is required.) In addition,the AD8628/AD8629 greatly reduce the digital switching noise found in most chopper-stabilized amplifiers.
With an offset voltage of only 1 µV,drift of less than
0.005 µV/°C,and noise of only 0.5 µV p-p (0 Hz to 10 Hz), the AD8628/AD8629 are perfectly suited for applications in which error sources cannot be tolerated.Position and pressure sensors,medical equipment,and strain gage amplifiers benefit greatly from nearly zero drift over their operating temperature range.Many systems can take advantage of the rail-to-rail input and output swings provided by the AD8628/AD8629 to reduce input biasing complexity and maximize SNR.
The AD8628/AD8629 are specified for the extended industrial temperature range (−40°C to +125°C).The AD8628 is available in tiny TSOT-23,SOT-23,and the popular 8-lead narrow SOIC plastic packages.The AD8629 is available in the standard 8-lead narrow SOIC and MSOP plastic packages.
Product Features
Lowest auto-zero amplifier noise
Low offset voltage: 1 µV
Input offset drift: 0.002 µV/°C
Rail-to-rail input and output swing
5 V single-supply operation
High gain, CMRR, and PSRR: 120 dB
Very low input bias current: 100 pA max
Low supply current: 1.0 mA
Overload recovery time: 10 µs
No external components required
Product Applications
Automotive sensors
Pressure and position sensors
Strain gage amplifiers
Medical instrumentation
Thermocouple amplifiers
Precision current sensing
Photodiode amplifier
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AD8628AUJZ-REEL7 |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Amplifier Type | Zero-Drift |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 1V/µs |
| Gain Bandwidth Product | 2.5 MHz |
| Current - Input Bias | 30 pA |
| Voltage - Input Offset | 1 µV |
| Current - Supply | 850µA |
| Current - Output / Channel | 30 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Base Product Number | AD8628 |
Product Photos
For more product information, please download the PDF
