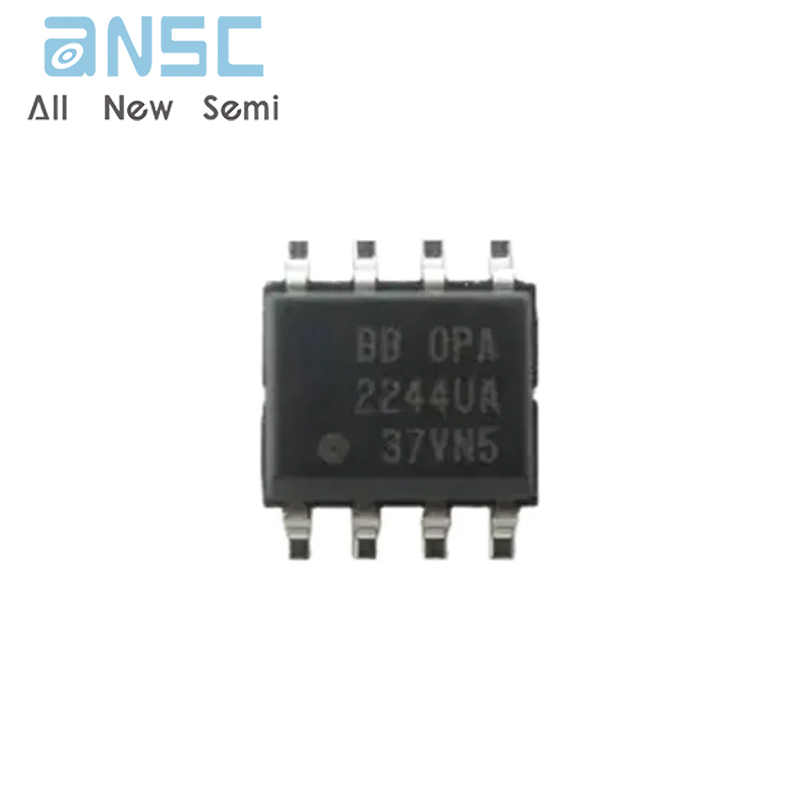

Spot sales of OPA2244UA Micro Power, Single-Supply OPERATIONAL AMPLIFIERS SOP-8
Manufacturer Product Number
OPA2244UA
Description
OPA2244UA Micro Power, Single-Supply OPERATIONAL AMPLIFIERS SOP-8
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The OPA244 (single), OPA2244 (dual), and OPA4244 (quad) op amps are designed for very low quiescent current (50µA/channel), yet achieve excellent bandwidth. Ideal for battery powered and portable instrumentation, all versions are offered in micro packages for space-limited applications. The dual and quad versions feature completely independent circuitry for lowest crosstalk and freedom from interaction, even when overdriven or overloaded.
The OPA244 series is easy to use and free from phase inversion and overload problems found in some other op amps. These amplifiers are stable in unity gain and excellent performance is maintained as they swing to their specified limits. They can be operated from single (+2.2V to +36V) or dual supplies (±1.1V to ±18V). The input common-mode voltage range includes ground—ideal for many single supply applications. All versions have similar performance. However, there are some differences, such as common-mode rejection. All versions are interchangeable in most applications.
All versions are offered in miniature, surface-mount packages. OPA244 (single version) comes in the tiny 5-lead SOT-23-5 surface mount, SO-8 surface mount, and 8-pin DIP. OPA2244 (dual version) is available in the MSOP-8 surface mount, SO-8 surface-mount, and 8-pin DIP. The OPA4244 (quad) comes in the TSSOP-14 surface mount. They are fully specified from –40°C to +85°C and operate from –55°C to +125°C. A SPICE Macromodel is available for design analysis.
Product Features
● MicroSIZE PACKAGES
OPA244 (Single): SOT-23-5
OPA2244 (Dual): MSOP-8
OPA4244 (Quad): TSSOP-14
● MicroPOWER: IQ = 50µA/channel
● SINGLE SUPPLY OPERATION
● WIDE BANDWIDTH: 430kHz
● WIDE SUPPLY RANGE:
Single Supply: 2.2V to 36V
Dual Supply: ±1.1V to ±18V
Product Applications
● BATTERY POWERED SYSTEMS
● PORTABLE EQUIPMENT
● PCMCIA CARDS
● BATTERY PACKS AND POWER SUPPLIES
● CONSUMER PRODUCTS
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-OPA2244UA |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | MicroAmplifier™ |
| Packaging | Tube |
| Part Status | Obsolete |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 0.1V/µs |
| Gain Bandwidth Product | 430 kHz |
| Current - Input Bias | 10 nA |
| Voltage - Input Offset | 700 µV |
| Current - Supply | 40µA (x2 Channels) |
| Current - Output / Channel | 25 mA |
| Voltage - Supply Span (Min) | 2.2 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | OPA2244 |

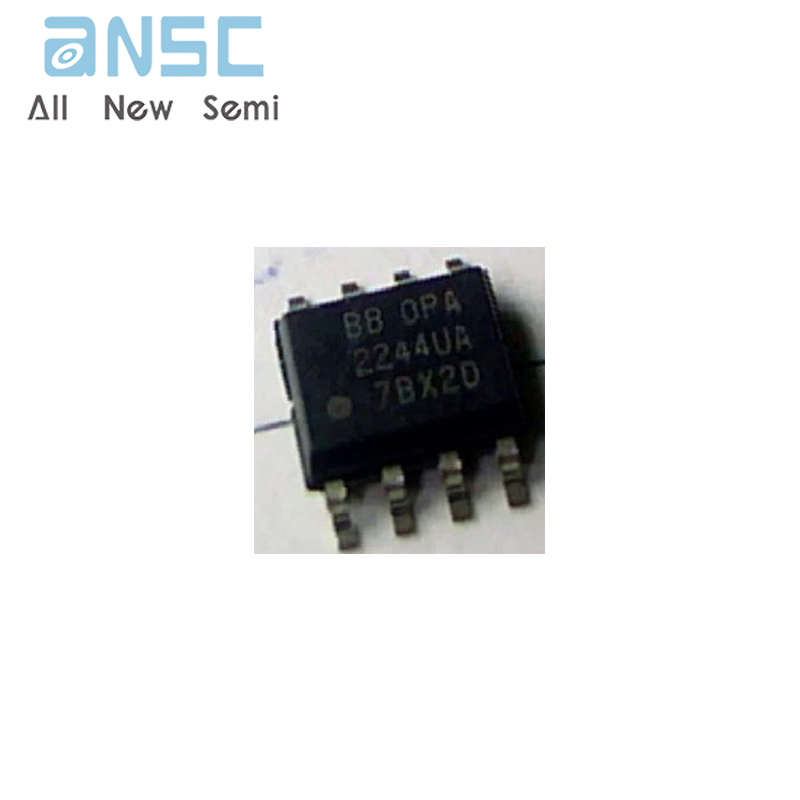

Product Photos
