Spot sales of LM833MM LM833-N Dual Audio Operational Amplifier MSOP-8
Manufacturer Product Number
LM833MM
Description
LM833MM LM833-N Dual Audio Operational Amplifier MSOP-8
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The LM833-N is a dual general purpose operational amplifier designed with particular emphasis on performance in audio systems.
This dual amplifier IC utilizes new circuit and processing techniques to deliver low noise, high speed and wide bandwidth without increasing external components or decreasing stability. The LM833-N is internally compensated for all closed loop gains and is therefore optimized for all preamp and high level stages in PCM and HiFi systems.
The LM833-N is pin-for-pin compatible with industry standard dual operational amplifiers.
Product Features
• Wide Dynamic Range: >140dB
• Low Input Noise Voltage: 4.5nV/√Hz
• High Slew Rate: 7 V/μs (typ); 5V/μs (Min)
• High Gain Bandwidth: 15MHz (typ); 10MHz (Min)
• Wide Power Bandwidth: 120KHz
• Low Distortion: 0.002 percent
• Low Offset Voltage: 0.3mV
• Large Phase Margin: 60°
• Available in 8 Pin VSSOP Package
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-LM833MM |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Amplifier Type | Audio |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 7V/µs |
| Gain Bandwidth Product | 15 MHz |
| Current - Input Bias | 500 nA |
| Voltage - Input Offset | 300 µV |
| Current - Supply | 5mA (x2 Channels) |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 30 V |
| Voltage - Supply Span (Max) | 30 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | LM833 |

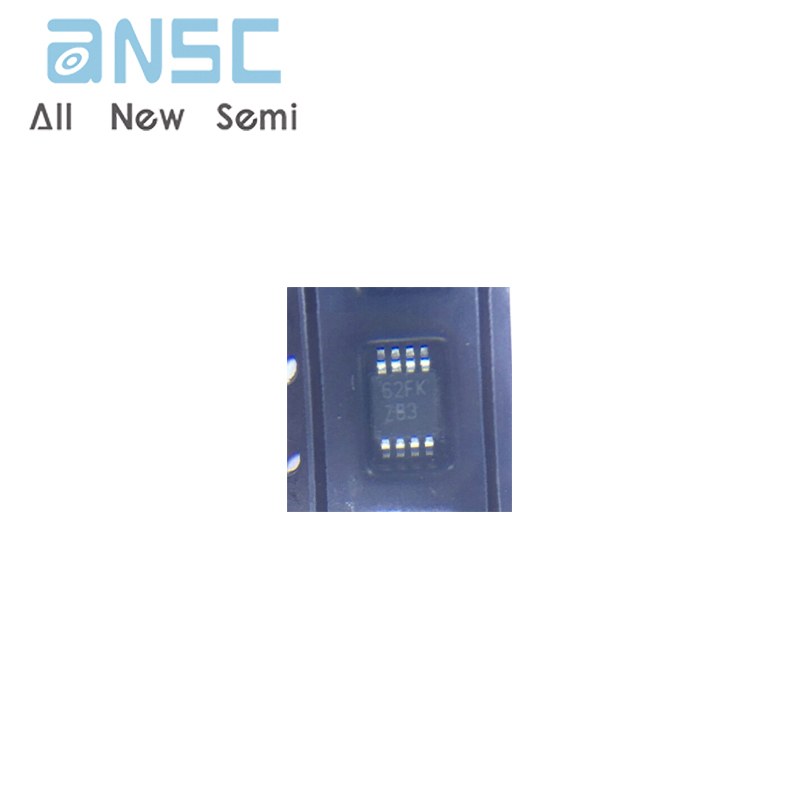

Product Photos
For more product information, please download the PDF
