Product Descriptions

The AD8074/AD8075 are high-speed triple video buffers withG = +1 and +2 respectively . They have a –3 dB full signal bandwidth in excess of 450 MHz, along with slew rates in excess of1400 V/µs . With better than –80 dB of all hostile crosstalk and90 dB isolation, they are useful in many high-speed applications . The differential gain and differential phase error are 0.01%and 0.01°. Gain flatness of 0.1 dB up to 50 MHz makes theAD8074/AD8075 ideal for RGB buffering or driving . Theyconsume less than 30 mA on a ±5 V supply .

Both devices offer a high-speed disable feature that allows theoutputs to be put into a high impedance state . This allows thebuilding of larger input arrays while minimizing“OFF” channel output loading . The AD8074/AD8075 are offered in a16-lead TSSOP package .

Product Features

Dual Supply 5 V

High-Speed Fully Buffered Inputs and Outputs

600 MHz Bandwidth (–3 dB) 200 mV p-p

500 MHz Bandwidth (–3 dB) 2 V p-p

1600 V/s Slew Rate, G = +1

1350 V/s Slew Rate, G = +2

Fast Settling Time: 4 ns

Low Supply Current: <30 mA

Excellent Video Specifications (RL = 150 ):

Gain Flatness of 0.1 dB to 50 MHz

0.01% Differential Gain Error

0.01 Differential Phase Error

“All Hostile“ Crosstalk

–80 dB @ 10 MHz

–50 dB @ 100 MHz

High“OFF” Isolation of 90 dB @ 10 MHz

Low Cost

Fast Output Disable Feature

Product Applications

RGB Buffer in LCD and Plasma Displays

RGB Driver

Video Routers

Product Specification

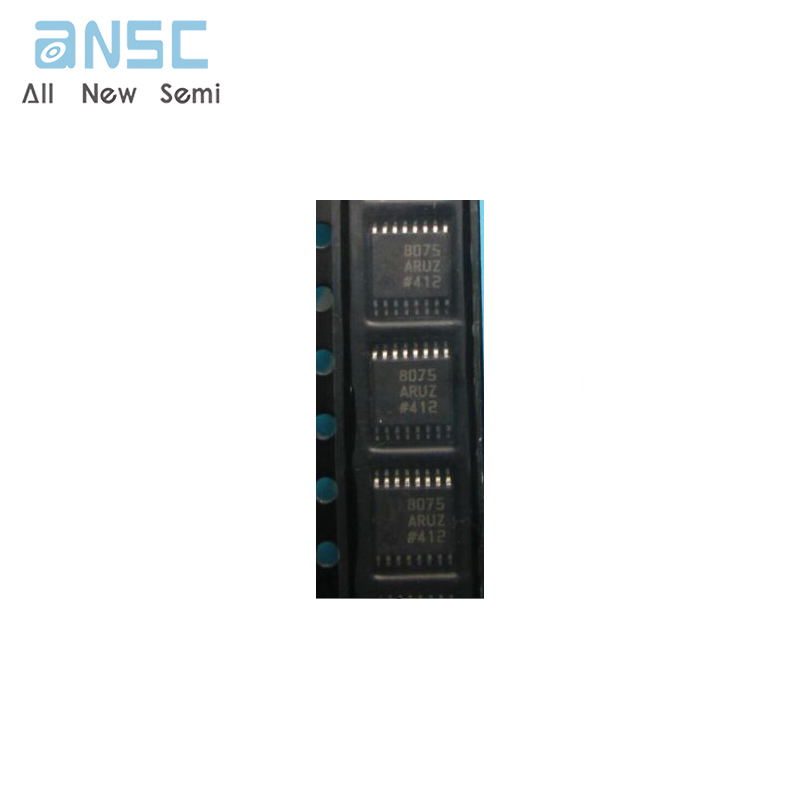

Product Photos
