Hot sale Original LM111J-8 IC Comparator Standard (General Purpose) DTL, MOS, Open-Collector, Open-Emitter
Manufacturer Product Number
LM111J-8
Description
LM111J-8 IC Comparator Standard (General Purpose) DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL 8-CDIP
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Overview
A convenient transport package is provided in 8-CDIP (0.300, 7.62mm) .The comparator has a DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL output.The part will be shipped by Tube .There are 8 terminals on the comparator.A comparator is capable of completing a variety of demanding tasks when supplied with 15V voltage.Electronic comparator is possible to classify the chip as General Purpose .As a result, it contains 8 pins.Electronic comparator is recommended that you mount the device using type Through Hole .Electronic comparator is recommended that the operating temperature be set to -55°C~125°C to prevent malfunctions.The comparator is equipped with 8 pins.Search LM111 to find more pin-to-pin solutions.There is a quiescent current of 5.1mA in this comparator.The PCB or other board has a Through Hole for mounting.Electronic comparator is recommended that the nominal supply current be 5.1mA in order to use the device normally.Electronic comparator is possible for the comparator to malfunction when the current supply exceeds 6mA .A maximum current of 100nA can be supplied to the device.Comparator electronics is apparent from the voltage formula that the voltage gain for the part is 106.02dB .
Product Features
DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL output capability
General Purpose IC
Operates under -55°C~125°C
Quiescent Current: 5.1mA
Voltage Gain: 106.02dB
Product Applications
- Battery management and protection
- Current and voltage sensing
- Analog front end
- Power management
- Point of load regulators
- DC/DC and AC/DC power supplies
- System control and monitoring
- Wearable Devices
- Mobile Phones and Tablets
- Battery-Powered Electronics
Product Attributes
|
TYPE |
DESCRIPTION |
|---|---|
|
ANSC PART# |
ANSC - LM111J-8 |
|
Category |
Integrated Circuits (ICs) Linear Comparators |
|
Manufacturer |
- |
|
Series |
- |
|
Packaging |
Tube |
|
Part Status |
Active |
|
Type |
General Purpose |
|
Number of Elements |
1 |
|
Output Type |
DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL |
|
Voltage - Supply, Single/Dual (±) |
5V ~ 36V, ±2.5V ~ 18V |
|
Voltage - Input Offset (Max) |
3mV @ ±15V |
|
Current - Input Bias (Max) |
0.1µA @ ±15V |
|
Current - Output (Typ) |
- |
|
Current - Quiescent (Max) |
6mA |
|
CMRR, PSRR (Typ) |
- |
|
Propagation Delay (Max) |
- |
|
Hysteresis |
- |
|
Operating Temperature |
-55°C ~ 125°C |
|
Package / Case |
8-CDIP (0.300", 7.62mm) |
|
Mounting Type |
Through Hole |
|
Supplier Device Package |
8-CDIP |
|
Base Product Number |
LM111 |

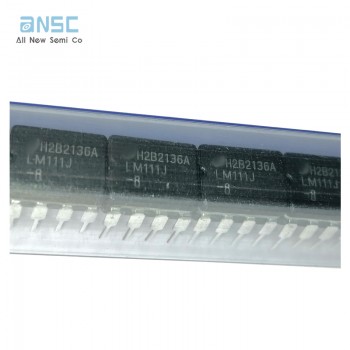

Actual image of the product
Product datasheet
For more information, please download
