Hot sale Original LM118H/883 Military-grade single 40-V 15-MHz operational amplifier with QML certification 8-TO-99
Manufacturer Product Number
LM118H/883
Description
LM118H/883 Military-grade single 40-V 15-MHz operational amplifier with QML certification 8-TO-99
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Overview
There is a TO-99 case package that contains the instrumentation amplifiers. The instrumentation amplifier in this picture is of the OPERATIONAL AMPLIFIER-type. We are approaching the 8h termination of the year. In total, there are 8 pins on this op amp ic. This linear amplifier should be powered by an 15V battery. 8 pins are located on the operational amplifiers. The input offset voltage is 4mV. It is recommended to keep the voltage gain at 93.98dB at all times. On the buffer amps, there are 1 channels that can be used. For this linear amplifier to work, the temperature should not be below -55°C. In order to avoid damage to the product, operational amplifiers should only be used at temperatures below 125°C. This linear amplifier pack is based on the TRAY axis. In order for this electronic part to be conducted successfully, you should use a dual supply voltage of 20V.
Product Features
8 Pins
supply voltage of 15V
93.98dB voltage gain
Product Applications
LM118H/883 Instrumentational OP Amps applications.
-
Exponential operation circuits
-
Multiplication circuits
-
Division circuits
-
Precision measurement
-
Power control
-
Information processing
-
Weak signal detection
-
Signal amplification
-
Signal filtering
-
Signal operation
Product Description
| Type# | Description |
| ANSC PART# | ANSC- LM118H/883 |
| Part Package Code | TO-99 |
| Package Description | Can-8 |
| Pin Count | 8 |
| Amplifier Type | Operational Amplifier |
| Architecture | Voltage-Feedback |
| Average Bias Current-Max (IIB) | 0.25 µA |
| Bias Current-Max (IIB) @25C | 0.25 µA |
| Common-mode Reject Ratio-Min | 80 Db |
| Common-mode Reject Ratio-Nom | 100 Db |
| Frequency Compensation | No |
| Input Offset Current-Max (IIO) | 0.05 µA |
| Input Offset Voltage-Max | 4000 µV |
| JESD-30 Code | O-MBCY-W8 |
| Length | 9.08 Mm |
| Low-Bias | No |
| Low-Offset | No |
| Micropower | No |
| Moisture Sensitivity Level | 1 |
| Neg Supply Voltage Limit-Max | -20 V |
| Neg Supply Voltage-Nom (Vsup) | -15 V |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Package Body Material | Metal |
| Package Code | TO-5 |
| Package Equivalence Code | CAN8,.2 |
| Package Shape | Round |
| Package Style | Cylindrical |
| Packing Method | Tray |
| Power | No |
| Programmable Power | No |
| Qualification Status | Not Qualified |
| Screening Level | Mil-Std-883 |
| Seated Height-Max | 5.72 Mm |
| Slew Rate-Min | 50 V/Us |
| Slew Rate-Nom | 70 V/Us |
| Supply Current-Max | 8 Ma |
| Supply Voltage Limit-Max | 20 V |
| Supply Voltage-Nom (Vsup) | 15 V |
| Surface Mount | No |
| Technology | Bipolar |
| Temperature Grade | Military |
| Terminal Form | Wire |
| Terminal Pitch | 2.54 Mm |
| Terminal Position | Bottom |
| Unity Gain BW-Nom | 15000 |
| Voltage Gain-Min | 25000 |
| Wideband | No |
| Width | 9.08 Mm |

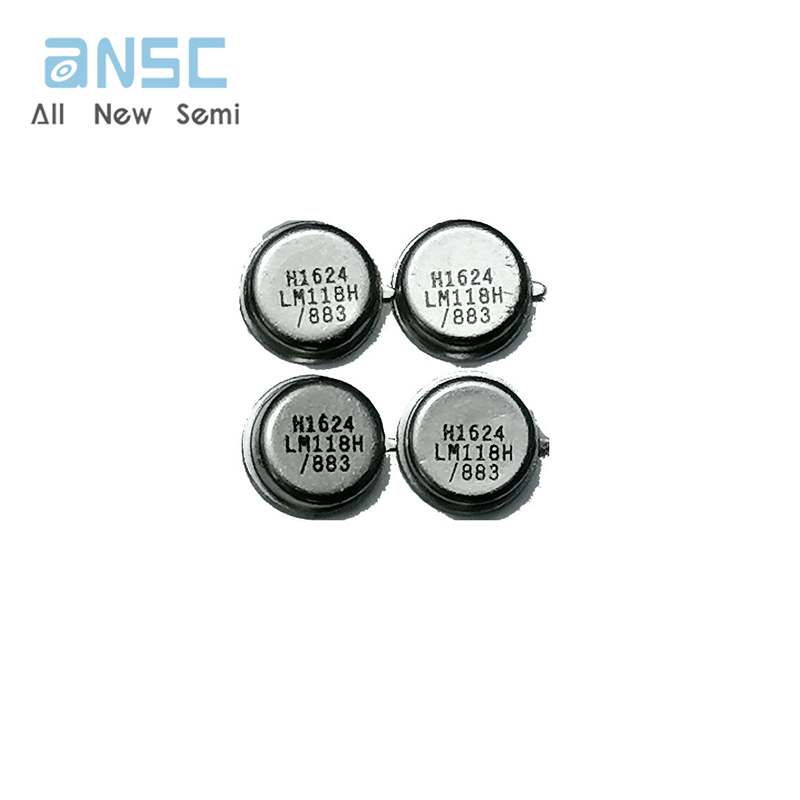

Actual image of the product

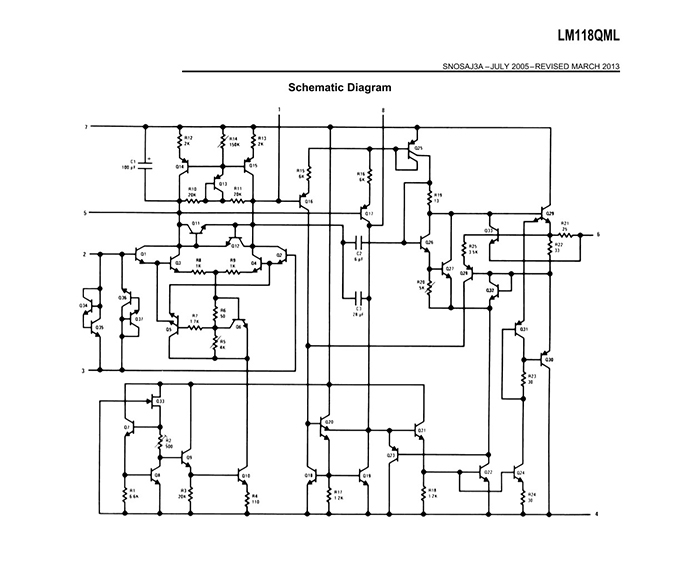

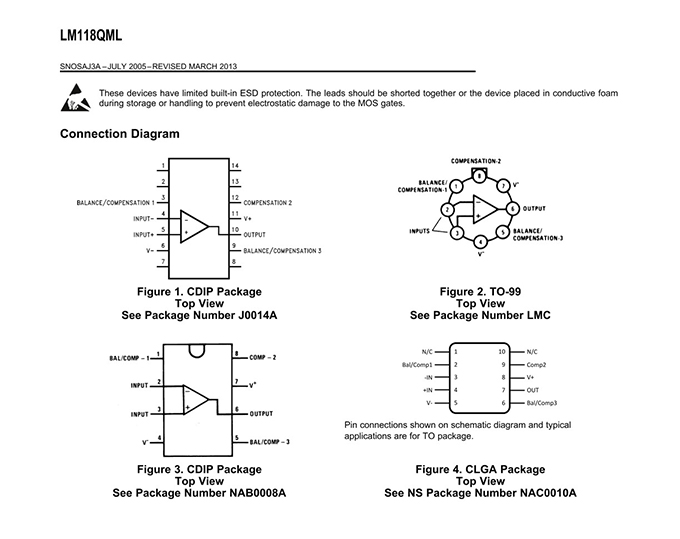

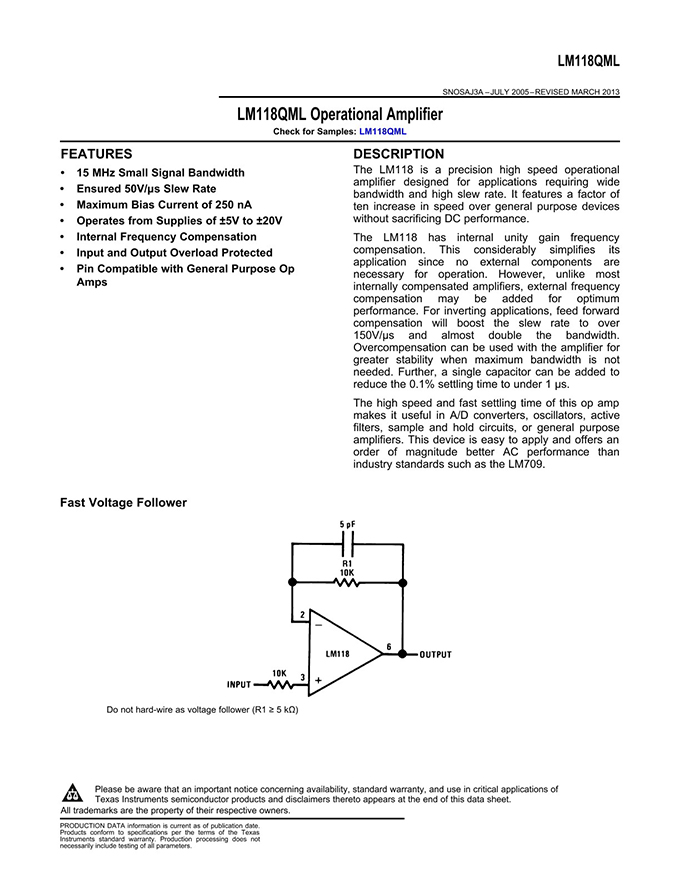

Product datasheet
For more information, please download
