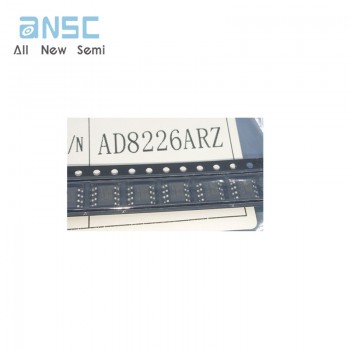

Hot sale original electronics AD8226ARZ Instrumentation Amplifier SMD/SMT 1 Channel - 40 C SOIC-8 AD8226 100 uV
Manufacturer Product Number
AD8226ARZ
Description
Instrumentation Amplifier SMD/SMT 1 Channel - 40 C SOIC-8 AD8226 100 uV
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Description
The AD8226 is a low-cost instrumentation amplifier with a wide supply range that requires only one external resistor to set any gain between 1 and 1000. The AD8226 is intended to work with a wide range of signal voltages. The signal can fully utilize the supply rails due to its wide input range and rail-to-rail output.
Features
Gain set with 1 external resistor
Gain range: 1 to 1000
Inputs protected beyond supplies
Very wide power supply range
Input voltage goes below ground
Single supply: 2.2 V to 36 V
Dual supplies: ±1.35 V to ±18 V
Bandwidth (G = 1): 1.5 MHz
Typical supply current: 350 μA
CMRR (G = 1): 90 dB minimum for BR models
Input noise: 22 nV/√Hz
Specified temperature: −40°C to +125°C
8-lead SOIC and MSOP packages
Application
Industrial process controls
Portable data acquisition
Multichannel systems
Bridge amplifiers
Medical instrumentation
Product Description
| Type | Description |
| ANSC PART# | ANSC - AD8226ARZ |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Amplifier Type | Instrumentation |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.6V/µs |
| -3db Bandwidth | 1.5 MHz |
| Current - Input Bias | 20 nA |
| Voltage - Input Offset | 100 µV |
| Current - Supply | 350µA |
| Current - Output / Channel | 13 mA |
| Voltage - Supply Span (Min) | 2.2 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AD8226 |
Product Photos
Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
Hot Selling Product Recommendation
| Model | brand | quantity | package |
| BZX384-C5V1 | NXP | 6000 | SOD323 |
| SN74LVC1G123DCUR | TI | 2500 | VSSOP8 |
| V33MLA1206H | Littelfuse | 1000 | SMD1206 |
| FDS8958A | FAIRCHILD | 900 | SOP8 |
| MC2904DR2G | ON | 775 | SOP-8 |
| ICL3232IVZ | INTERSIL | 152 | TSSOP16 |
| IAM-82008-TR1 | AGILENT | 150 | SOP8 |
| NJM2882F03 | JRC | 100 | SOT23-5 |
| LP2988AIMX-3.0 | NSC | 22500 | SOP8 |
| TUSB522PRGER | TI | 52000 | QFN |
| NJM3717FM2 | JRC | 10500 | PLCC28 |
| OPA4322AIPWR | TI | 8500 | TSSOP14 |
| AT45DB321D-SU | ATMEL | 4900 | SOP8 |
| FDS8958A | FAIRCHILD | 3888 | SOP8 |
| DS2502P-500 | DALLAS | 3575 | SON-6 |
| PCA9500PW | NXP | 2500 | TSSOP16 |
| 20645-040T-01 | I-PEX | 1926 | CONN |
| SUD50P04-09L-E3 | VISHAY | 1670 | TO-252 |
| TL1431CPWR | TI | 1344 | TSSOP8 |
| PSMN3R0-30YLD | NXP | 980 | SOT669 |
| SG-615L14.7456MHZ | Epson | 945 | CRYSTAL OSCILLATOR |
| IRF7311TRPBF | IR | 942 | SOP-8 |
| MIC4827YMM | MICREL | 860 | MSOP-8 |
| S9S08RNA16M | FREESCALE | 759 | QFP32 |
| AD9884AKS-100 | ADI | 330 | QFP |
| ST4SI2M0020TPIFW | ST | 122 | DFN |
| MIC2505-2YM | MICROCHIP | 3525 | SOP8 |
| SSM3J351R,LXGF | TOSHIBA | 12000 | SOT23 |
| PBY160808T-601Y-N | CHILISIN | 8000 | SMD |
| R820T | RAFAEL | 200 | QFN-24 |
| SN74HCT573DWR | TI | 386 | SOP |
| NVTFS5116PLTAG | ON | 90 | WDFN-8 |
| ATXMEGA32A4U-ANR | MICROCHIP | 82000 | QFP44 |
| PIC16F18425-I/ST | MICROCHIP | 5260 | TSSOP14 |
| 80HCPS1848CRMI | IDT | 119 | BGA |
| BCM85110IFSBG | BROADCOM | 100 | BGA |
| WG82574IT S LBAC | INTEL | 78 | QFN64 |
| XC7VX1140T-1FLG1930I | XILINX | 60 | BGA |
| LMH0384SQE/NOPB | TI | 24 | WQFN-16 |
| XCVU19P-2FSVB3824E | XILINX | 10 | BGA |
