Hot-selling and scarce AD8052ARMZ Low Cost, High Speed, Rail-to-Rail Amplifiers MSOP8 spot stock
Manufacturer Product Number
AD8052ARMZ
Description
AD8052ARMZ Low Cost, High Speed, Rail-to-Rail Amplifiers MSOP8 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The AD8051 (single), AD8052 (dual), and AD8054 (quad) arelow cost, high speed,voltage feedback amplifiers . The amplifiersoperate on +3 V, +5 V, or ±5 V supplies at low supply current .They have true single-supply capability with an input voltagerange extending 200 mV below the negative rail and within 1 Vof the positive rail .
Despite their low cost, the AD8051/AD8052/AD8054 provideexcellent overall performance and versatility. The output voltageswings to within 25 mV of each rail,providing maximum outputdynamic range with excellent overdrive recovery.
The AD8051/AD8052/AD8054 are well suited for videoelectronics,cameras,video switchers,or any high speed portableequipment . Low distortion and fast settling make them ideal foractive filter applications .
The AD8051/AD8052 in the 8-lead SOIC, the AD8052 in theMSOP,the AD8054 in the 14-lead SOIC,and the 14-lead TSSOPpackages are available in the extended temperature range of−40°C to +125°C .
Product Features
High speed and fast settling on 5 V
110 MHz, −3 dB bandwidth (G = +1) (AD8051/AD8052)
150 MHz, −3 dB bandwidth (G = +1) (AD8054)
145 V/μs slew rate
50 ns settling time to 0.1%
Single-supply operation
Output swings to within 25 mV of either rail
Input voltage range: −0.2 V to +4 V;VS = 5 V
Video specifications (G = +2)
0.1 dB gain flatness: 20 MHz; RL = 150 Ω
Differential gain/phase: 0.03%/0.03°
Low distortion
−80 dBc total harmonic @ 1 MHz, RL = 100 Ω
Outstanding load drive capability
Drives 45 mA, 0.5 V from supply rails (AD8051/AD8052)
Drives 50 pF capacitive load (G = +1) (AD8051/AD8052)
Low power: 2.75 mA/amplifier (AD8054)
Low power: 4.4 mA/amplifier (AD8051/AD8052)
Product Applications
Active filters
Analog-to-digital drivers
Clock buffer
Consumer video
Professional cameras
CCD imaging systems
CD/DVD ROMs
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AD8052ARMZ |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Packaging | Tube |
| Part Status | Active |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 170V/µs |
| Gain Bandwidth Product | 80 MHz |
| -3db Bandwidth | 110 MHz |
| Current - Input Bias | 1.4 µA |
| Voltage - Input Offset | 1.7 mV |
| Current - Supply | 4.8mA (x2 Channels) |
| Current - Output / Channel | 45 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 12 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Base Product Number | AD8052 |

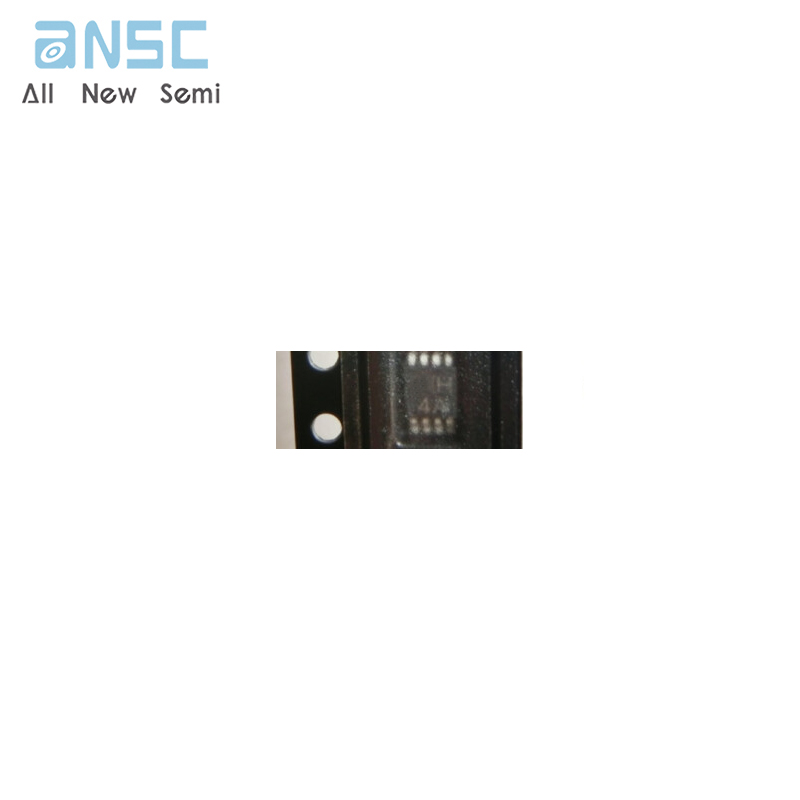

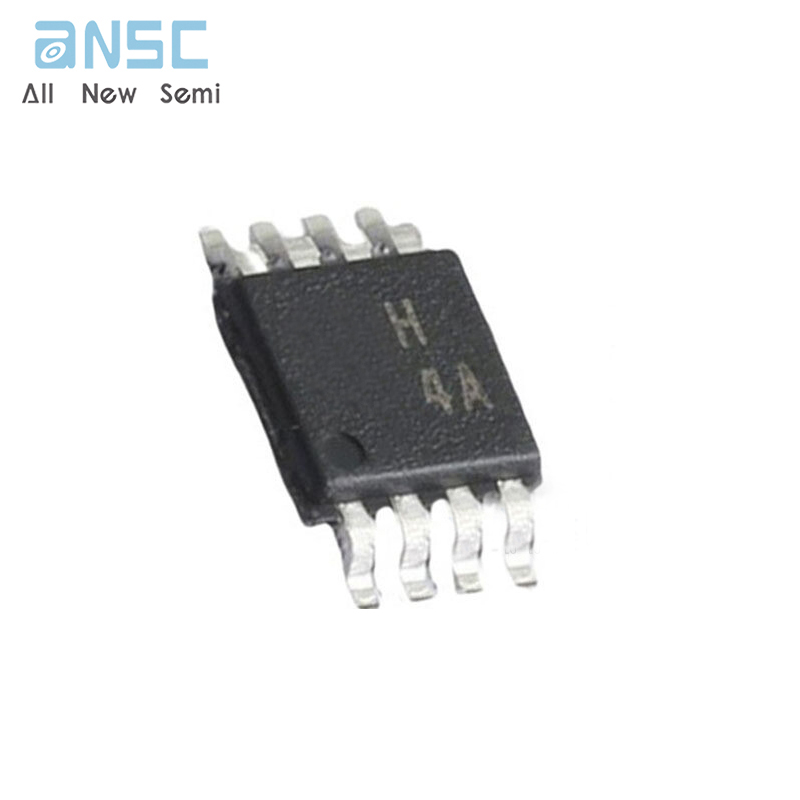

Product Photos
For more product information, please download the PDF
