Hot sale original electronics LM158J Amplifiers IC OPAMP GP 2 CIRCUIT 8CDIP General Purpose Amplifier 2 Circuit 8-CDIP
Manufacturer Product Number
LM158J
Description
LM158J Amplifiers IC OPAMP GP 2 CIRCUIT 8CDIP General Purpose Amplifier 2 Circuit 8-CDIP
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description/ordering information These devices consist of two independent, high-gain, frequency-compensated operational amplifiers designed to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3V to 32V (3V to 26V for the LM2904), and VCC is at least 1.5V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage. Applications include transducer amplifiers, dc amplification blocks, and all the conventional operational amplifier circuits that now be implemented more easily in single-supply-voltage systems. For example, these devices can be operated directly from the standard 5-V supply used in digital systems and easily can provide the required interface electronics without additional ±5-V supplies. ● Wide Supply Range: - Single Supply…3V to 32V (26V for LM2904) - or Dual Supplies …±1.5V to ±16V (±13V for LM2904) ● Low Supply-Current Drain, Independent of Supply Voltage… 0.7mA Typ ● Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground ● Low Input Bias and Offset Parameters: -Input Offset Voltage…3mV Typ A versions…2mV Typ -Input Offset Current…2nA Typ -Input Bias Current…20nA Typ A Versions…15nA Typ ● Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage…32V (26V for LM2904) ● Open-Loop Differential Voltage Amplification…100 V/mV Typ ● Internal Frequency Compensation |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - LM158J |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | - |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 40 nA |
| Voltage - Input Offset | 2 mV |
| Current - Supply | 1mA |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 32 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CDIP |
| Base Product Number | LM158 |

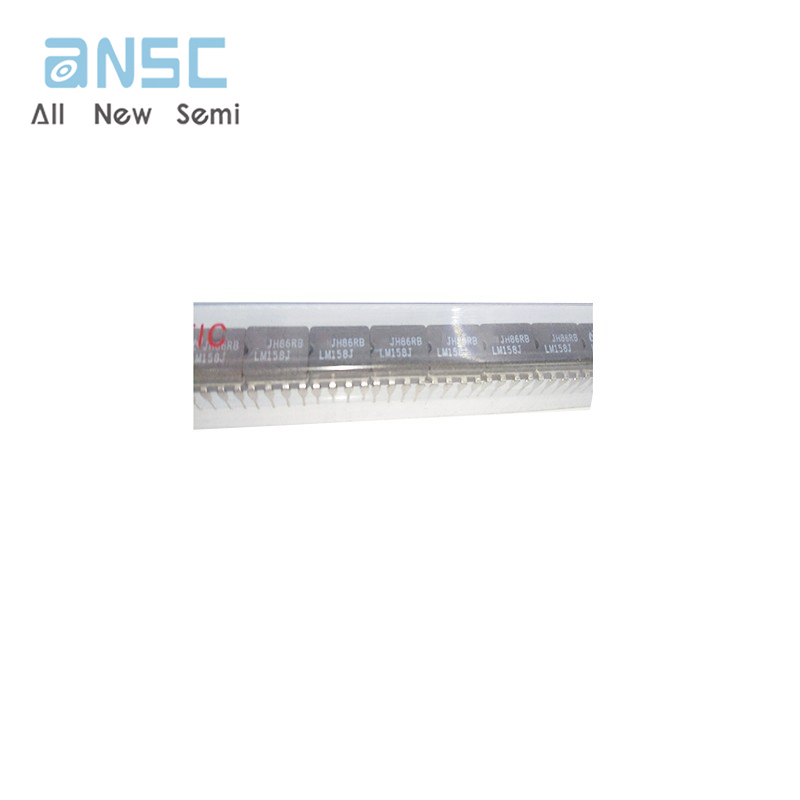

Actual image of the product

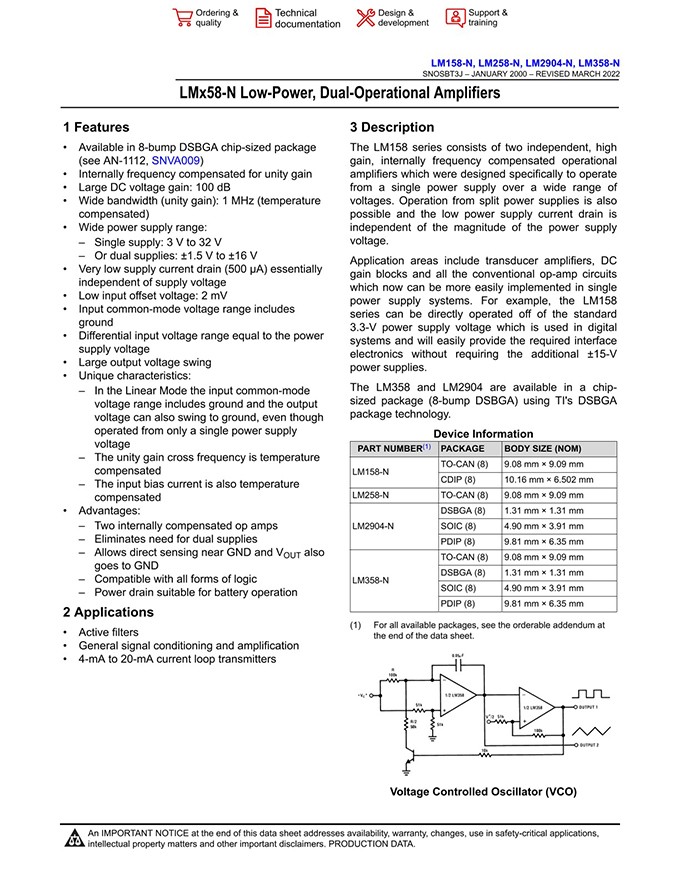

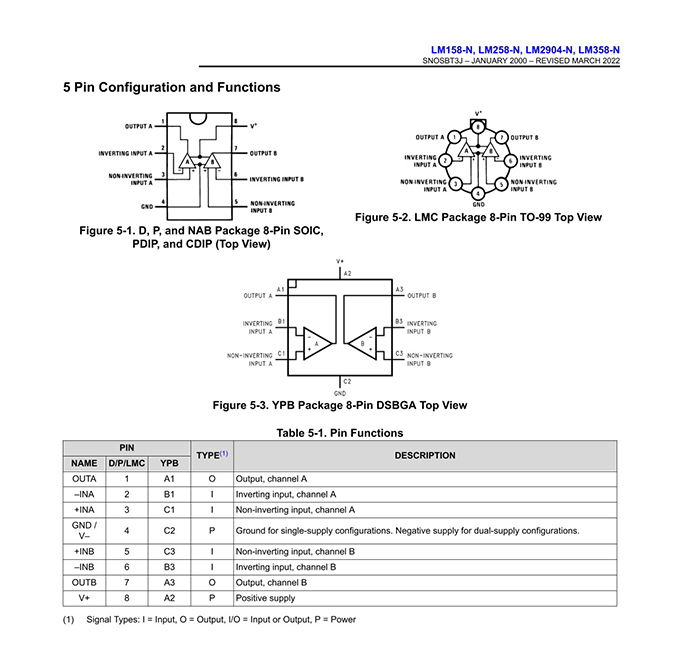

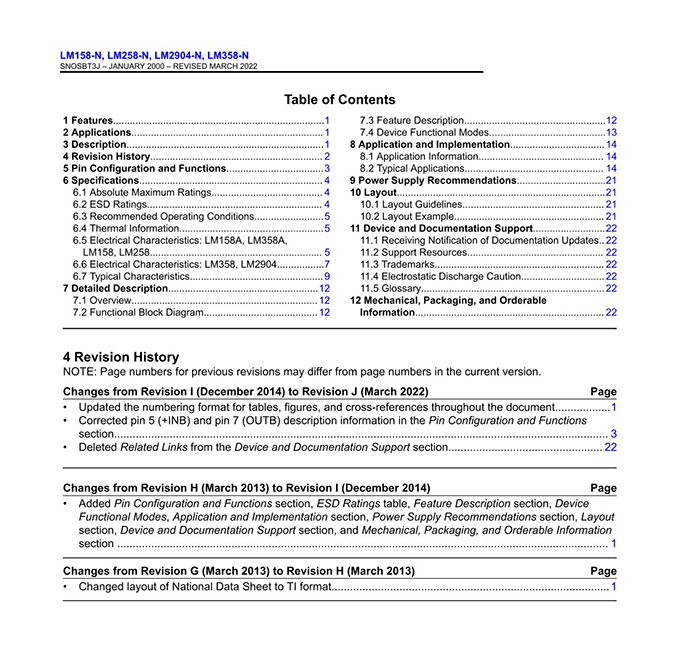

Product datasheet
For more information, please download
