Hot sale original LM124J Amplifiers IC Quad, 30-V, 1.2-MHz operational amplifier with -55°C to 125°C operation
Manufacturer
Manufacturer Product Number
LM124J
Description
LM124J Amplifiers IC Quad, 30-V, 1.2-MHz operational amplifier with -55°C to 125°C operation
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| DESCRIPTION The LM124/SA534/LM2902 series consists of four independent, high-gain, internally frequency-compensated operational amplifiers designed specifically to operate from a single power supply over a wide range of voltages. FEATURES • Internally frequency-compensated for unity gain • Large DC voltage gain: 100dB • Wide bandwidth (unity gain): 1MHz (temperature-compensated) • Wide power supply range Single supply: 3VDC to 30VDC or dual supplies: ±1.5VDC to ±15VDC • Very low supply current drain: essentially independent of supply voltage (1mW/op amp at +5VDC) • Low input biasing current: 45nADC (temperature-compensated) • Low input offset voltage: 2mVDC and offset current: 5nADC • Differential input voltage range equal to the power supply voltage • Large output voltage: 0VDC to VCC-1.5VDC swing |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- LM124J |
| Part Package Code | DIP |
| Pin Count | 14 |
| Reach Compliance Code | Not Compliant |
| Date Of Intro | 1976/11/6 |
| Amplifier Type | Operational Amplifier |
| Architecture | Voltage-Feedback |
| Average Bias Current-Max (IIB) | 0.3 µA |
| Bias Current-Max (IIB) @25C | 0.15 µA |
| Common-mode Reject Ratio-Min | 70 Db |
| Common-mode Reject Ratio-Nom | 80 Db |
| Frequency Compensation | Yes |
| Input Offset Current-Max (IIO) | 0.1 µA |
| Input Offset Voltage-Max | 5000 µV |
| Length | 19.545 Mm |
| Low-Bias | Yes |
| Low-Offset | No |
| Micropower | Yes |
| Number of Functions | 4 |
| Number of Terminals | 14 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Package Body Material | Ceramic, Metal-Sealed Cofired |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | Rectangular |
| Package Style | In-Line |
| Packing Method | Tube |
| Power | No |
| Programmable Power | No |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 Mm |
| Slew Rate-Nom | 0.5 V/Us |
| Supply Current-Max | 3 Ma |
| Supply Voltage Limit-Max | 32 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | No |
| Technology | Bipolar |
| Temperature Grade | Military |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | Through-Hole |
| Terminal Pitch | 2.54 Mm |
| Terminal Position | Dual |
| Unity Gain BW-Nom | 1200 |
| Voltage Gain-Min | 50000 |
| Wideband | No |
| Width | 7.62 Mm |

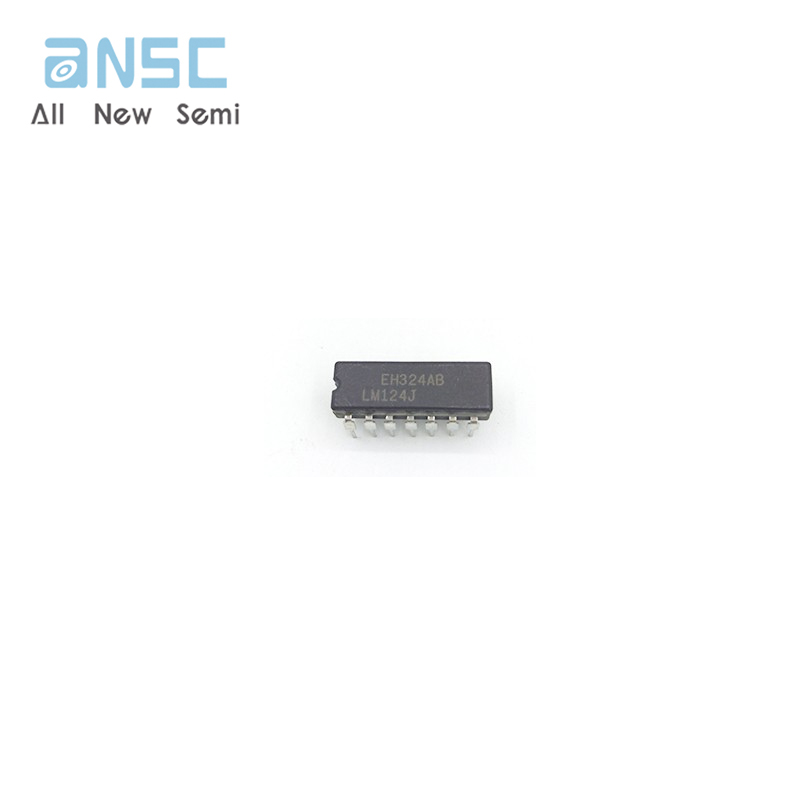

Actual image of the product

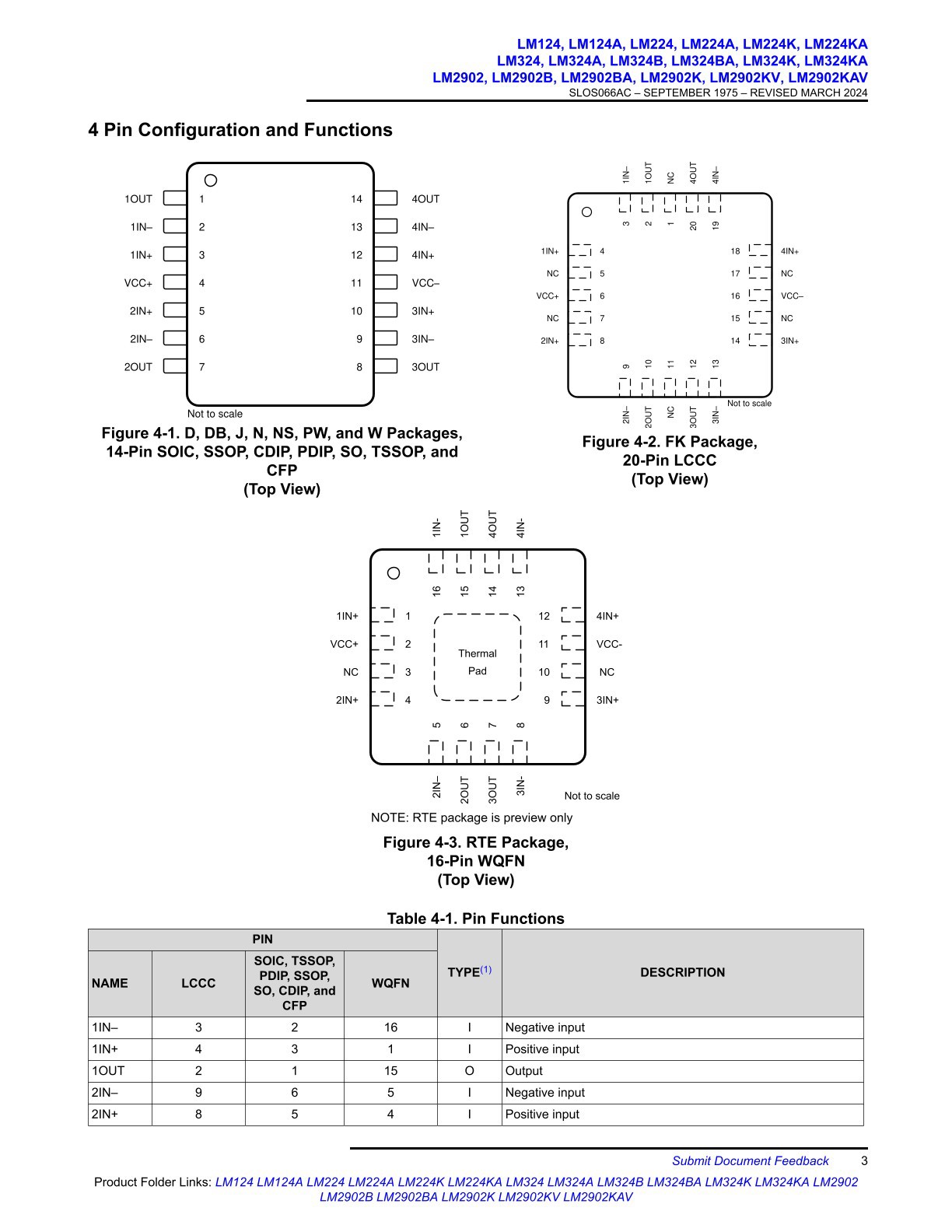

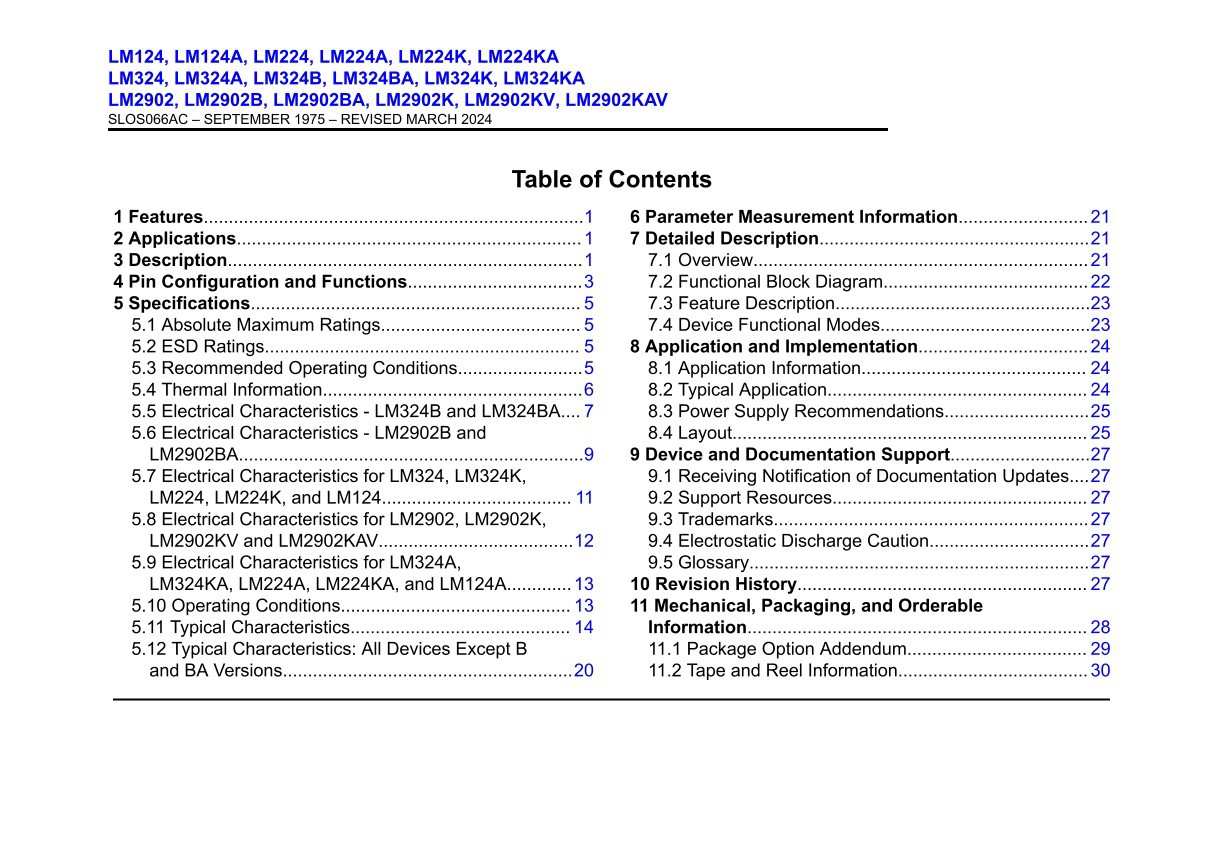

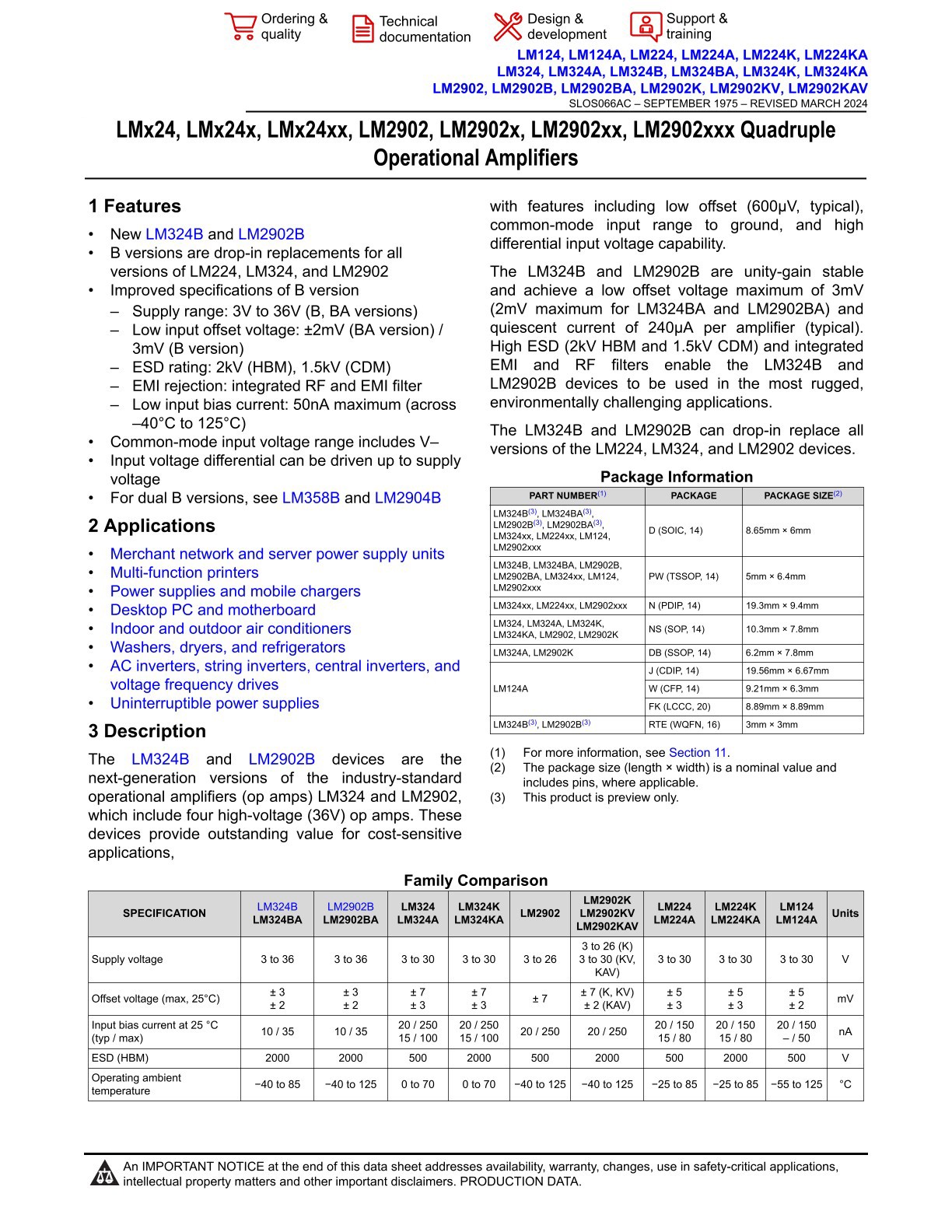

Product datasheet
For more information, please download
