Hot-selling and scarce LH0042H Low Cost FET Op Amp CAN8 spot stock

Product Descriptions

The LH0042 is a FET input operational amplifier with veryhigh input impedance and low input currents with no com-promise in noise, common mode rejection ratio, open loopgain, or slew rate. The LH0042 is internally compensatedand is free of latch-up.

The LH0042 is specified for operation over the -55 ℃ to +125 ℃ military temperature range. The LH0042C is speci-fied for operation over the -25 ℃to +85℃ temperaturerange

The LH0042 op amp is intended to fulfill a wide variety ofapplications for process control, medical instrumentation,and other systems requiring very low input currents. TheLH0042 provides low cost high performance for such appli-cations as electrometer and photocell amplification, pico-ammeters, and high input impedance buffer.

Product Features

High open loop gain–100 dB typ

Internal compensation

Pin compatible with standard IC op amps(TO-99 package

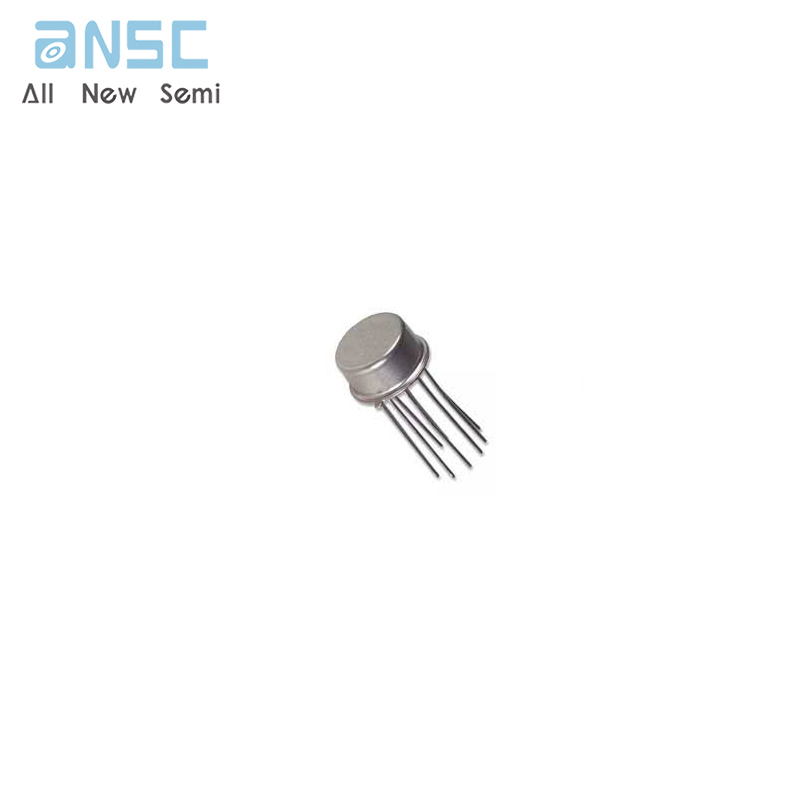

Product Photos

For more product information, please download the PDF
