Original LH2111D/883 Comparator, 2 Func, 3000uV Offset-Max, 200ns Response Time, BIPolar, CDIP16
Manufacturer Product Number
LH2111D/883
Description
LH2111D/883 Comparator, 2 Func, 3000uV Offset-Max, 200ns Response Time, BIPolar, CDIP16
Package Condition
TUBE
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| PART# | LH2111D/883 |
| Package Description | Dip-16 |
| Reach Compliance Code | Unknown |
| Amplifier Type | Comparator |
| Bias Current-Max (IIB) @25C | 0.1 µA |
| Input Offset Voltage-Max | 3000 µV |
| JESD-30 Code | R-XDIP-T16 |
| Length | 20.12 Mm |
| Neg Supply Voltage Limit-Max | -18 V |
| Neg Supply Voltage-Nom (Vsup) | -15 V |
| Number of Functions | 2 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Output Type | Open-Emitter |
| Package Body Material | Ceramic |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | Rectangular |
| Package Style | In-Line |
| Qualification Status | Not Qualified |
| Response Time-Nom | 200 Ns |
| Screening Level | 38535q/M;38534h;883b |
| Seated Height-Max | 5.08 Mm |
| Supply Current-Max | 6 Ma |
| Supply Voltage Limit-Max | 18 V |
| Supply Voltage-Nom (Vsup) | 15 V |
| Surface Mount | No |
| Technology | Bipolar |
| Temperature Grade | Military |
| Terminal Form | Through-Hole |
| Terminal Pitch | 2.54 Mm |
| Terminal Position | Dual |
| Width | 7.62 Mm |

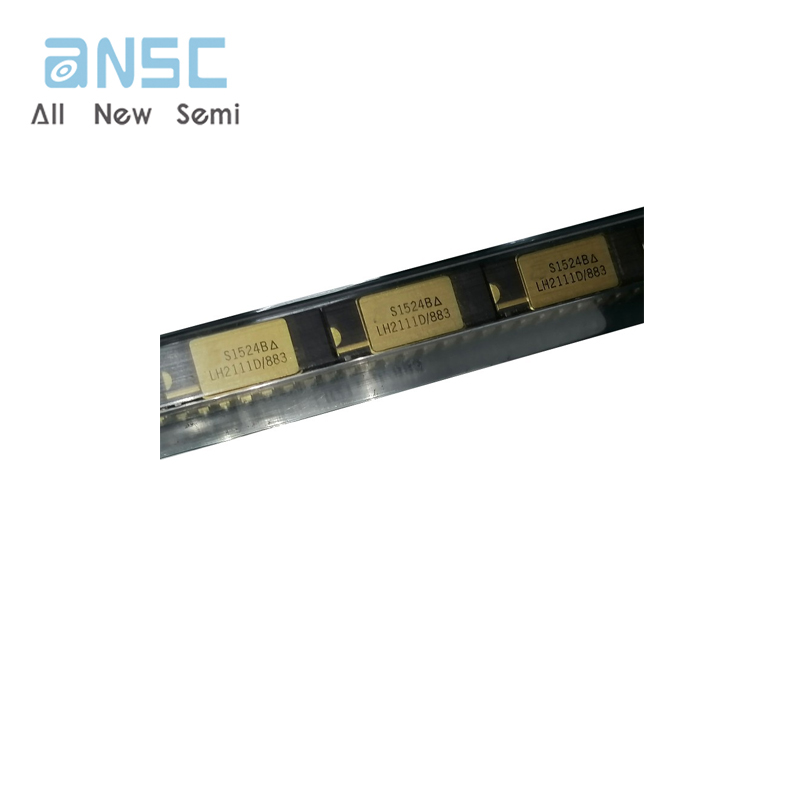

Actual image of the product
