Hot sale original LM386N-1 IC AMP CLASS AB MONO 325MW 8DIP Amplifier IC 1-Channel (Mono) Class AB 8-PDIP
Manufacturer Product Number
LM386N-1
Description
LM386N-1 IC AMP CLASS AB MONO 325MW 8DIP Amplifier IC 1-Channel (Mono) Class AB 8-PDIP
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| The LM386-1 is a power amplifier designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and apacitor between pins 1 and 8 will increase the gain to any value from 20 to 200. The inputs are ground referenced while the output automatically biases to one-half the supply voltage. The quiescent power drain is only 24 milliwatts when operating from a 6 volt supply, making the WS386M-1 ideal for battery operation |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- LM386N-1 |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Audio Amplifiers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Type | Class AB |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 325mW x 1 @ 8Ohm |
| Voltage - Supply | 4V ~ 12V |
| Features | - |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Supplier Device Package | 8-PDIP |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Base Product Number | LM386 |

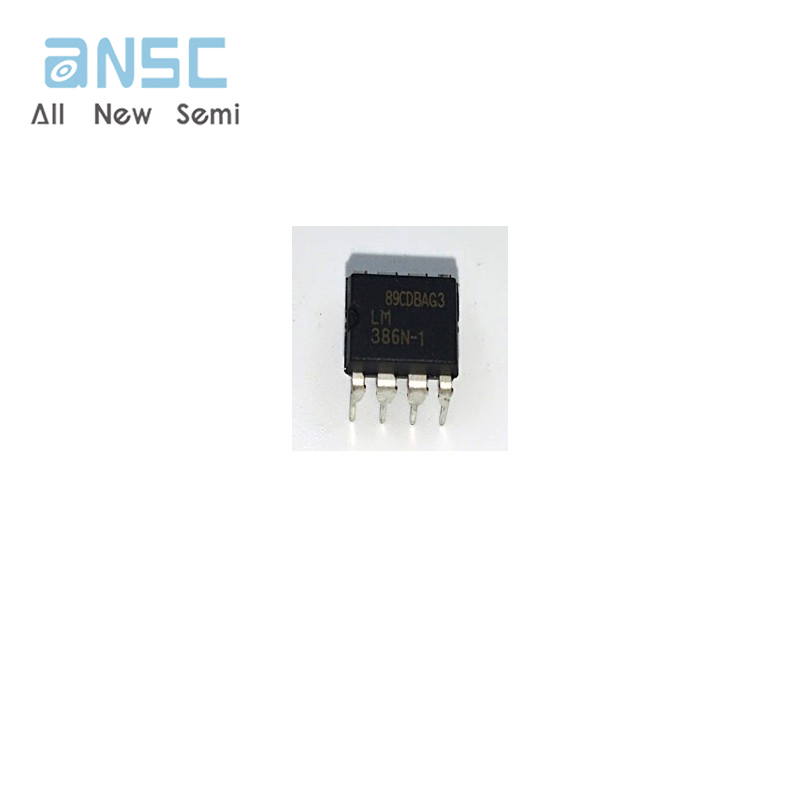

Actual image of the product

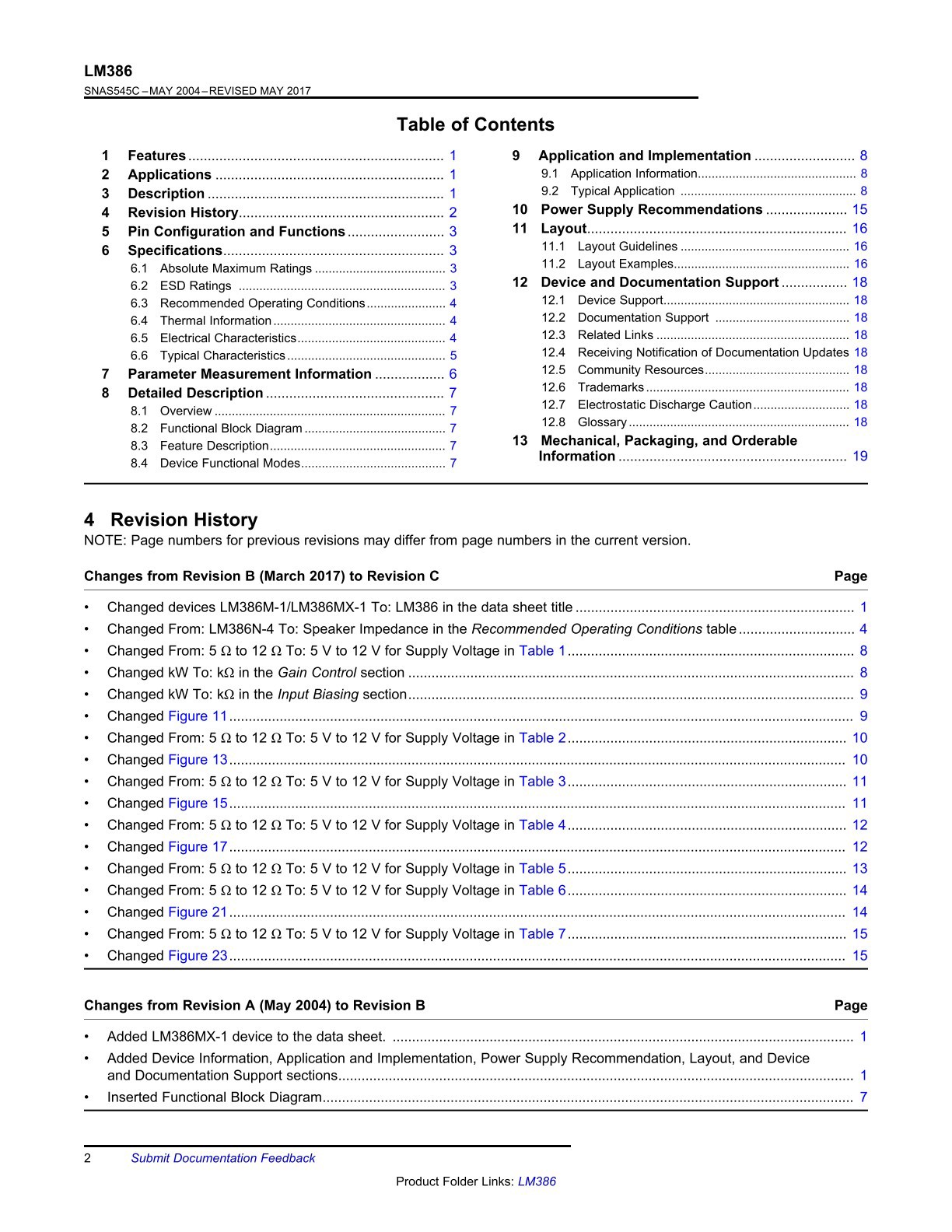

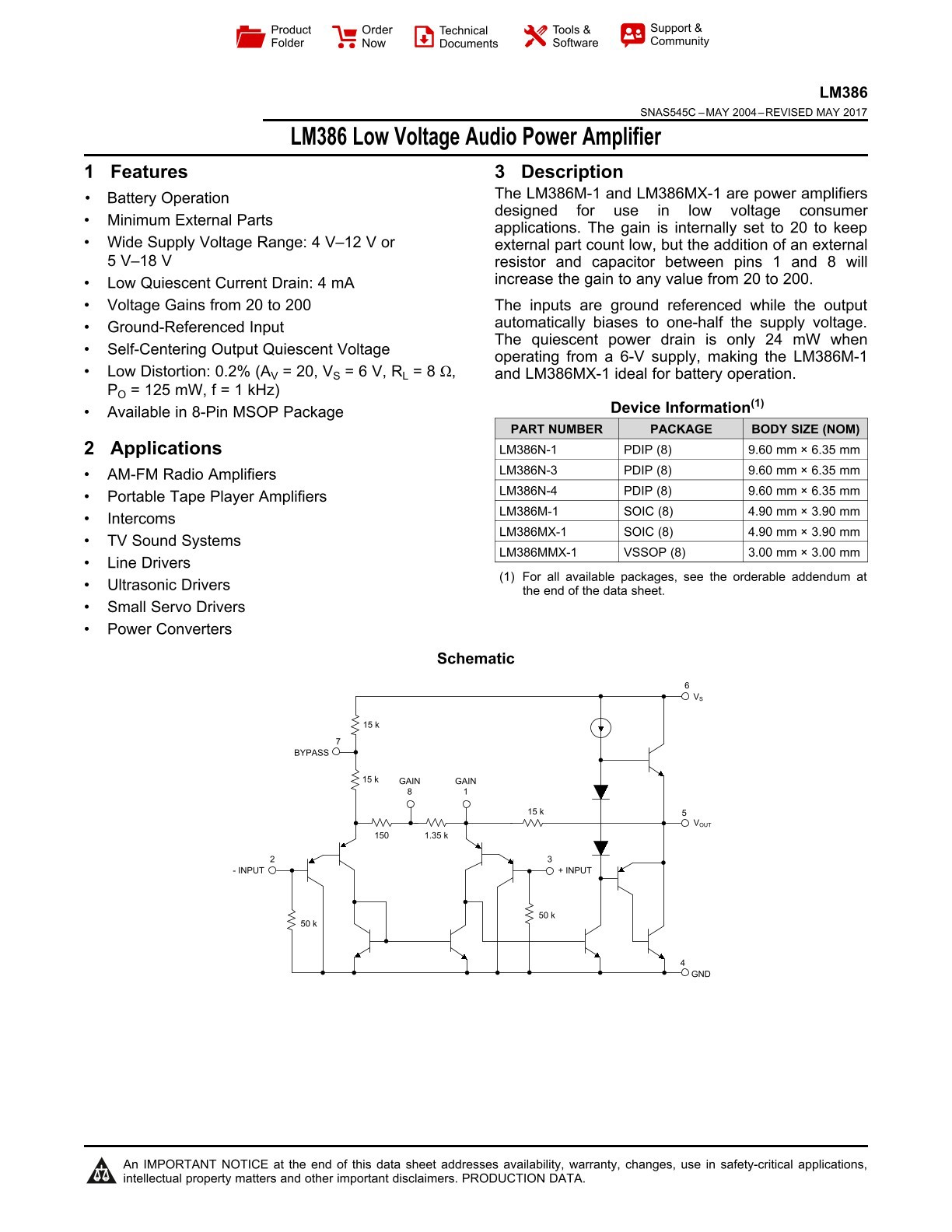

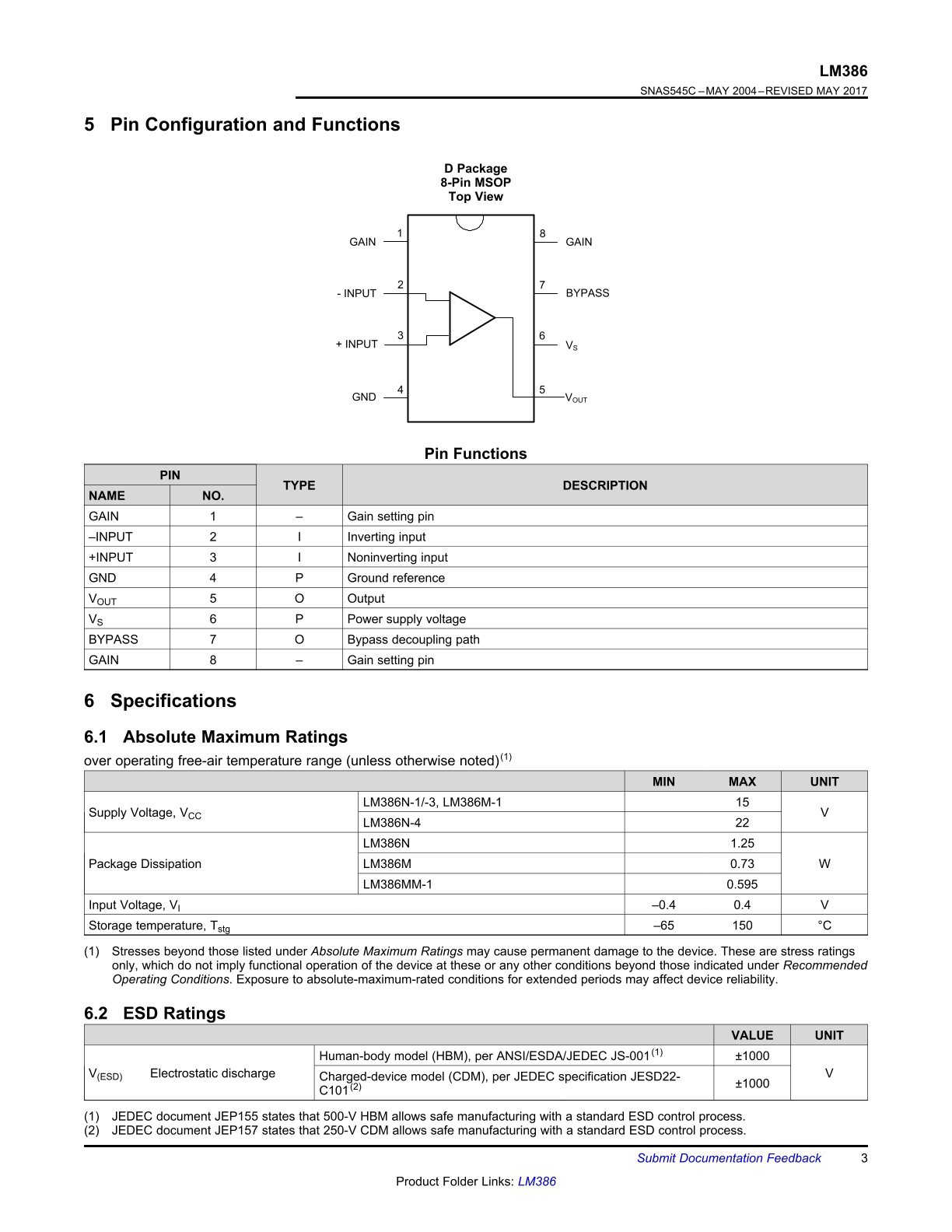

Product datasheet
For more information, please download
