Hot sale original AD8541AKSZ-R2 IC OPAMP GP 1 CIRCUIT SC70-5 Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail SC-70-5
Manufacturer Product Number
AD8541AKSZ-R2
Description
AD8541AKSZ-R2 IC OPAMP GP 1 CIRCUIT SC70-5 Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail SC-70-5
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

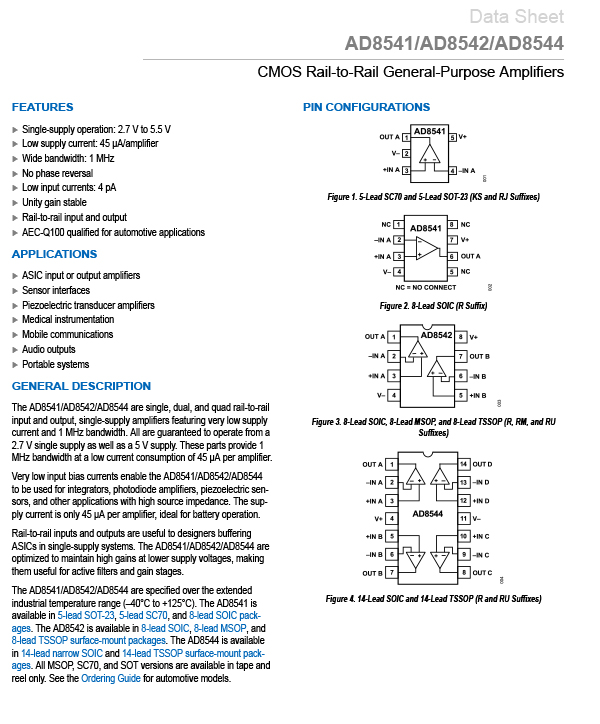

| GENERAL DESCRIPTION The AD8541/AD8542/AD8544 are single, dual, and quad rail to-rail input and output, single-supply amplifiers featuring very low supply current and 1 MHz bandwidth. All are guaranteed to operate from a 2.7 V single supply as well as a 5 V supply. These parts provide 1 MHz bandwidth at a low current consumption of 45 μA per amplifier. Very low input bias currents enable the AD8541/AD8542/AD8544 to be used for integrators, photodiode amplifiers, piezoelectric sensors, and other applications with high source impedance. The supply current is only 45 μA per amplifier, ideal for battery operation. Rail-to-rail inputs and outputs are useful to designers buffering ASICs in single-supply systems. The AD8541/AD8542/AD8544 are optimized to maintain high gains at lower supply voltages, making them useful for active filters and gain stages. The AD8541/AD8542/AD8544 are specified over the extended industrial temperature range (–40°C to +125°C). The AD8541 is available in 5-lead SOT-23, 5-lead SC70, and 8-lead SOIC packages. The AD8542 is available in 8-lead SOIC, 8-lead MSOP, and 8-lead TSSOP surface-mount packages. The AD8544 is available in 14-lead narrow SOIC and 14-lead TSSOP surface mount packages. All MSOP, SC70, and SOT versions are available in tape and reel only. FEATURES Single-supply operation: 2.7 V to 5.5 V Low supply current: 45 μA/amplifier Wide bandwidth: 1 MHz No phase reversal Low input currents: 4 pA Unity gain stable Rail-to-rail input and output APPLICATIONS ASIC input or output amplifiers Sensor interfaces Piezoelectric transducer amplifiers Medical instrumentation Mobile communications Audio outputs Portable systems |
Product Description
| Type | Description |
| ANSC PART# | ANSC- AD8541AKSZ-R2 |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | / |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.92V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 4 pA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 45µA |
| Current - Output / Channel | 30 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| Base Product Number | AD8541 |

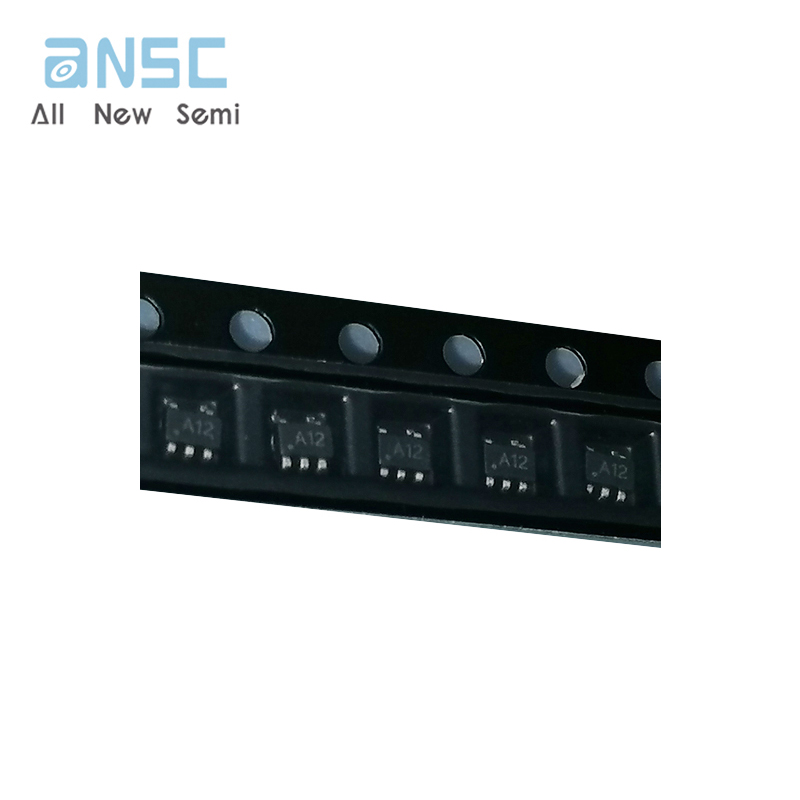

Product Photos

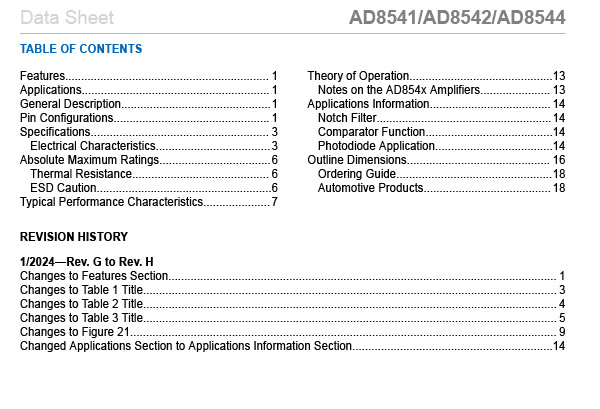

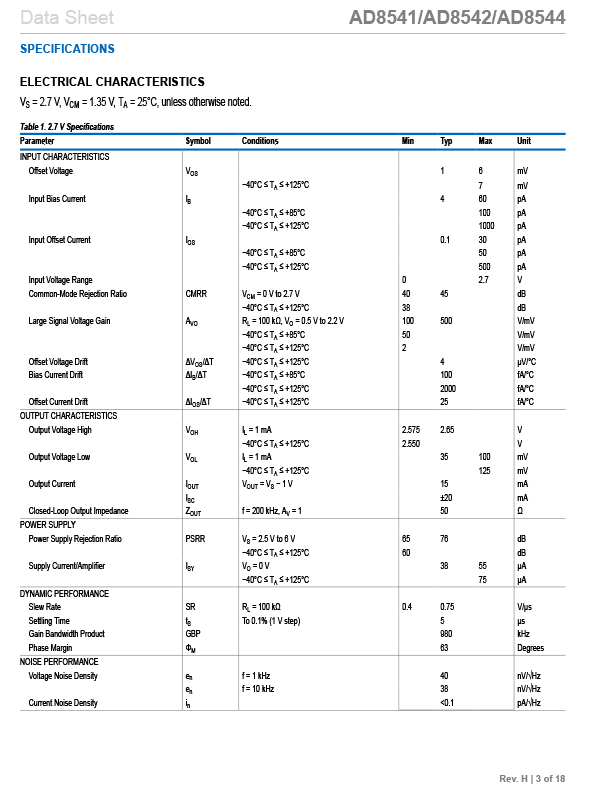

Product datasheet
For more information, please download
