Hot-selling and scarce LM324PW Quadruple Operational Amplifiers TSSOP14 spot stock

Product Descriptions

The    LM324B   and    LM2902B   devices   are   the next-generation   versions   of   the   industry-standard operational amplifiers (op amps) LM324 and LM2902, which include four high-voltage (36V) op amps.

These  devices  provide  outstanding  value  for  costsensitive  applications,  with  features  including  low offset (600µV, typical), common-mode input range to ground, and high differential input voltage capability.

The  LM324B  and  LM2902B  are  unity-gain  stable and achieve a  low offset voltage  maximum of 3mV(2mV  maximum for  LM324BA  and  LM2902BA)  and quiescent  current  of  240µA  per  amplifier  (typical). High ESD (2kV HBM and 1.5kV CDM) and integrated EMI   and   RF   filters   enable   the   LM324B   and LM2902B  devices  to  be  used  in  the  most  rugged, environmentally challenging applications.

The  LM324B and  LM2902B  can drop-in  replace all versions of the LM224, LM324, and LM2902 devices.​

Product Features

•    Next-generation LM324B and LM2902B

•    B versions are drop-in replacements for all versions of LM224, LM324, and LM2902

•    Improved specifications of B version

–   Supply range: 3V to 36V (B, BA versions)

–   Low input offset voltage: ±2mV (BA version) / 3mV (B version)

–   ESD rating: 2kV (HBM), 1.5kV (CDM)

–   EMI rejection: integrated RF and EMI filter

–   Low input bias current: 50nA maximum (across

–40°C to +125°C)

•    Common-mode input voltage range includes V–

•    Input voltage differential are drivable up to the supply voltage

•    For dual B versions, see LM358B and LM2904B

Product Applications

•    Merchant network and server power supply units

•    Multi-function printers

•    Power supplies and mobile chargers

•    Desktop PC and motherboard

•    Indoor and outdoor air conditioners

•   Washers, dryers, and refrigerators

•   AC inverters, string inverters, central inverters, and voltage frequency drives

•    Uninterruptible power supplies

Product Specification

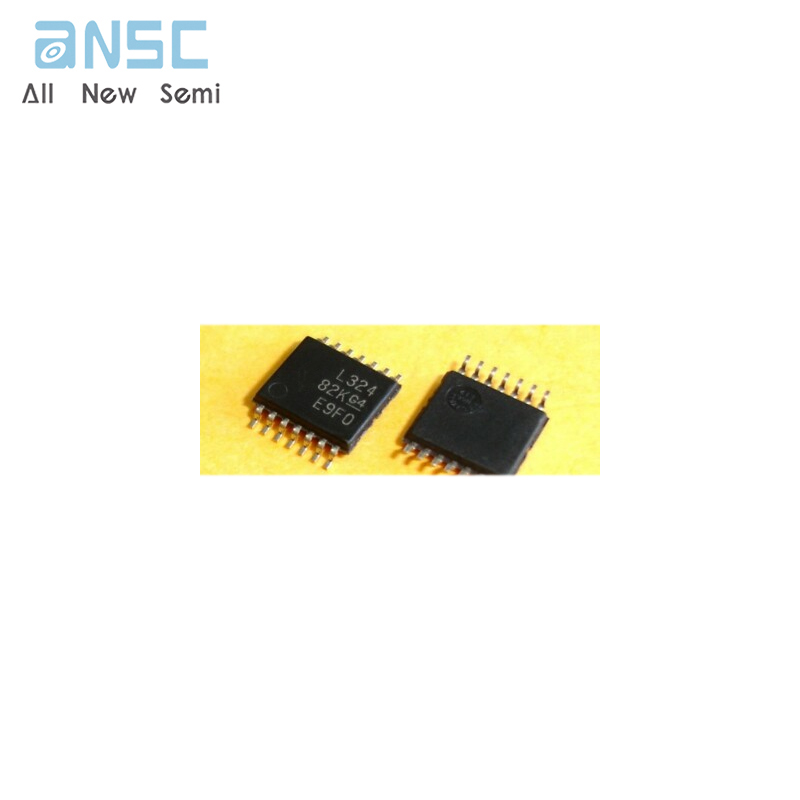

Product Photos

For more product information, please download the PDF
