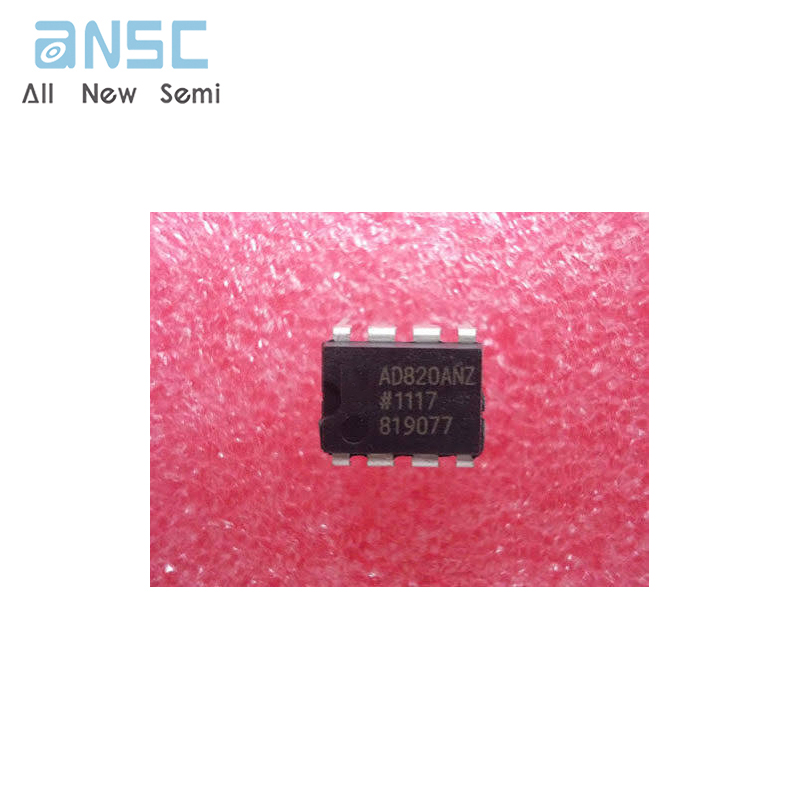

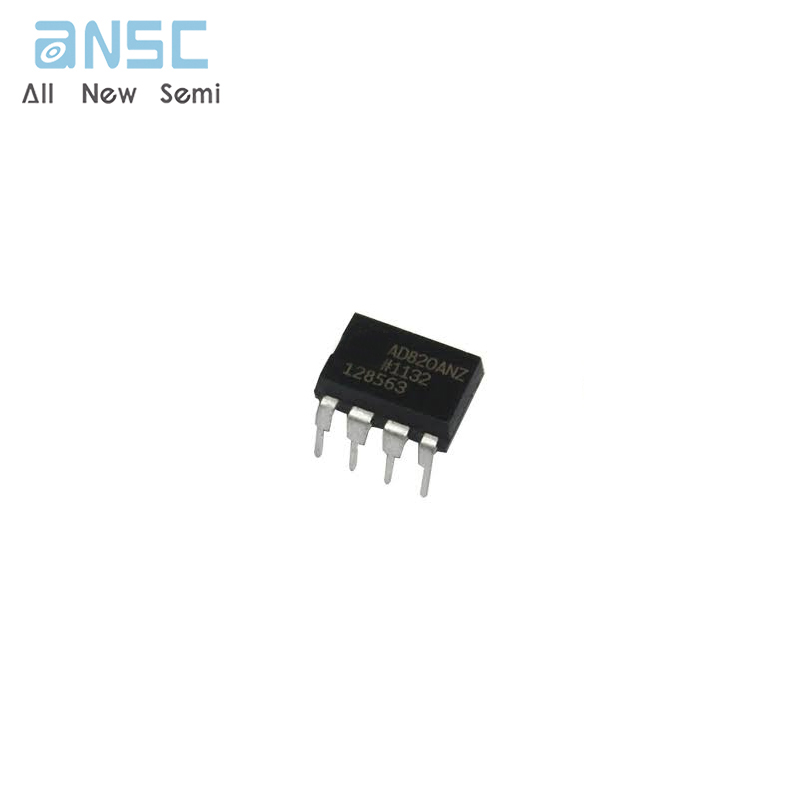

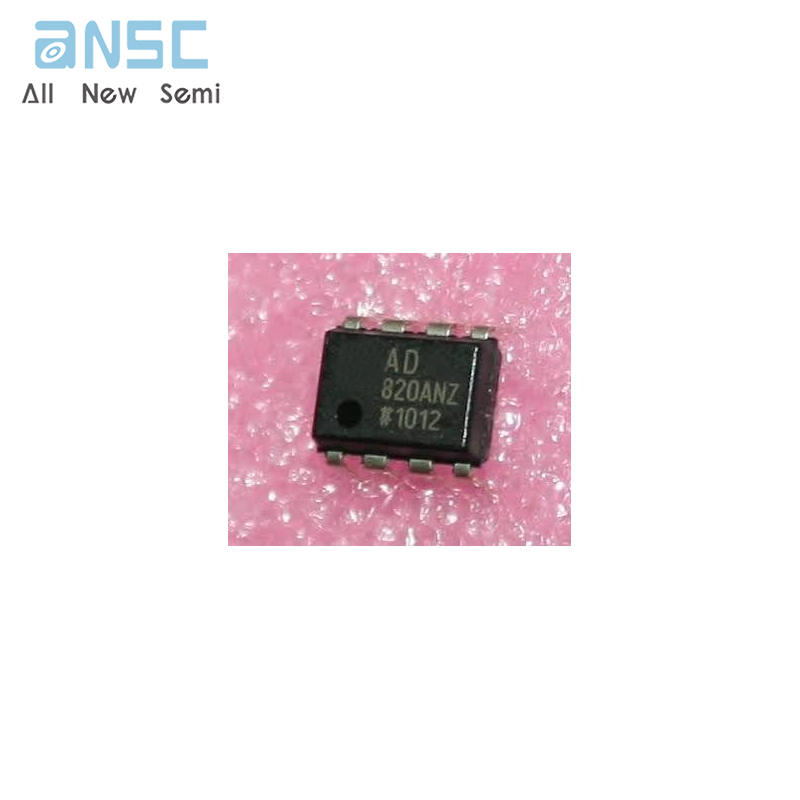

Hot-selling and scarce AD820ANZ Low Power FET Input Op Amp 8DIP spot stock

Product Descriptions

The AD820 is a precision, low power FET input op amp thatcan operate from a single supply of 5 V to 36 V,or dual suppliesof ±2.5 V to ±18 V. It has true single-supply capability, with aninput voltage range extending below the negative rail, allowingthe AD820 to accommodate input signals below ground in thesingle-supply mode. Output voltage swing extends to within

10 mV of each rail,providing the maximum output dynamic range .

Offset voltage of 800 μV maximum, offset voltage drift of 2 μV/°C, typical input bias currents below 25 pA, and low inputvoltage noise provide dc precision with source impedances upto 1 GΩ. 1.8 MHz unity gain bandwidth, −93 dB THD at 10 kHz, and 3 V/μs slew rate are provided for a low supplycurrent of 800 μA. The AD820 drives up to 350 pF of directcapacitive load and provides a minimum output current of 15 mA . This allows the amplifier to handle a wide range of loadconditions. This combination of ac and dc performance, plusthe outstanding load drive capability, results in an exceptionallyversatile amplifier for the single-supply user.

The AD820 is available in two performance grades . The A andB grades are rated over the industrial temperature range of−40°C to +85°C. The AD820 is offered in three 8-lead packageoptions:plastic DIP (PDIP),surface mount (SOIC)and (MSOP).

​

Product Features

True single-supply operation

Output swings rail-to-rail

Input voltage range extends below ground

Single-supply capability from 5 V to 30 V

Dual-supply capability from ±2.5 V to ±15 V

Excellent load drive

Capacitive load drive up to 350 pF

Minimum output current of 15 mA

Excellent ac performance for low power

800 μA maximum quiescent current

Unity-gain bandwidth: 1.8 MHz

Slew rate of 3 V/μs

Excellent dc performance

800 μV maximum input offset voltage

2 μV/°C typical offset voltage drift

25 pA maximum input bias current

Low noise: 13 nV/√Hz @ 10 kHz

Product Applications

Battery-powered precision instrumentation

Photodiode preamps

Active filters

12-bit to 14-bit data acquisition systems

Medical instrumentation

Low power references and regulators

Product Specification

Product Photos

For more product information, please download the PDF
