Hot-selling and scarce TL074CD Low-Noise, FET-Input Operational Amplifiers SOIC14 spot stock

Product Descriptions

The TL071H, TL072H, and TL074H (TL07xH) familyof   devices   are   next-generation   versions   of   theindustry-standard TL071, TL072, and TL074 (TL07x)devices . These devices provide outstanding value forcost-sensitive applications, with features including lowoffset  (1mV,  typical),  high  slew  rate  (20V/μs),  andcommon-mode input to the positive supply.

High  ESD  (1 .5kV,  HBM),  integrated  EMI  and  RFfilters, and operation across the full –40°C to +125°Crange enable the TL07xH devices for use in the mostrugged and demanding applications .

Product Features

•    High slew rate: 20V/μs (TL07xH, typ)

•    Low offset voltage: 1mV (TL07xH, typ)

•    Low offset voltage drift: 2μV/°C

•    Low power consumption: 940μA/ch (TL07xH, typ)

•   Wide common-mode and differential voltage ranges

–   Common-mode input voltage range includes V CC+

•    Low input bias and offset currents

•    Low noise:

–   Vn = 37nV/√Hz (typ) at f = 1kHz

•    Output short-circuit protection

•    Low total harmonic distortion: 0.003% (typ)

•   Wide supply voltage:

–   ±2 .25V to ±20V, 4.5V to 40V

Product Applications

•    Solar energy: string and central inverter

•    Motor drives: ac and servo drive control and power-stage modules

•    Single-phase online UPS

•   Three-phase UPS

•    Pro audio mixers

•    Battery test equipment

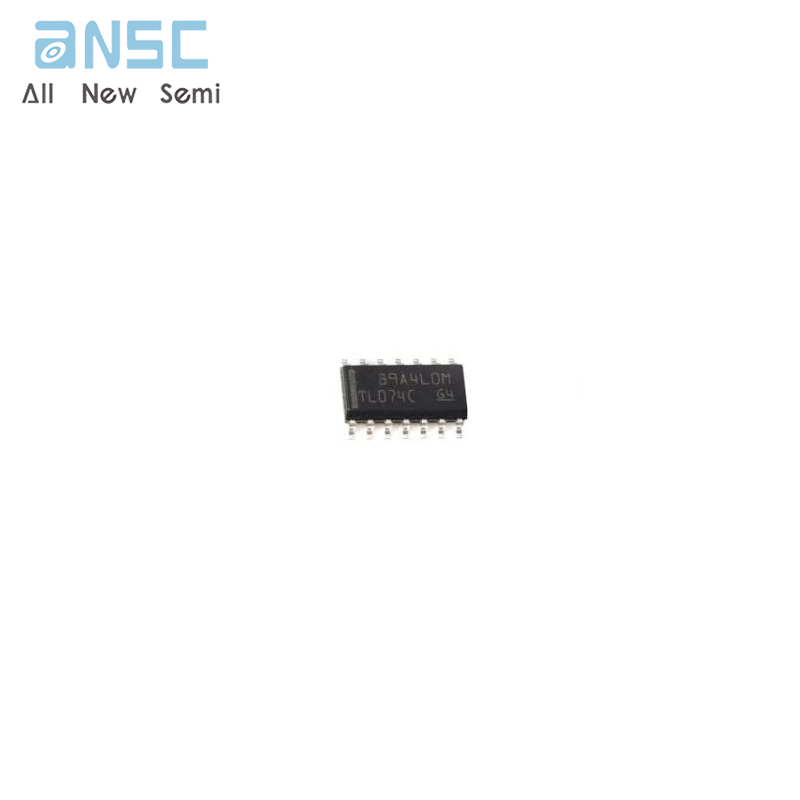

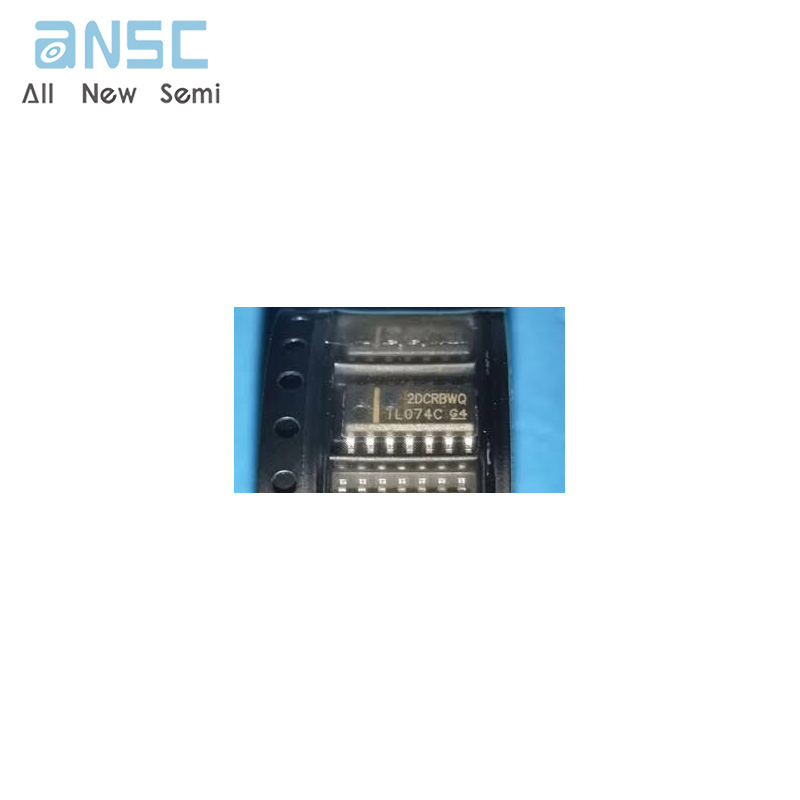

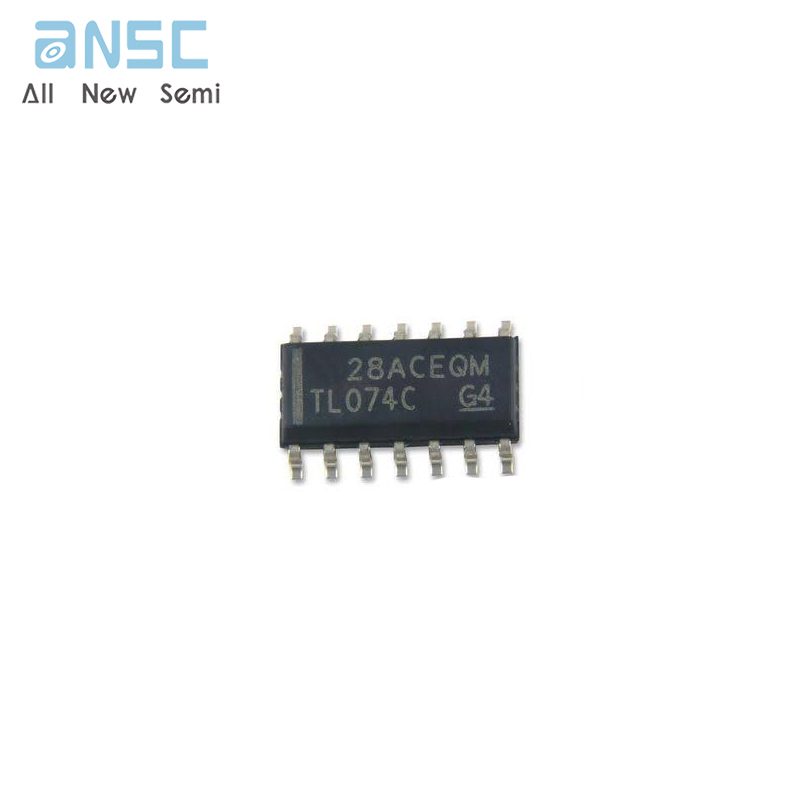

Product Photos

For more product information, please download the PDF
