AD8552ARZ Zero-Drift, Single-Supply, Rail-to-Rail Input/Output Operational Amplifiers SOP8 spot stock

Product Descriptions

This family of amplifiers has ultralow offset, drift, and bias current. The AD8551, AD8552, and AD8554 are single, dual, and quad amplifiers featuring rail-to-rail input and output swings. All are guaranteed to operate from 2.7 V to 5 V with a single supply.

The AD855x family provides the benefits previously found only in expensive auto-zeroing or chopper-stabilized amplifiers. Using Analog Devices, Inc. topology, these new zero-drift amplifiers combine low cost with high accuracy. No external capacitors are required.

With an offset voltage of only 1 μV and drift of 0.005 μV/°C, the AD855x are perfectly suited for applications in which error sources cannot be tolerated. Temperature, position and pressure sensors, medical equipment, and strain gage amplifiers benefit greatly from nearly zero drift over their operating temperature range. The rail-to-rail input and output swings provided by the AD855x family make both high-side and low-side sensing easy.

The AD855x family is specified for the extended industrial/automotive temperature range (−40°C to +125°C). The AD8551 single amplifier is available in 8-lead MSOP and 8-lead narrowSOIC packages.The AD8552 dual amplifier is available in 8-lead narrow SOIC and 8-lead TSSOP surface-mount packages. The AD8554 quad is available in 14-lead narrow SOIC and 14-lead TSSOP packages.

Product Features

Low offset voltage: 1 μV

Input offset drift: 0.005 μV/°C

Rail-to-rail input and output swing

5 V/2.7 V single-supply operation

High gain, CMRR, PSRR: 130 dB

Ultralow input bias current: 20 pA

Low supply current: 700 μA/op amp

Overload recovery time: 50 μs

No external capacitors required

Product Applications

Temperature sensors

Pressure sensors

Precision current sensing

Strain gage amplifiers

Medical instrumentation

Thermocouple amplifiers

Product Specifications

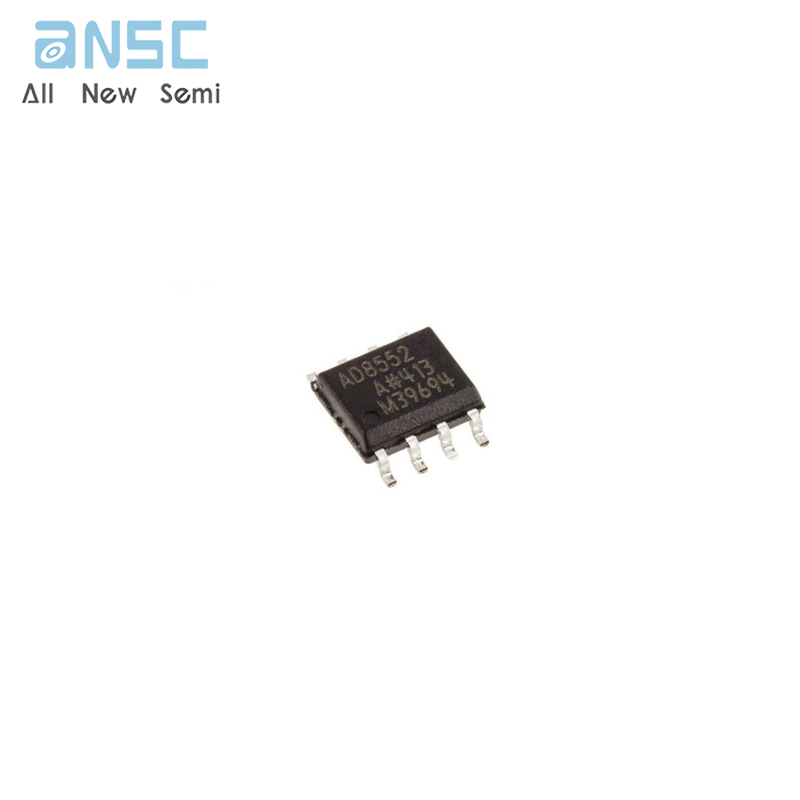

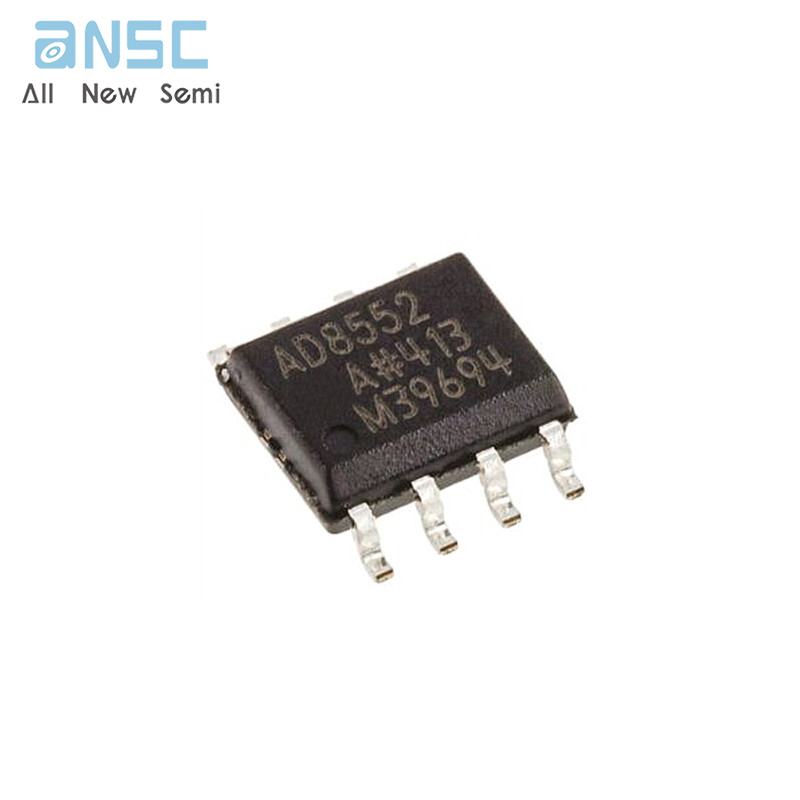

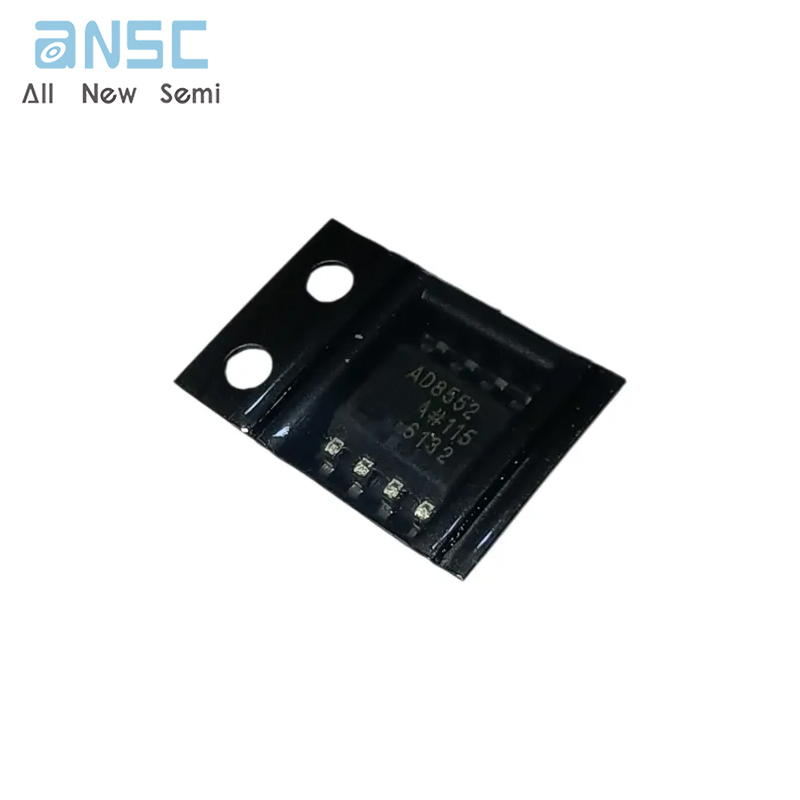

Product Photos
