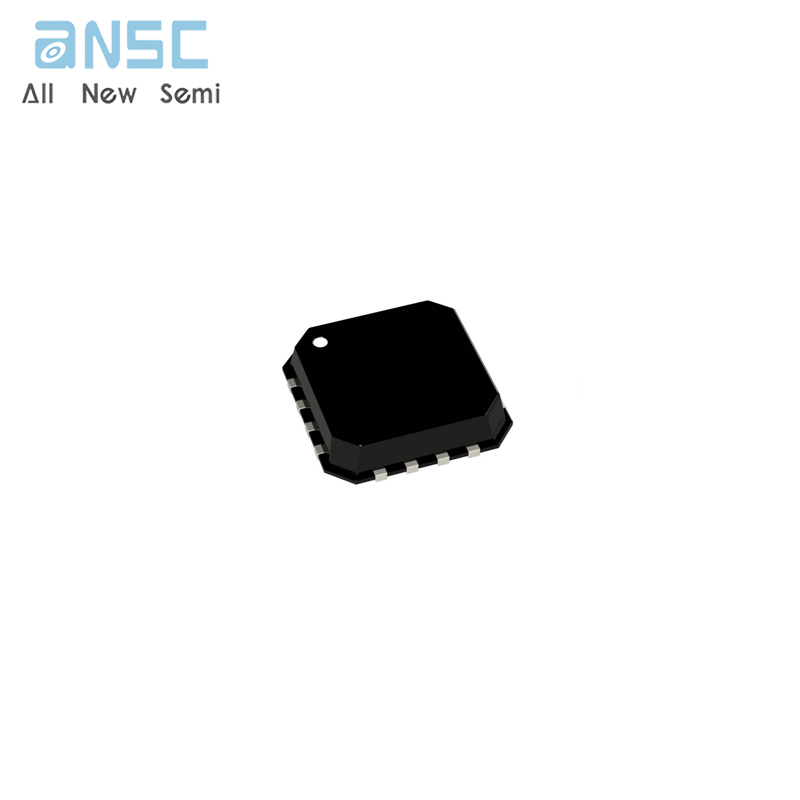

Hot-selling and scarce ADL5606ACPZ-R7 1 W RF Driver Amplifier QFN spot stock

Product Descriptions

The ADL5606 is a broadband, two-stage, 1 W RF driveramplifier that operates over a frequency range of 1800 MHzto 2700 MHz. The device can be used in a wide variety ofwired and wireless applications, including ISM, MC-GSM,W-CDMA, TD-SCDMA, and LTE .

The ADL5606 operates on a 5 V supply voltage and a supplycurrent of 362 mA. The driver also incorporates a fast powerup/power-down function for TDD applications, applicationsthat require a power saving mode, and applications thatintermittently transmit data .

The ADL5606 is fabricated on a GaAs HBT process and ispackaged in a compact 4 mm × 4 mm, 16-lead LFCSP thatuses an exposed paddle for excellent thermal impedance . TheADL5606 operates from −40°C to +85°C. A fully populatedevaluation board tuned to 2140 MHz is also available .

Product Features

Operation from 1800 MHz to 2700 MHz

Gain of 24.3 dB at 2140 MHz

OIP3 of 45.5 dBm at 2140 MHz

P1dB of 30.8 dBm at 2140 MHz

Noise figure of 4.7 dB at 2140 MHz

Power supply: 5 V

Power supply current: 362 mA typical

Internal active biasing

Fast power-up/power-down function

Compact 4 mm × 4 mm, 16-lead LFCSP

ESD rating of ±1 kV (Class 1C)

Pin-compatible with the ADL5605 (700 MHz to 1000 MHz)

Product Applications

Wireless infrastructure

Automated test equipment

ISM/AMR applications
