CMOS Operational Amplifier with Shutdown Integrated circuit IC OPA4322AIPWR

Product Descriptions

The OPAx322x series consists of single, dual, and quad-channel CMOS operational amplifiers featuring low noise and rail-to-rail inputs and outputs optimized for low-power, single-supply applications. Specified over a wide supply range of 1.8 V to 5.5 V, the low quiescent current of only 1.5 mA per channel makes these devices well-suited for power-sensitive applications.

The combination of very low noise (8.5 nV√Hz at 1 kHz), high-gain bandwidth (20 MHz), and fast slew rate (10 V/μs) make the OPAx322x family ideal for a wide range of applications, including signal conditioning and sensor amplification requiring high gains. Featuring low THD+N, the OPAx322x series is also excellent for consumer audio applications, particularly for single-supply systems.

The OPAx322S models include a shutdown mode that allow the amplifiers to be switched from normal operation to a standby current that is typically less than 0.1 μA.

The OPA322 (single version) is available in 5-pin SOT-23 and 6-pin SOT-23, while the OPA2322 (dual version) is offered in 8-pin VSSOP, 10-pin VSSOP, 8- pin SOIC, and 8-pin SON packages. The quad version OPA4322 comes in 14-pin TSSOP and 16-pin TSSOP packages. All versions are specified for operation from –40°C to +125°C.

Product Features

• Gain Bandwidth: 20 MHz

• Low Noise: 8.5 nV√Hz at 1 kHz

• Slew Rate: 10 V/μs

• Low THD+N: 0.0005%

• Rail-to-Rail I/O

• Offset Voltage: 2 mV (maximum)

• Supply Voltage: 1.8 V to 5.5 V

• Supply Current: 1.5 mA/ch

– Shutdown: 0.1 μA/ch

• Unity-Gain Stable

• Small Packages:

– SOT-23, SON, VSSOP, TSSOP

Product Applications

• Sensor Signal Conditioning

• Consumer Audio

• Multi-Pole Active Filters

• Control-Loop Amplifiers

• Communications

• Security

• Scanners

Specifications

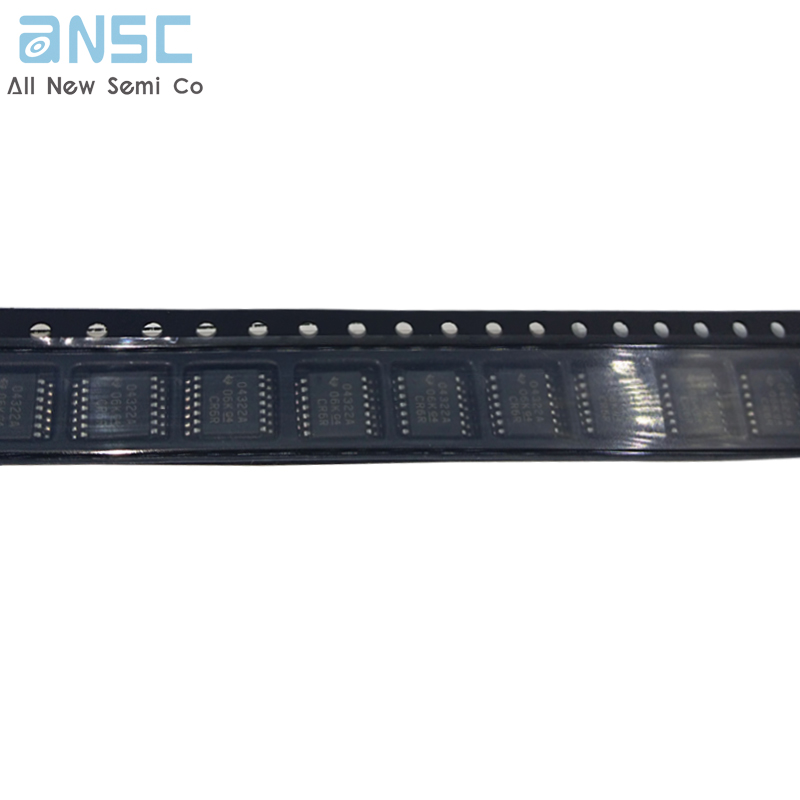

Actual product photos
