Hot-selling and scarce SE2623L-R 2.4 GHz High-Power Wireless LAN Power Amplifier IC QFN16 spot stock

Product Descriptions

The SE2623L-R is a 2.4 GHz Power Amplifier (PA) designed foruse in the 2.4 GHz Industrial, Scientific, Medical (ISM) band forwireless Local Area Network (LAN) applications . The SE2623L-Rdevice incorporates a power detector for closed loop monitoringof the output power.

The SE2623L-R includes a digital enable control for device on/offcontrol .

The SE2623L-R temperature-compensated power detector ishighly immune to mismatch at its output, with less than +1.5 dBof variation with a 2:1 mismatch .

Product Features

Single 5 V supply operation:

+23 dBm, EVM = 1.8 %, MCS8

+26 dBm, EVM = 3 %, 802.11g, OFDM 54 Mbps

+26 dBm,ACPR <–32 dBc, 802.11b

+33 dB gain

Integrated temperature-compensated power detector

Digital power amplifier enable pin (VEN)

Small QFN (16-pin, 3.0 x 3.0 x 0.9 mm) package (MSL3, 260 °C per JEDEC J-STD-020)

Product Applications

DSSS 2.4 GHz WLAN (IEEE 802 .11b)

OFDM 2.4 GHz WLANs:

IEEE 802.11b/g/n

256 QAM IEEE 802.11ac

Access points

PCMCIA cards

PC cards

Product Specification

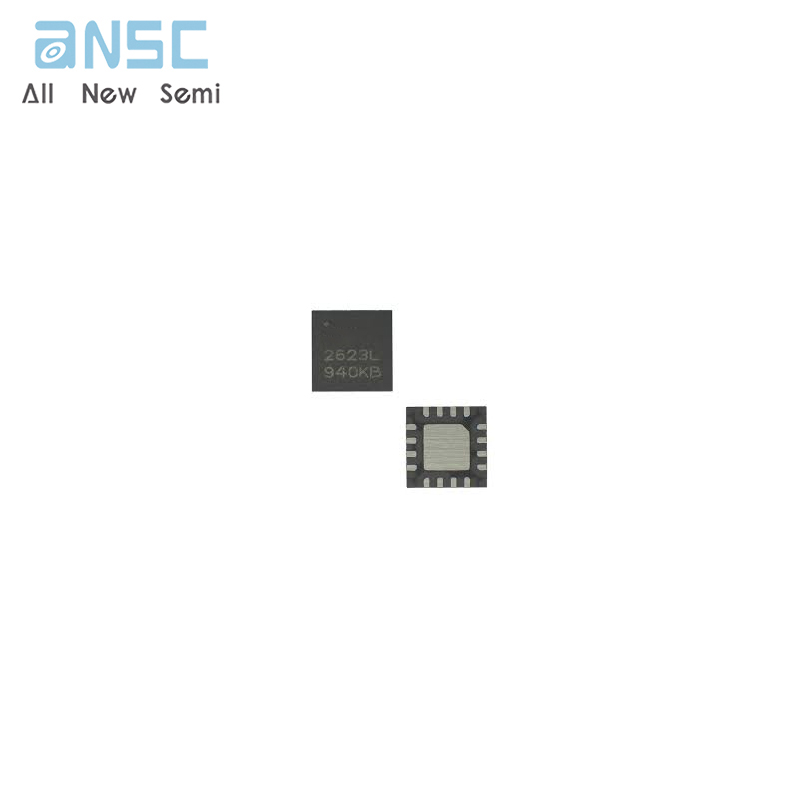

Product Photos

    ​   ​     ​

    ​    ​

    ​    ​For more product information, please download the PDF
