Hot-selling and scarce AD8051ARTZ-REEL7 Low Cost High Speed Rail-to-Rail Amplifiers IC SOT23-5 spot stock
Manufacturer Product Number
AD8051ARTZ-REEL7
Description
AD8051ARTZ-REEL7 Low Cost High Speed Rail-to-Rail Amplifiers IC SOT23-5 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
High speed and fast settling on 5 V
110 MHz, −3 dB bandwidth (G = +1) (AD8051/AD8052)
150 MHz, −3 dB bandwidth (G = +1) (AD8054)
145 V/μs slew rate
50 ns settling time to 0.1%
Single-supply operation
Output swings to within 25 mV of either rail
Input voltage range: −0.2 V to +4 V; VS = 5 V
Video specifications (G = +2)
0.1 dB gain flatness: 20 MHz; RL = 150 Ω
Differential gain/phase: 0.03%/0.03°
Low distortion
−80 dBc total harmonic @ 1 MHz, RL = 100 Ω
Outstanding load drive capability
Drives 45 mA, 0.5 V from supply rails (AD8051/AD8052)
Drives 50 pF capacitive load (G = +1) (AD8051/AD8052)
Low power: 2.75 mA/amplifier (AD8054)
Low power: 4.4 mA/amplifier (AD8051/AD8052)
Product Applications
Active filters
Analog-to-digital drivers
Clock buffer
Consumer video
Professional cameras
CCD imaging systems
CD/DVD ROMs
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AD8051ARTZ-REEL7 |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps | |
| Buffer Amps | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 170V/us |
| -3db Bandwidth | 110 MHz |
| Current - Input Bias | 1.4 uA |
| Voltage - Input Offset | 1.8 mV |
| Current - Supply | 4.8mA |
| Current - Output / Channel | 45 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 12 V |
| Operating Temperature | ’-40℃ ~ 125℃ |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | AD8051 |

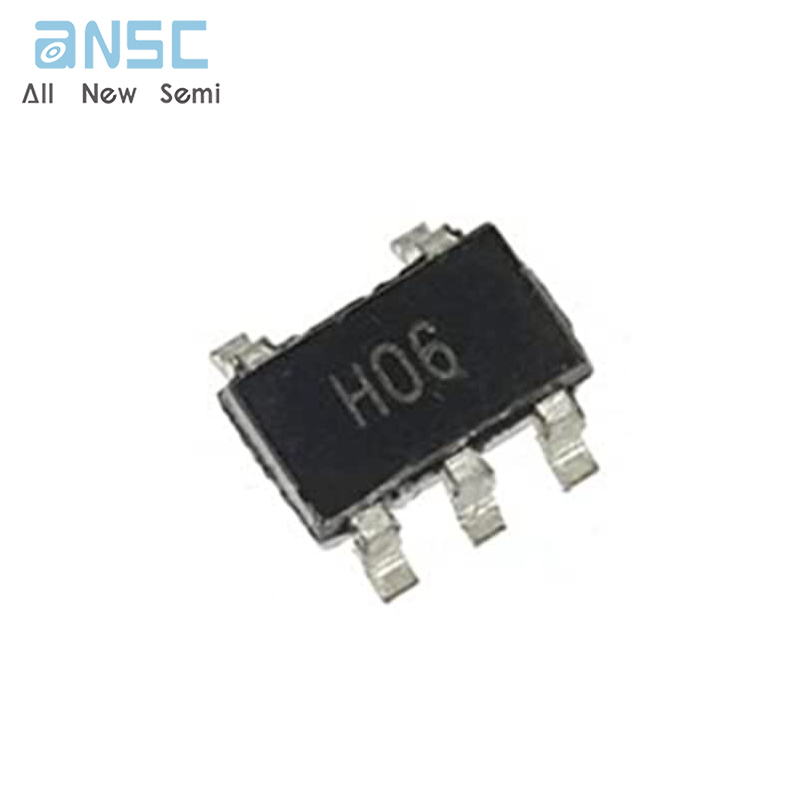

Product Photos
For more product information, please download the PDF
