Hot-selling and scarce LMH6644MAX Low Power, 130MHz, 75mA Rail-to-Rail Output Amplifiers SOP14 spot stock

Product Descriptions

The   LMH664X  family  true  single  supply  voltagefeedback amplifiers offer high speed (130MHz), lowdistortion  (−62dBc),  and  exceptionally  high  outputcurrent  (approximately  75mA)  at  low  cost  and withreduced power consumption when compared againstexisting devices with similar performance .

Input common mode voltage range extends to 0.5Vbelow  V ⁻and  1V  from  V⁺.  Output  voltage  rangeextends to within 40mV of either supply rail, allowingwide   dynamic   range   especially   desirable   in   lowvoltage applications . The output stage is capable ofapproximately  75mA  in  order to  drive  heavy  loads .Fast output Slew Rate (130V/µs) ensures large peakto-peak  output  swings  can  be  maintained  even  athigher  speeds,  resulting  in  exceptional  full  powerbandwidth   of  40MHz   with   a   3V   supply .   Thesecharacteristics, along with low cost, are ideal featuresfor    a    multitude    of    industrial    and    commercialapplications .

Careful  attention  has  been  paid  to  ensure  devicestability under all operating voltages and modes . Theresult  is  a  very  well  behaved  frequency  responsecharacteristic  (0 .1dB  gain  flatness  up  the  12MHzunder 150Ωload and A_V  = +2) with minimal peaking(typically  2dB  maximum)  for  any  gain  setting  andunder both heavy and light loads . This along with fastsettling  time  (68ns)  and  low  distortion  allows  thedevice  to  operate  well  in  ADC  buffer,  and  highfrequency   filter   applications   as   well   as   otherapplications .

This  device  family  offers  professional  quality  videoperformance  with  low  DG  (0 .01%)  and  DP  (0 .01°)characteristics .   Differential   Gain   and   DifferentialPhase characteristics are also well maintained underheavy   loads   (150Ω)   and   throughout   the   outputvoltage  range .  The  LMH664X  family  is  offered  insingle   (LMH6642),   dual   (LMH6643),   and   quad(LMH6644) options .

Product Features

(VS = ±5V, TA = 25°C, RL = 2kΩ, AV = +1. Typical Values Unless Specified).

•    −3dB BW (AV = +1) 130MHz

•    Supply Voltage Range 2.7V to 12.8V

•    Slew Rate (1), (AV = −1) 130V/µs

•    Supply Current (no load) 2.7mA/amp

•    Output Short Circuit Current +115mA/−145mA

•    Linear Output Current ±75mA

•    Input Common Mode Volt . 0.5V Beyond V−, 1V from V+

•    Output Voltage Swing 40mV from Rails

•    Input Voltage Noise (100kHz) 17nV/√Hz

•    Input Current Noise (100kHz) 0.9pA/√Hz

•    THD (5MHz, RL = 2kΩ, VO = 2VPP, AV = +2) −62dBc

•    Settling Time 68ns

•    Fully Characterized for 3V, 5V, and ±5V

•    Overdrive Recovery 100ns

•    Output Short Circuit Protected (2)

•    No Output Phase Reversal with CMVR Exceeded

Product Applications

•    Active Filters

•    CD/DVD ROM

•    ADC Buffer Amp

•    Portable Video

•    Current Sense Buffer

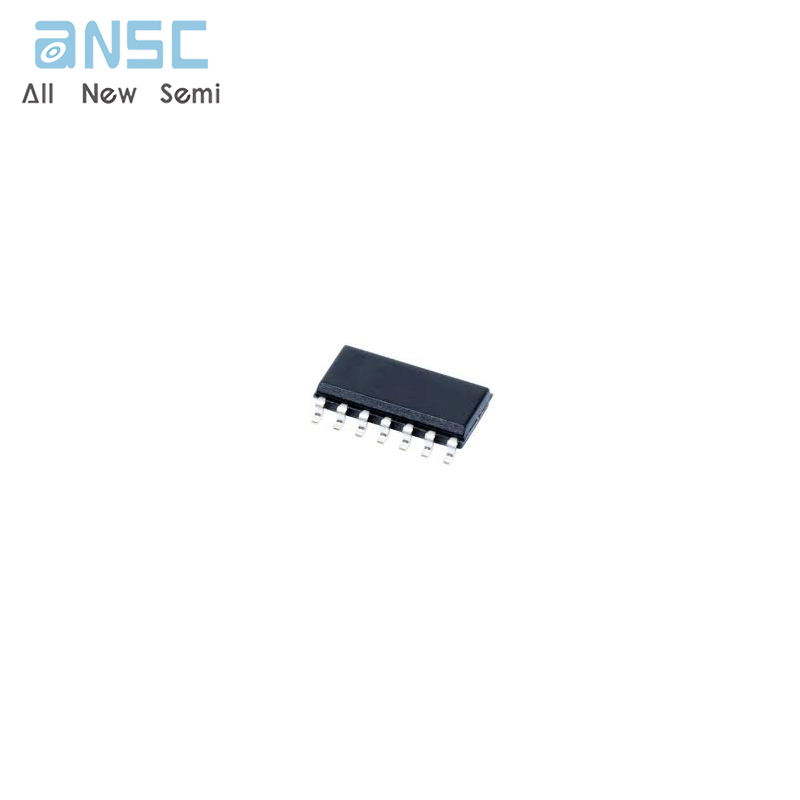

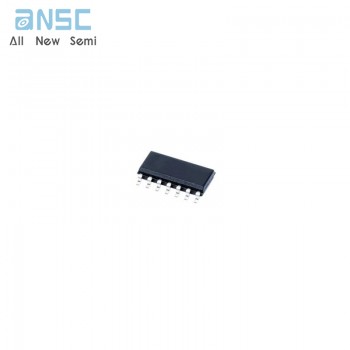

Product Photos

For more product information, please download the PDF
