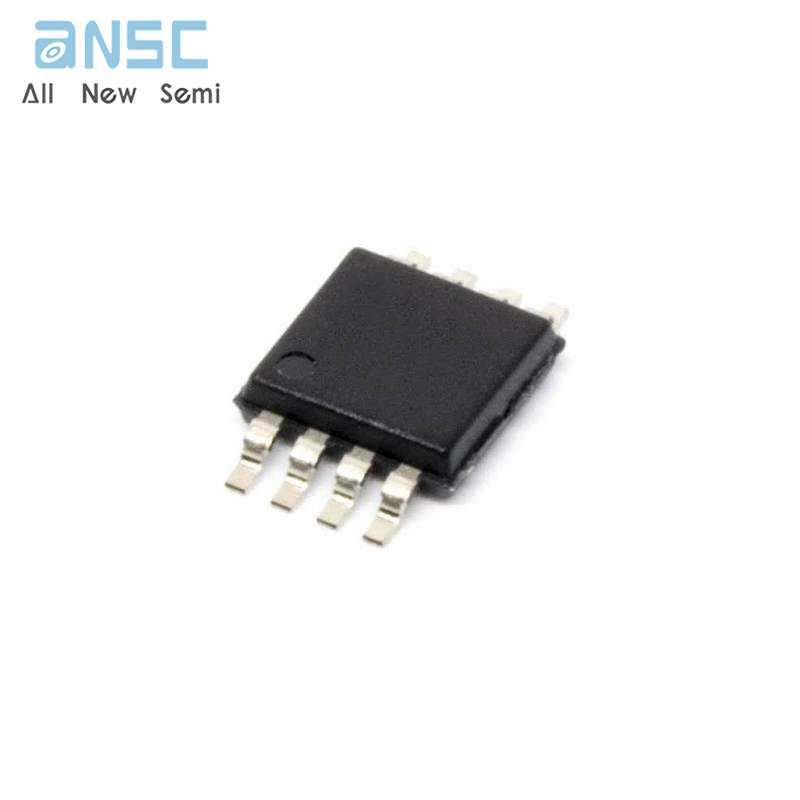

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
TSV912AIST Single, dual, and quad rail-to-rail input/output 8 MHz operational amplifiers MSOP8 spot stock
Manufacturer Product Number
TSV912AIST
Description
TSV912AIST input/output 8 MHz operational amplifiers MSOP8 spot stock
Package Condition
Tape & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The TSV91x and TSV91xA operational amplifiers (op amps) offer low voltage operation and rail-to-rail input and output, as well as an excellent speed/power consumption ratio, providing an 8 MHz gain-bandwidth product while consuming only 1.1 mA maximum at 5 V. The op amps are unity gain stable and feature an ultra-low input bias current.
The devices are ideal for sensor interfaces, battery-supplied and portable applications, as well as active filtering.
Product Features
• Rail-to-rail input and output
• Wide bandwidth
• Low power consumption: 820 µA typ.
• Unity gain stability
• High output current: 35 mA
• Operating from 2.5 V to 5.5 V
• Low input bias current, 1 pA typ.
• Low input offset voltage: 1.5 mV max. (A grade)
• ESD internal protection ≥ 5 kV
• Latch-up immunity
Product Applications
• Battery-powered applications
• Portable devices
• Signal conditioning
• Active filtering
• Medical instrumentation
• Automotive applications
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TSV912AIST |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Buffer Amps | |
| Mfr | - |
| Packaging | Tape & Reel (TR), Cut Tape (CT) |
| Part Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 4.5V/us |
| Gain Bandwidth Product | 8 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 1.5 mV |
| Current - Supply | 780uA (x2 Channels) |
| Current - Output / Channel | 35 mA |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40℃ ~ 125℃ |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MiniSO |
| Base Product Number | TSV912 |
Product Photos
For more product information, please download the PDF
