Product Descriptions

The amplifiers consist of a monolithic dual power op amp in a 8-pin hermetic TO-3 package (PA21 and PA25)and a 12-pin SIP package (PA26). Putting two power op amps in one package and on one die results in an extremely cost effective solution  for  applications  requiring  multiple  amplifiers  per board or bridge mode configurations.

The wide common mode input range includes the negative rail, facilitating single supply applications. It is possible to have a“ground based” input driving a single supply amplifier with ground acting as the“second” or“bottom” supply of the amplifier.

The output stages are also well protected. They possess internal current limit circuits. While the device is well protected, the Safe Operating Area (SOA) curve must be observed. Proper heatsinking is required for maximum reliability.

Product Features

• LOW COST

• WIDE COMMON MODE RANGE — Includes negative supply

• WIDE SUPPLY VOLTAGE RANGE

Single supply: 5V to 40V

Split supplies: ±2.5V to ±20V

• HIGH EFFICIENCY — |Vs–2.2V| at 2.5A typ

• HIGH OUTPUT CURRENT — 3A min (PA21A)

• INTERNAL CURRENT LIMIT

• LOW DISTORTION

Product Applications

​

• HALF & FULL BRIDGE MOTOR DRIVERS

• AUDIO POWER AMPLIFIER

STEREO — 18W RMS per channel

BRIDGE — 36W RMS per package

• IDEAL FOR SINGLE SUPPLY SYSTEMS

5V — Peripherals

12V — Automotive

28V — Avionic

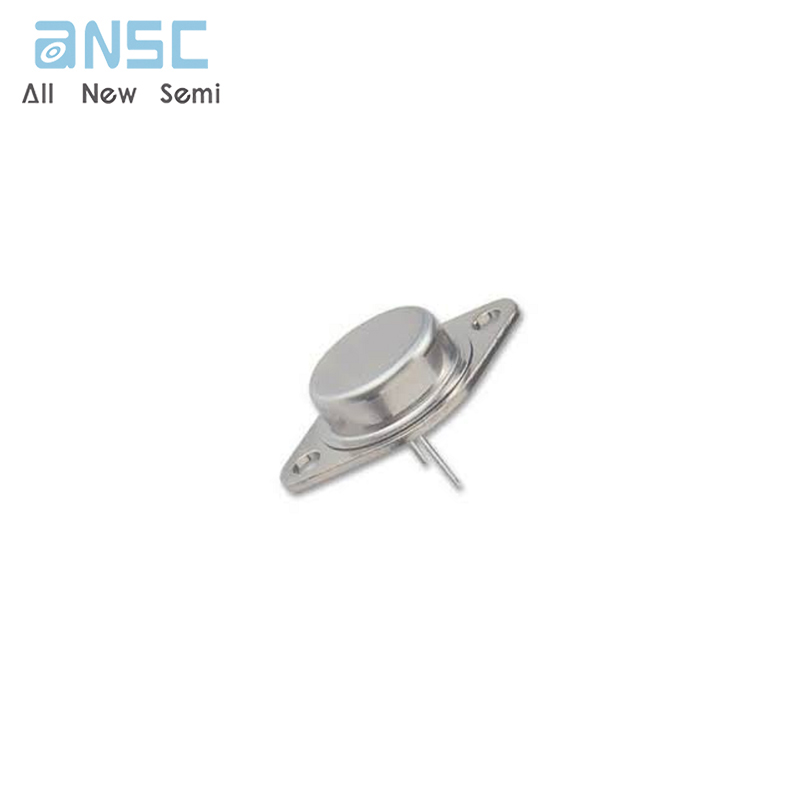

Product Photos

For more product information, please download the PDF
