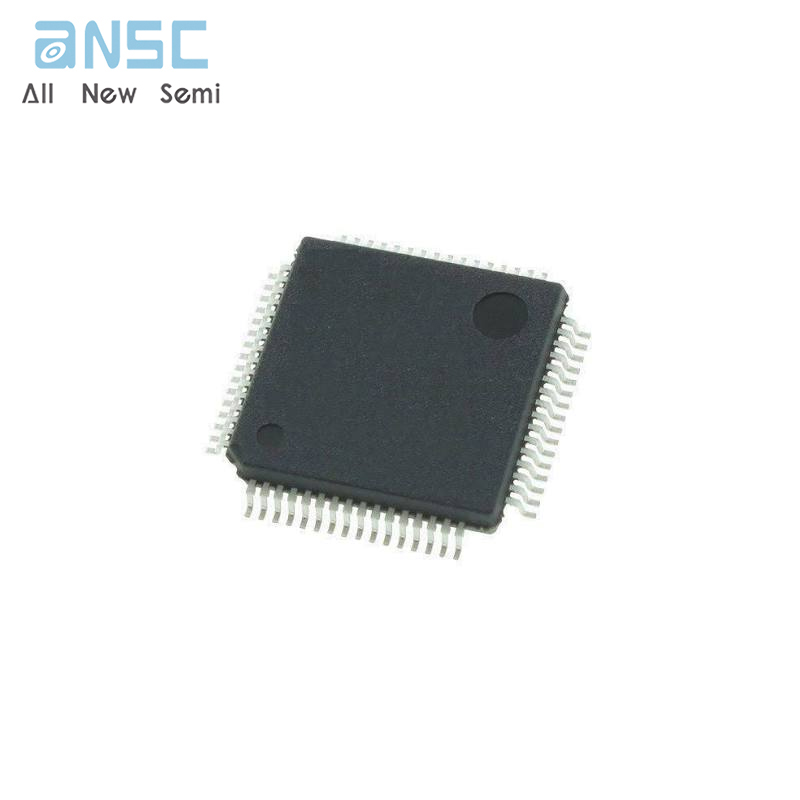

Hot-selling and scarce FDA2100LV PWM digital input power amplifier IC QFP spot stock

Product Descriptions

The FDA2100LV is a new BCD technology dualbridge class D amplifier,specially intended for carradio applications .

Thanks to the BCD6-SOI (Silicon On Insulation)technology it is possible to integrate a highperformance D/A converter together with powerfulMOSFET output amplifier working in class D,toget outstanding efficiency with respect to thestandard class AB .

The D/A conversion on board allows theperformance to reach an outstanding 110 dB S/Nratio with 105 dB of dynamic range .The feedbackloop includes the output L-C low-pass filter,allowing superior frequency response linearityand lower distortion independently of the inductorand capacitor quality.

Product Features

 Integrated 105 dB D/A conversion

 I 2 S &TDM digital input (3 .3/1 .8 V)

 Input sampling frequency:44.1kHz,48 kHz,96 kHz,192 kHz

 Step-up driver included

 EMI control for FM/AM compatibility

 Dithering possibility

 Capable to operate down to 6 V (e .g ."start-stop")

 6 V -35 V operating range (RL =8 Ω)

 Low component count output low-pass filter

 Output low-pass filter included in the feedback

 Low radiation function (LRF)

 High output power capability

– 2 x 80 W/4 Ω@25 V,1 kHz,10 %THD

– 2 x 120 W/4 Ω@30 V,1 kHz,10 %THD

– 1 x 150 W/2 Ω@25 V,1 kHz,10 %THD

 Full I 2 C bus driving (3 .3/1 .8 V):

– I 2 C bus digital diagnostics (including DCand AC load detection);AC and DC

loudspeaker diagnostic

 Very flexible fault detection through integrated diagnostic

 Protected against several kinds of misconnections

 Offset detector (play or mute mode)

 Two independent short circuit protections

 Clipping detector

 C-MOS compatible enable pin (3 .3/5 V)

 ESD protection

 Package:TQFP64 exposed pad up

Product Specification

Product Photos

For more product information, please download the PDF
