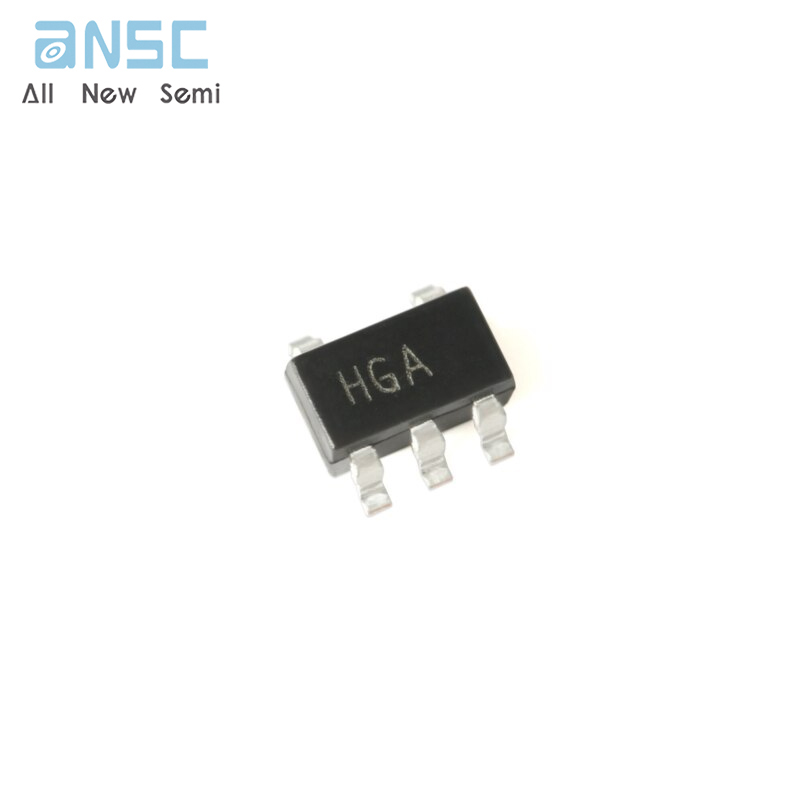

Hot-selling and scarce AD8061ARTZ-REEL7 Low Cost 300 MHz Rail-to-Rail Amplifiers SOT23-5 spot stock

Product Descriptions

The AD8061/AD8062/AD8063 are rail-to-rail output voltagefeedback amplifiers offering ease of use and low cost. They havea bandwidth and slew rate typically found in current feedbackamplifiers . All have a wide input common-mode voltage rangeand output voltage swing, making them easy to use on singlesupplies as low as 2.7 V.

Despite being low cost, the AD8061/AD8062/AD8063 provideexcellent overall performance . For video applications, theirdifferential gain and phase errors are 0.01% and 0.04° into a 150 Ω load, along with 0.1 dB flatness out to 30 MHz . Additionally, they offer wide bandwidth to 300 MHz along with650 V/µs slew rate .

The AD8061/AD8062/AD8063 offer a typical low power of6.8 mA/amplifier, while being capable of delivering up to

50 mA of load current. The AD8063 has a power -down disablefeature that reduces the supply current to 400 µA.These featuresmake the AD8063 ideal for portable and battery-poweredapplications where size and power are critical .

Product Features

Low cost

Single (AD8061), dual (AD8062)

Single with disable (AD8063)

Rail-to-rail output swing

Low offset voltage: 6 mV

High speed

300 MHz, −3 dB bandwidth (G = 1)

650 V/µs slew rate

8.5 nV/√Hz at 5 V

35 ns settling time to 0.1% with 1 V step

Operates on 2.7 V to 8 V supplies

Input voltage range = −0.2 V to +3.2 V with VS = 5 V

Excellent video specifications (RL = 150 Ω, G = 2)

Gain flatness: 0.1 dB to 30 MHz

0.01% differential gain error

0.04° differential phase error

35 ns overload recovery

Low power

6.8 mA/amplifier typical supply current

AD8063 400 µA when disabled

Product Applications

Imaging

Photodiode preamps

Professional video and cameras

Handsets

DVDs/CDs

Base stations

Filters

ADC drivers

Clock buffers

Product Specification

Product Photos

For more product information, please download the PDF
