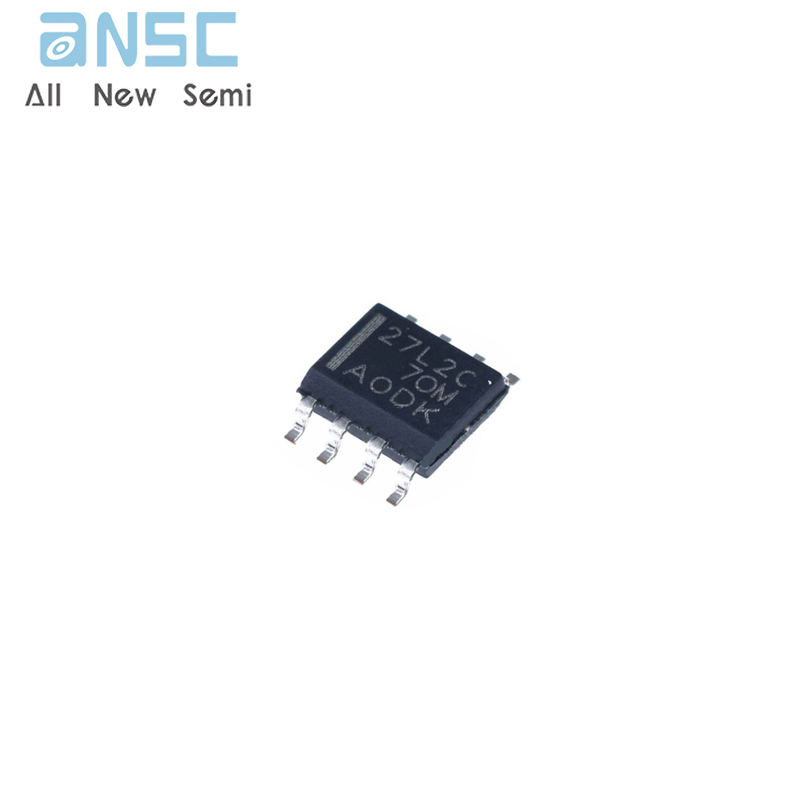

Hot-selling and scarce TLC27L2CD LinCMOSE PRECISION DUAL OPERATIONAL AMPLIFIERS SOP8
Manufacturer Product Number
TLC27L2CD
Description
TLC27L2CD LinCMOSE PRECISION DUAL OPERATIONAL AMPLIFIERS SOP8
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The TLC27L2 and TLC27L7 dual operational amplifiers combine a wide range of input offset voltage grades with low offset voltage drift, high input impedance, extremely low power, and high gain.
Product Features
Trimmed Offset Voltage:
TLC27L7 . . . 500 µV Max at 25°C,VDD = 5 V
Input Offset Voltage Drift . . . Typically 0.1 µV/Month, including the First 30 Days
Wide Range of Supply Voltages Over Specified Temperature Range:
0°C to 70°C . . . 3 V to 16 V
–40°C to 85°C . . . 4 V to 16 V
–55°C to 125°C . . . 4 V to 16 V
Single-Supply Operation
Common-Mode Input Voltage Range Extends Below the Negative Rail (C-Suffix, I-Suffix Types)
Ultra-Low Power...Typically 95 µW at 25°C, VDD = 5 V
Output Voltage Range includes Negative Rail
High Input Impedance . . . 1012 Ω Typ
ESD-Protection Circuitry
Small-Outline Package Option Also
Available in Tape and Reel
Designed-In Latch-Up immunity
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TLC27L2CD |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Series | LinCMOS™ |
| Packaging | Tube |
| Part Status | Obsolete |
| Amplifier Type | CMOS |
| Number of Circuits | 2 |
| Slew Rate | 0.03V/µs |
| Gain Bandwidth Product | 110 kHz |
| Current - Input Bias | 0.6 pA |
| Voltage - Input Offset | 1.1 mV |
| Current - Supply | 20µA (x2 Channels) |
| Current - Output / Channel | 30 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 16 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | TLC27L2 |
Product Photos
For more product information, please download the PDF
