Hot sale original OP249GS-REEL IC OPAMP JFET 2 CIRCUIT 8SOIC J-FET Amplifier 2 Circuit 8-SOIC
Manufacturer Product Number
OP249GS-REEL
Description
OP249GS-REEL IC OPAMP JFET 2 CIRCUIT 8SOIC J-FET Amplifier 2 Circuit 8-SOIC
Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

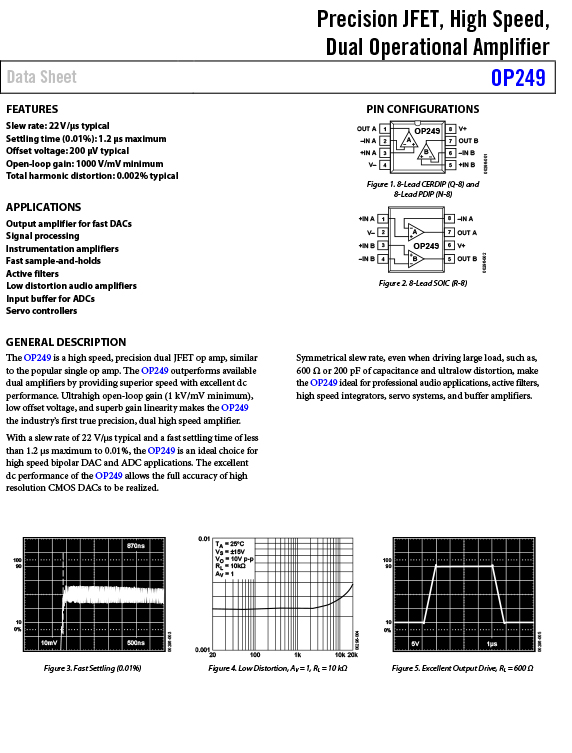

| GENERAL DESCRIPTION The OP249 is a high speed, precision dual JFET op amp, similar to the popular single op amp, the OP42. The OP249 outperforms available dual amplifiers by providing superior speed with excellent dc performance. Ultrahigh open-loop gain (1 kV/mV minimum), low offset voltage and superb gain linearity, makes the OP249 the industry’s first true precision, dual high speed amplifier. FEATURES Fast Slew Rate: 22 V/μs typ Settling Time (0.01 ):␣ 1.2 μs max Offset Voltage:␣ 300 μV max High Open-Loop Gain: 1000 V/mV min Low Total Harmonic Distortion: 0.002 typ Improved Replacement for AD712, LT1057, OP215, TL072 and MC34082 Available in Die Form APPLICATIONS Output Amplifier for Fast D/As Signal Processing Instrumentation Amplifiers Fast Sample/Holds Active Filters Low Distortion Audio Amplifiers Input Buffer for A/D Converters Servo Controllers |
Product Description

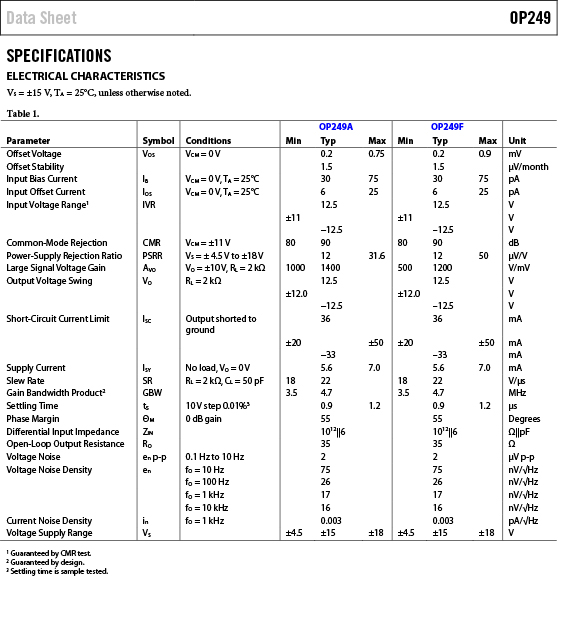

| Type | Description |
| ANSC PART# | ANSC- OP249GS-REEL |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Amplifier Type | J-FET |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 22V/µs |
| Gain Bandwidth Product | 4.7 MHz |
| Current - Input Bias | 30 pA |
| Voltage - Input Offset | 400 µV |
| Current - Supply | 5.6mA |
| Current - Output / Channel | 36 mA |
| Voltage - Supply Span (Min) | 9 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | OP249 |

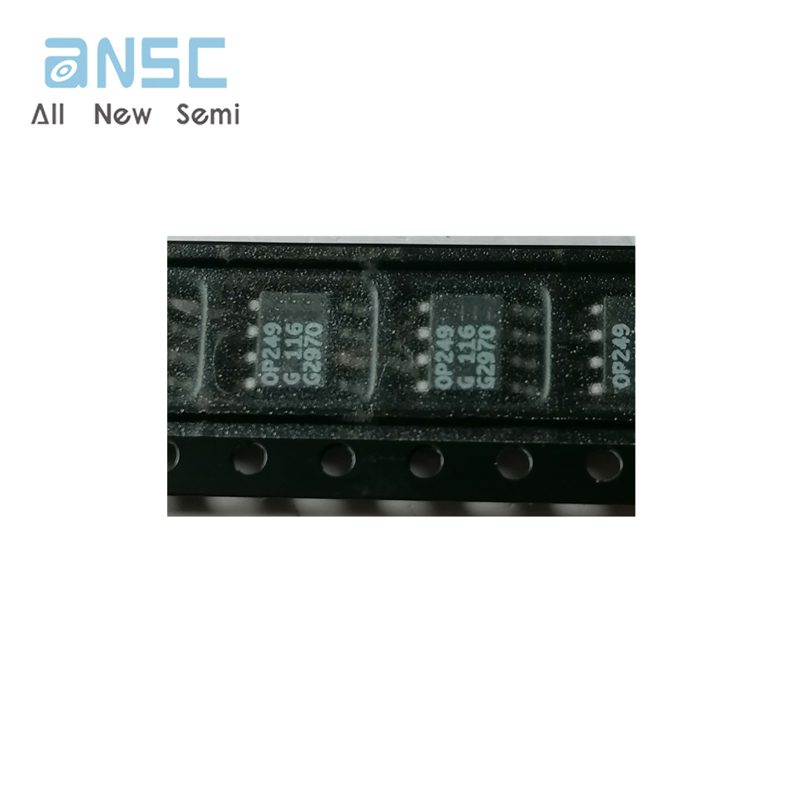

Product Photos
Product datasheet
For more information, please download
