Hot sale Original AD822ARZ Amplifier IC OPAMP GP 2 CIRCUIT 8SOIC General Purpose Amplifier 2 Circuit Rail-to-Rail 8-SOIC
Manufacturer Product Number
AD822ARZ
Description
Original AD822ARZ Amplifier IC OPAMP GP 2 CIRCUIT 8SOIC General Purpose Amplifier 2 Circuit Rail-to-Rail 8-SOIC
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product details
AD822ARZ: High-Performance, General-Purpose Operational Amplifier
The AD822ARZ is a high-performance, general-purpose operational amplifier (OP amp). This 8-pin SOIC package IC is designed for a wide range of applications, including instrumentation, medical, and industrial systems. With its high gain bandwidth product, low noise, and low power consumption, the AD822ARZ is an excellent choice for precision amplification and signal conditioning.
Product Features
· High gain bandwidth product: 1.9 MHz
· Low noise: 25 nV/√Hz
· Low power consumption: 900 μA
· Rail-to-rail output: 20 mA per channel
· High common mode rejection ratio: 80 dB
· High power supply rejection ratio: 80 dB
· Low input bias current: 2 pA
· Low input offset voltage: 1.5 mV
Product Applications
· Precision amplification and signal conditioning
· Instrumentation and measurement systems
· Medical equipment and devices
· Industrial control and automation systems
· Audio and video applications
Embedded Modules:
· Not applicable, as this is a standalone IC.
Product Description
| Type | Description |
| ANSC PART# | ANSC - AD822ARZ |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 3V/µs |
| Gain Bandwidth Product | 1.9 MHz |
| -3db Bandwidth | 1.9 MHz |
| Current - Input Bias | 2 pA |
| Voltage - Input Offset | 400 µV |
| Current - Supply | 1.24mA |
| Current - Output / Channel | 20 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 30 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AD822 |

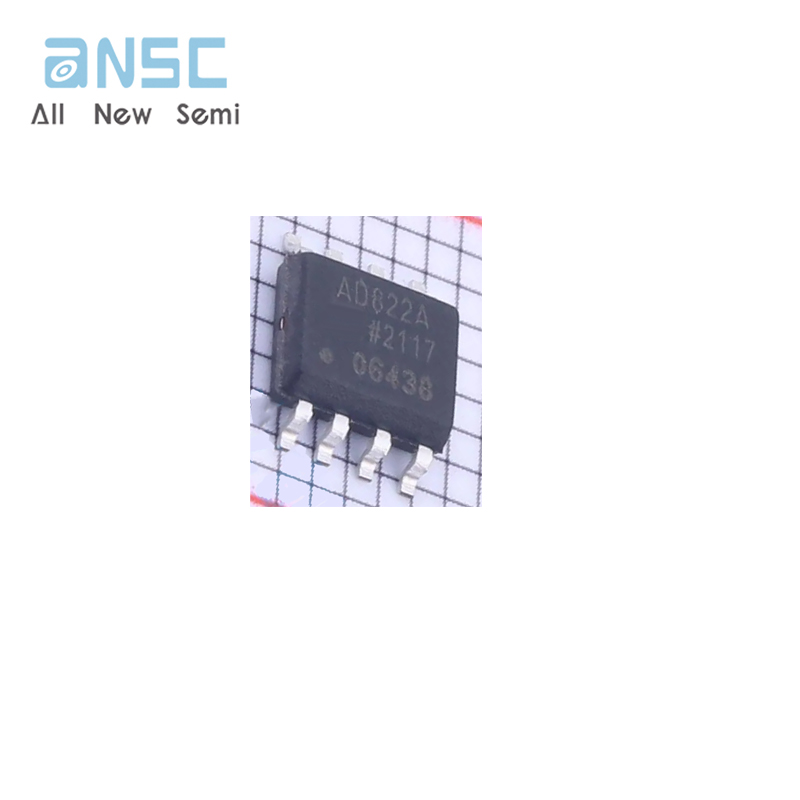

Product Photos

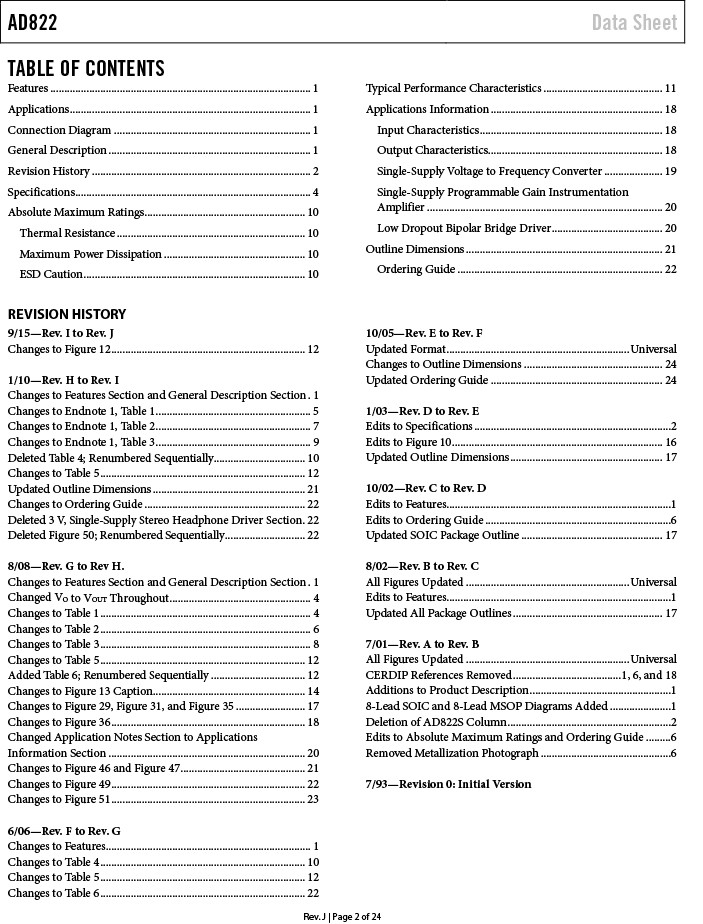

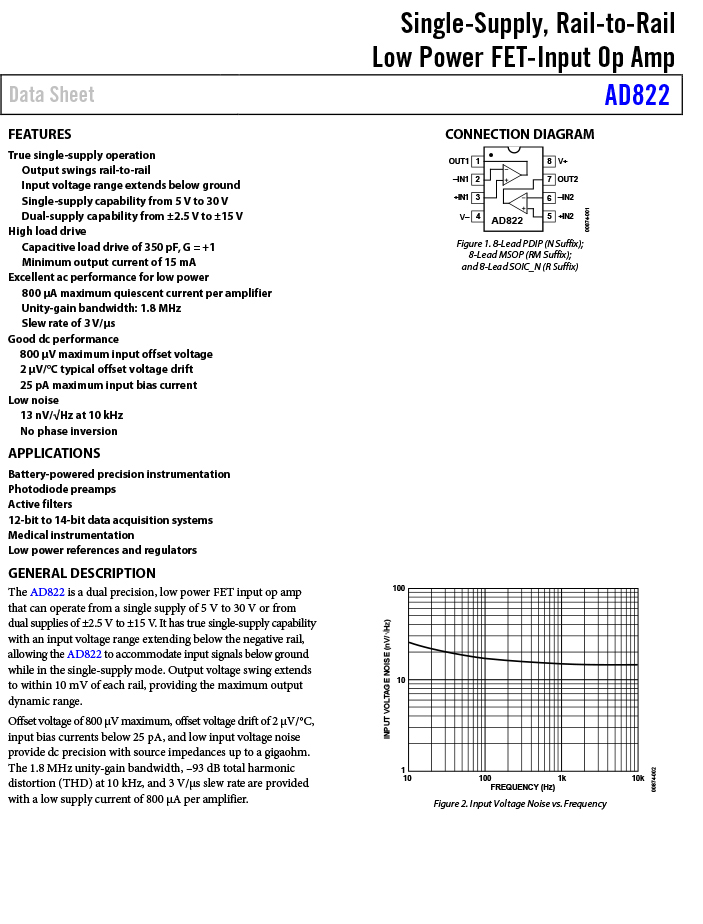

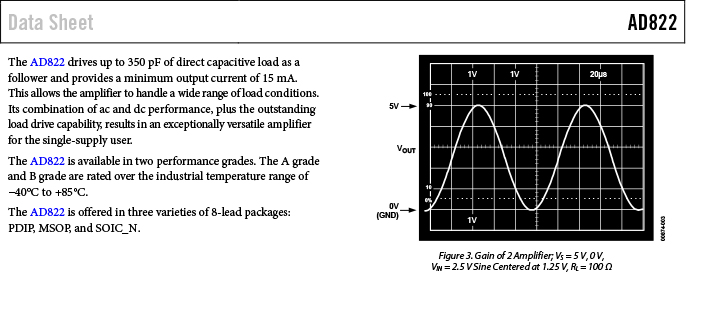

Product datasheet
For more information, please download
