Hot-selling and scarce LMC6482IMX/NOPB CMOS Rail-to-Rail Input and Output Operational Amplifiers SOP8 spot stock

Product Descriptions

The  LMC6482  and  LMC6484  (LMC648x)  devices provide a common-mode range that extends to both supply  rails.  This  rail-to-rail  performance  combined with   excellent   accuracy,   due   to   a   high   CMRR, makes these devices unique among rail-to-rail input amplifiers.  The  devices  are  an  excellent  choice for systems  that  require  a  large  input  signal  range, such as data acquisition. The LMC648x are also an excellent upgrade for circuits using limited commonmode range amplifiers, such as the TLC272 , TLC274 , TLC277 and TLC279 .

Maximum  dynamic  signal  range  is  provided  in  low voltage and single supply systems by the rail-to-rail output swing of the LMC648x. The rail-to-rail output swing  is  maintained for loads down to 600Ω of the device. Specified low-voltage characteristics and lowpower dissipation make the LMC648x a great choice for battery-operated systems.

The LMC648x devices are available in PDIP, SOIC, and VSSOP packages.

Product Features

•    Rail-to-rail input common-mode voltage range (specified over temperature)

•    Rail-to-rail output swing (within 20mV of supply rail, 100kΩ load)

•   Specified 3V, 5V, and 15V performance

•    Excellent CMRR and PSRR: 82dB

•    Ultra-low input current: 20fA

•   Specified for 2kΩ and 600Ω loads

•    Improved replacement for TLC272, TLC277

Product Applications

•    Data acquisition (DAQ)

•    Currency counter

•    Oscilloscope (DSO)

•    Intra-DC interconnect (METRO)

•    Macro remote radio unit (RRU)

•    Multiparameter patient monitor

•    Merchant telecom rectifiers

•   Train control and management

•    Process analytics (pH, gas, concentration, force, and humidity)

•   Three phase UPS

Product Specification

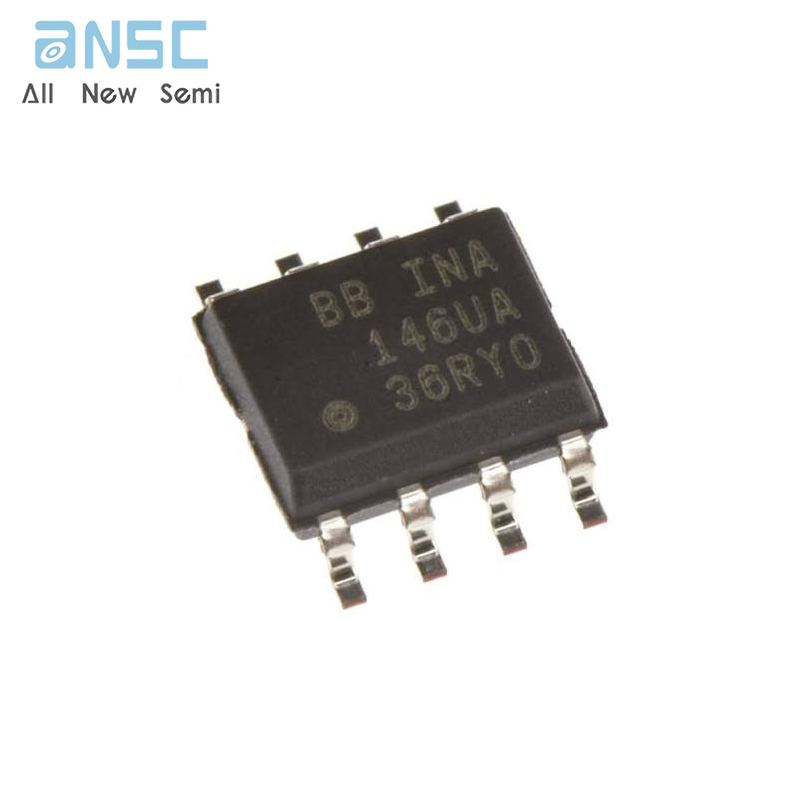

Product Photos

For more product information, please download the PDF
