Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce LM324MX Quad Operational Amplifier IC SOP14 spot stock
Manufacturer Product Number
LM324MX
Description
LM324MX Quad Operational Amplifier IC SOP14 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The LM324/LM324A,LM2902,LM224/LM224A consist offour independent, high gain, internally frequencycompensated operational amplifiers which were designedspecifically to operate from a single power supply over awide voltage range . operation from split power supplies isalso possible so long as the difference between the twosupplies is 3 volts to 32 volts . Application areas includetransducer amplifier, DC gain blocks and all theconventional OP Amp circuits which now can be easilyimplemented in single power supply systems .
Product Features
• Internally Frequency Compensated for Unity Gain
• Large DC Voltage Gain: 100dB
• Wide Power Supply Range:
LM224/LM224A, LM324/LM324A : 3V~32V (or ±1.5 ~16V)
LM2902: 3V~26V (or ±1.5V ~ 13V)
• Input Common Mode Voltage Range Includes Ground
• Large Output Voltage Swing: 0V to V CC -1.5V
• Power Drain Suitable for Battery Operation
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-LM324MX |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Series | LinCMOS™ |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 4 |
| Gain Bandwidth Product | 800 kHz |
| Current - Input Bias | 45 nA |
| Voltage - Input Offset | 2 mV |
| Current - Supply | 1.5mA |
| Current - Output / Channel | 30 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 32 V |
| Operating Temperature | 0°C ~ 70°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | LM324 |

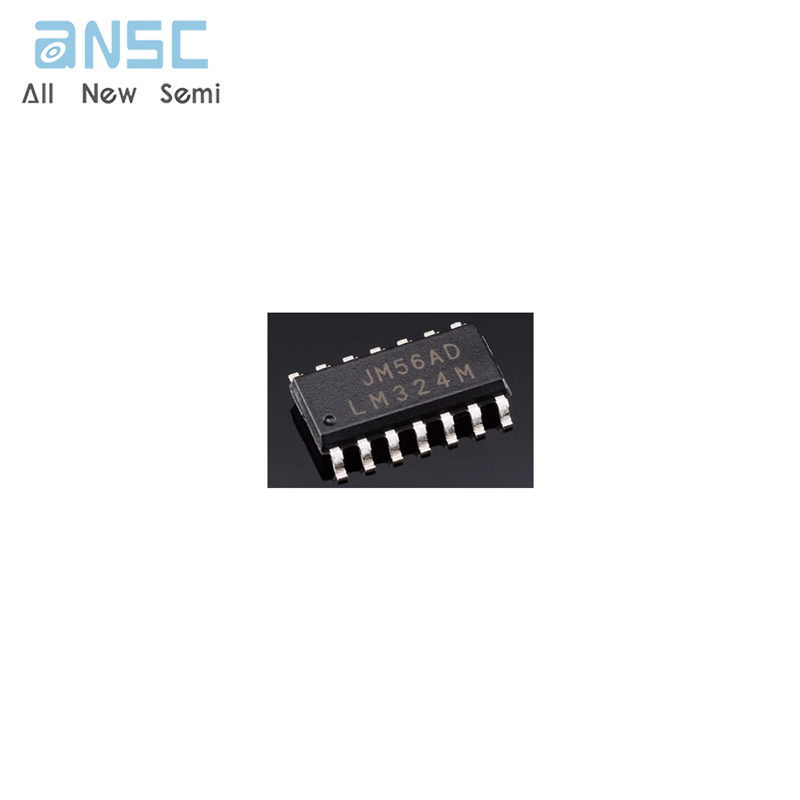

Product Photos
For more product information, please download the PDF
