You can contact me for the best price LM218H Integrated Circuits IC Operational Amplifiers Hot sale original electronics
Manufacturer Product Number
LM218H
Description
LM218H Integrated Circuits IC Operational Amplifiers Hot sale original electronics
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Highly Flexible Voltage Comparators The ability to operate from a single power supply of 5.0 V to 30 V or ±15 V split supplies, as commonly used with operational amplifiers, makes the LM211/LM311 a truly versatile comparator. Moreover, the inputs of the device can be isolated from system ground while the output can drive loads referenced either to ground, the VCC or the VEE supply. This flexibility makes it possible to drive DTL, RTL, TTL, or MOS logic. The output can also switch voltages to 50 V at currents to 50 mA. Thus the LM211/LM311 can be used to drive relays, lamps or solenoids. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- LM218H |
| Part Package | TO-5 |
| Package Description | Metal Can, To-99, 8 Pin |
| Pin Count | 8 |
| kg CO2e/kg | 12.3 |
| Average Weight (mg) | 1023 |
| CO2e (mg) | 12582.9 |
| Category CO2 Kg | 404 |
| Compliance Temperature Grade | Commercial Extended: -25c To +85c |
| Amplifier Type | Operational Amplifier |
| Architecture | Voltage-Feedback |
| Average Bias Current-Max (IIB) | 0.25 µA |
| Bias Current-Max (IIB) @25C | 0.25 µA |
| Common-mode Reject Ratio-Min | 80 Db |
| Common-mode Reject Ratio-Nom | 100 Db |
| Frequency Compensation | Yes |
| Input Offset Voltage-Max | 4000 µV |
| JESD-30 Code | O-MBCY-W8 |
| Low-Bias | No |
| Low-Offset | No |
| Micropower | No |
| Neg Supply Voltage Limit-Max | -20 V |
| Neg Supply Voltage-Nom (Vsup) | -15 V |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -25 °C |
| Package Body Material | Metal |
| Package Code | TO-99 |
| Package Equivalence Code | CAN8,.2 |
| Package Shape | Round |
| Package Style | Cylindrical |
| Power | No |
| Programmable Power | No |
| Slew Rate-Min | 50 V/Us |
| Slew Rate-Nom | 70 V/Us |
| Supply Current-Max | 15 Ma |
| Supply Voltage Limit-Max | 20 V |
| Supply Voltage-Nom (Vsup) | 15 V |
| Surface Mount | No |
| Technology | Bipolar |
| Temperature Grade | Other |
| Terminal Form | Wire |
| Terminal Position | Bottom |
| Unity Gain BW-Nom | 15000 |
| Voltage Gain-Min | 50000 |
| Wideband | No |

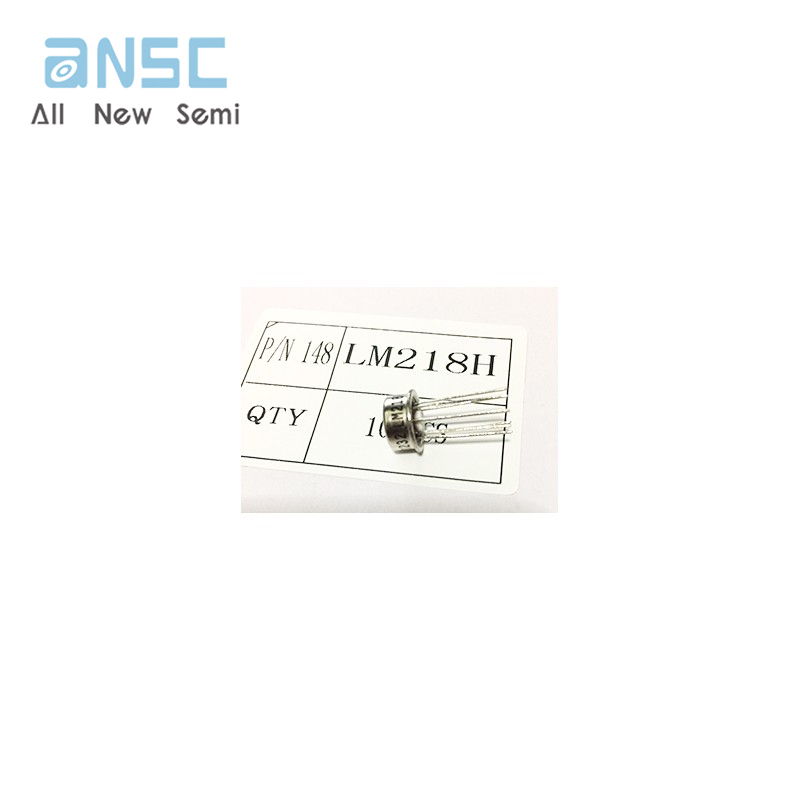

Actual image of the product

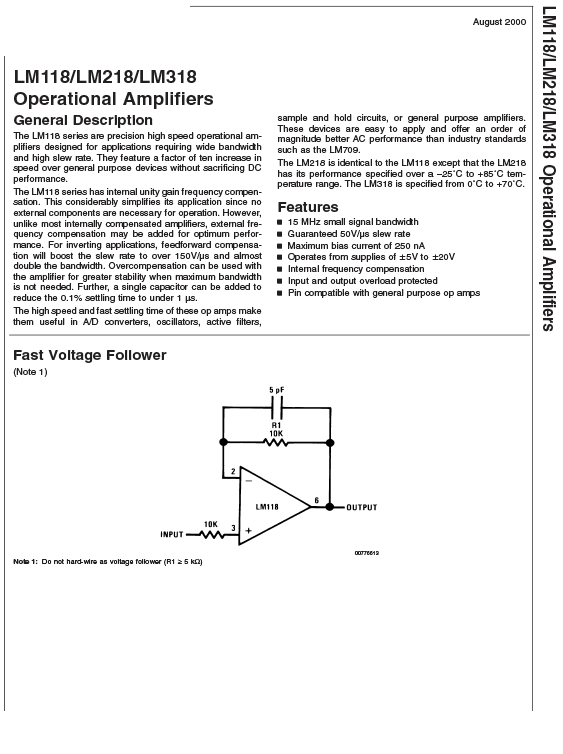

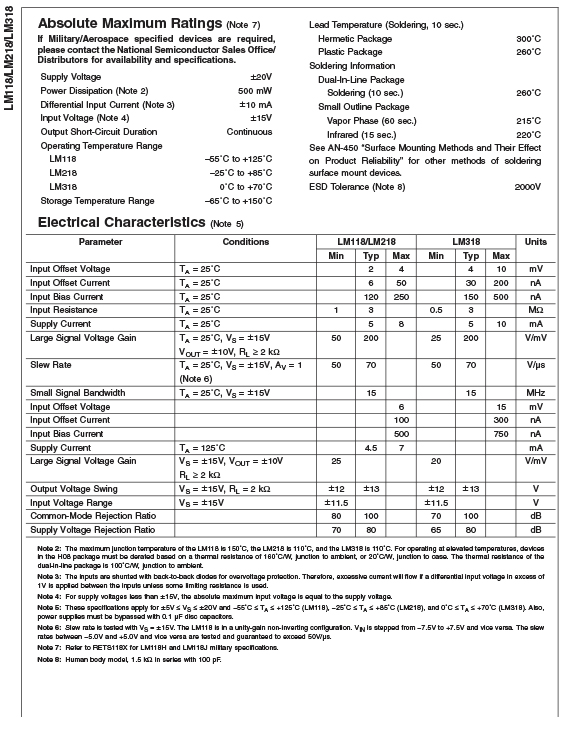

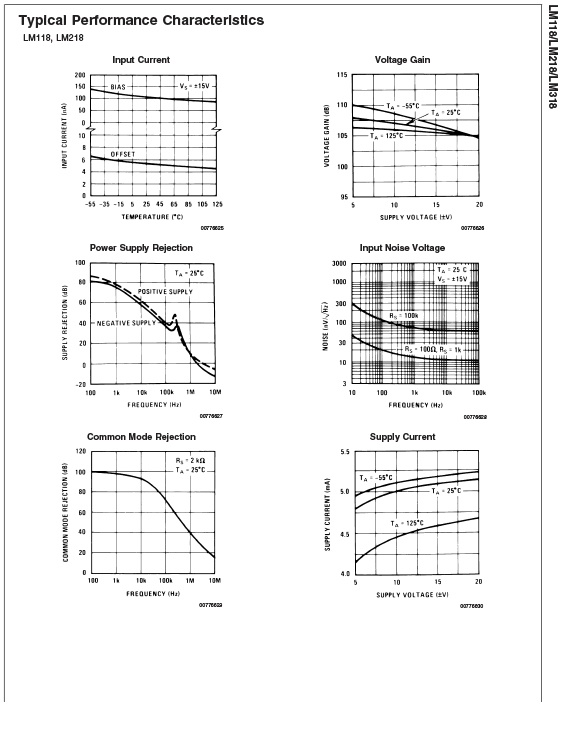

Product datasheet
