Hot-selling and scarce TPA2011D1YFFR 3.2W Mono Filter-Free Class-D Audio Power Amplifier DSBGA9 spot stock

Product Descriptions

The TPA2011D1 is a 3.2-W high efficiency filter-free class-D audio power amplifier (class-D amp) in a 1,21 mm × 1,16 mm wafer chip scale package (WCSP) that requires only three external components.

​

Features like 95 percent efficiency, 86-dB PSRR, 1.5 mA quiescent current and improved RF immunity make the TPA2011D1 class-D amp ideal for cellular handsets. A fast start-up time of 4 ms with no audible turn-on pop makes the TPA2011D1 ideal for PDA and smart-phone applications. The TPA2011D1 allows independent gain while summing signals from  separate sources, and has a low 20 μV noise floor.

Product Features

• Powerful Mono Class-D Amplifier

– 3.24 W (4 Ω, 5 V, 10 percent THDN)

– 2.57 W (4 Ω, 5 V, 1 percent THDN)

– 1.80 W (8 Ω, 5 V, 10 percent THDN)

– 1.46 W (8 Ω, 5 V, 1 percent THDN)

• Integrated Feedback Resistor of 300 kΩ

• Integrated Image Reject Filter for DAC Noise Reduction

• Low Output Noise of 20 μV

• Low Quiescent Current of 1.5 mA

• Auto Recovering Short-Circuit Protection

• Thermal Overload Protection

• 9-Ball, 1,21mm x 1,16 mm 0,4 mm Pitch WCSP

Product Applications

• Wireless or Cellular Handsets and PDAs

• Portable Navigation Devices

• General Portable Audio Devices

Product Specification

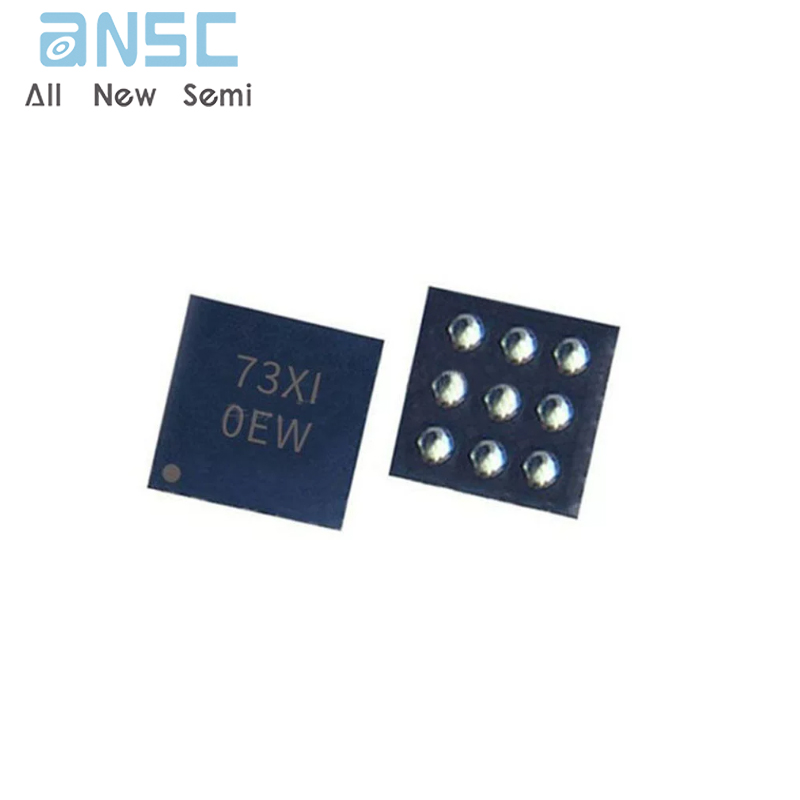

Product Photos

For more product information, please download the PDF
