Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale original TA75558P IC DUAL OP-AMP, 6000 uV OFFSET-MAX, 3 MHz BAND WIDTH, PDIP8, 0.300 INCH, 2.54 MM PITCH, PLASTIC
Manufacturer Product Number
TA75558P
Description
TA75558P IC DUAL OP-AMP, 6000 uV OFFSET-MAX, 3 MHz BAND WIDTH, PDIP8, 0.300 INCH, 2.54 MM PITCH, PLASTIC, DIP-8, Operational Amplifier
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

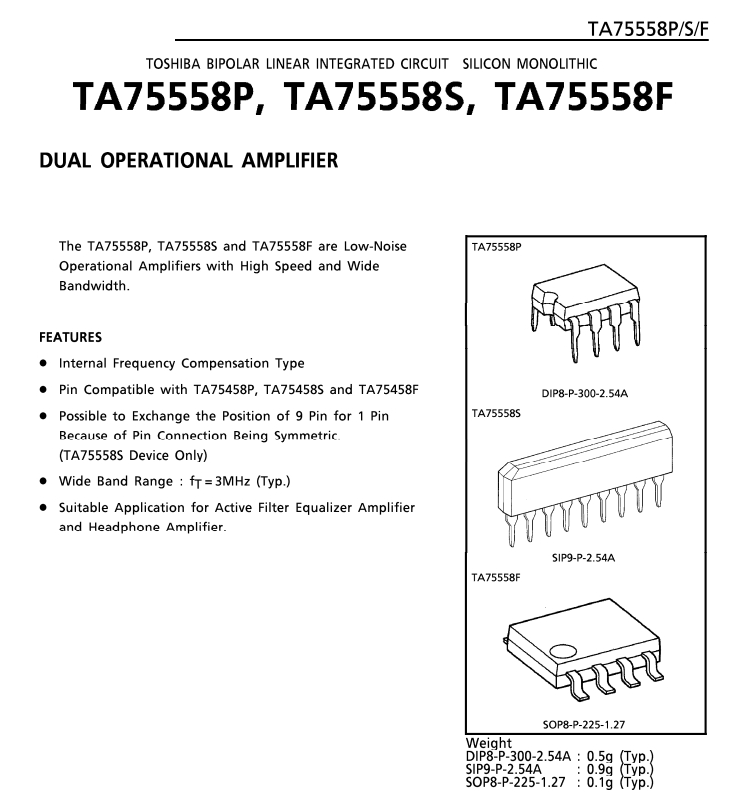

| Description The TA75558P, TA75558S and TA75558F are Low-Noise Operational Amplifiers with High Speed and Wide Bandwidth. Features ●Internal Frequency Compensation Type ●Pin Compatible with TA75458P, TA75458S and TA75458F ●Possible to Exchange the Position of 9 Pin for 1 Pin Because of Pin Connection Being Symmetric. (TA75558S Device Only) ●Wide Band Range : fτ = 3MHz (Typ) ●Suitable Application for Active Filter Equalizer Amplifier and Headphone Amplifier. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - TA75558P |
| Ihs Manufacturer | Original |
| Part Package Code | DIP |
| Package Description | DIP, DIP8,.3 |
| Pin Count | 8 |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Average Bias Current-Max (IIB) | 0.5 µA |
| Bias Current-Max (IIB) @25C | 0.5 µA |
| Common-mode Reject Ratio-Nom | 90 dB |
| Frequency Compensation | YES |
| Input Offset Voltage-Max | 6000 µV |
| Length | 9.6 mm |
| Low-Offset | NO |
| Neg Supply Voltage Limit-Max | -18 V |
| Neg Supply Voltage-Nom (Vsup) | -15 V |
| Number of Functions | 2 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP8,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.25 mm |
| Slew Rate-Nom | 1 V/us |
| Supply Current-Max | 6 mA |
| Supply Voltage Limit-Max | 18 V |
| Supply Voltage-Nom (Vsup) | 15 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Unity Gain BW-Nom | 3000 |
| Voltage Gain-Min | 20000 |
| Width | 7.62 mm |

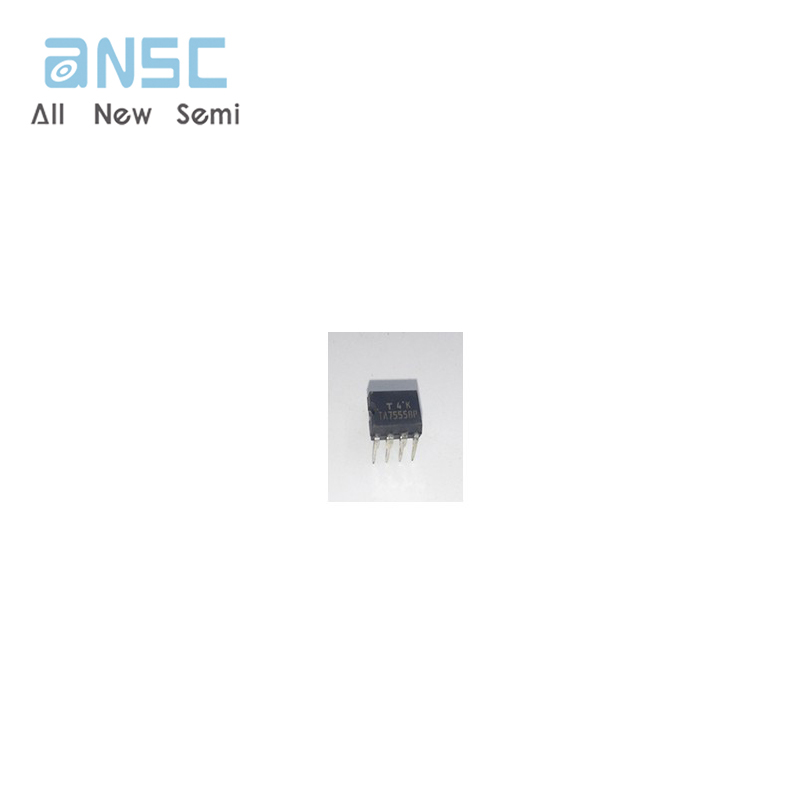

Product Photos

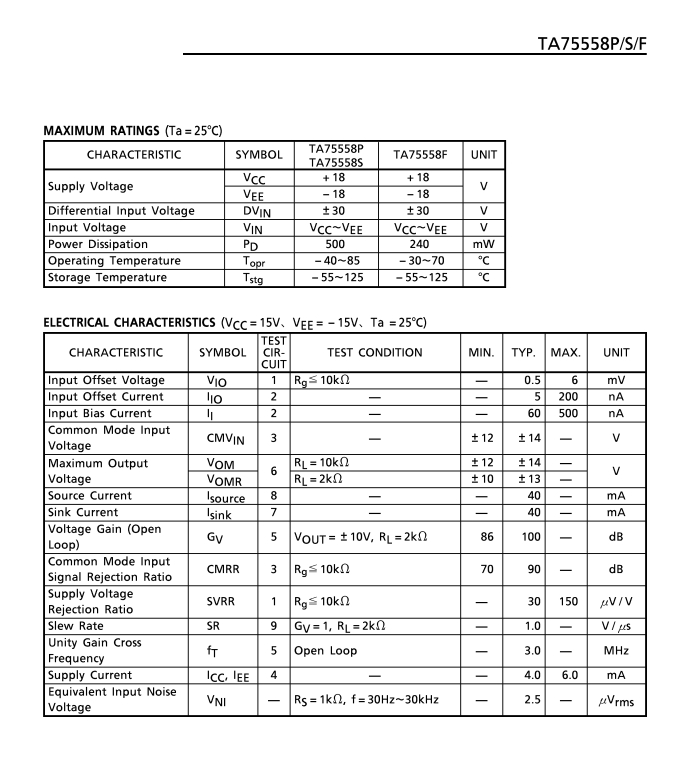

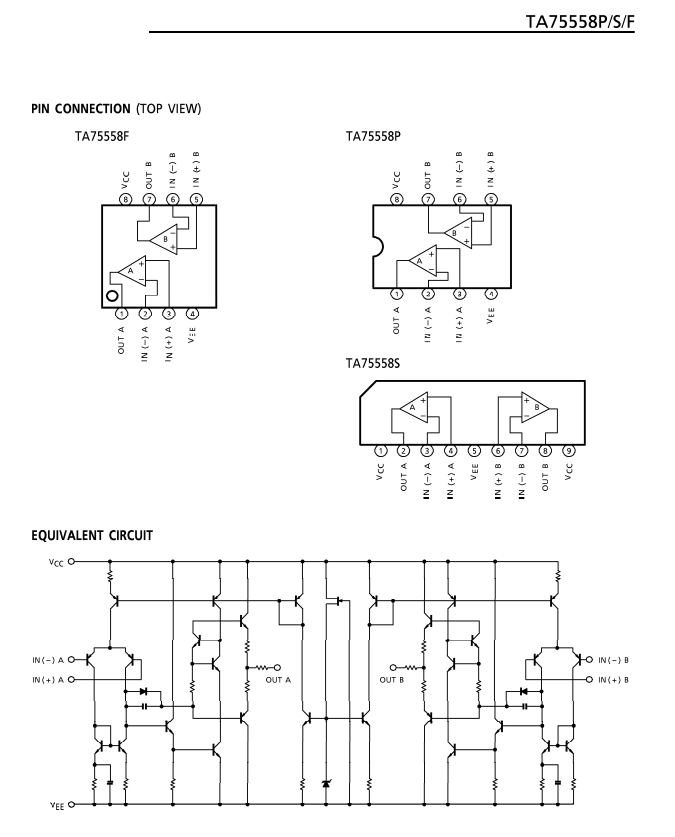

Product datasheet
For more information, please download
