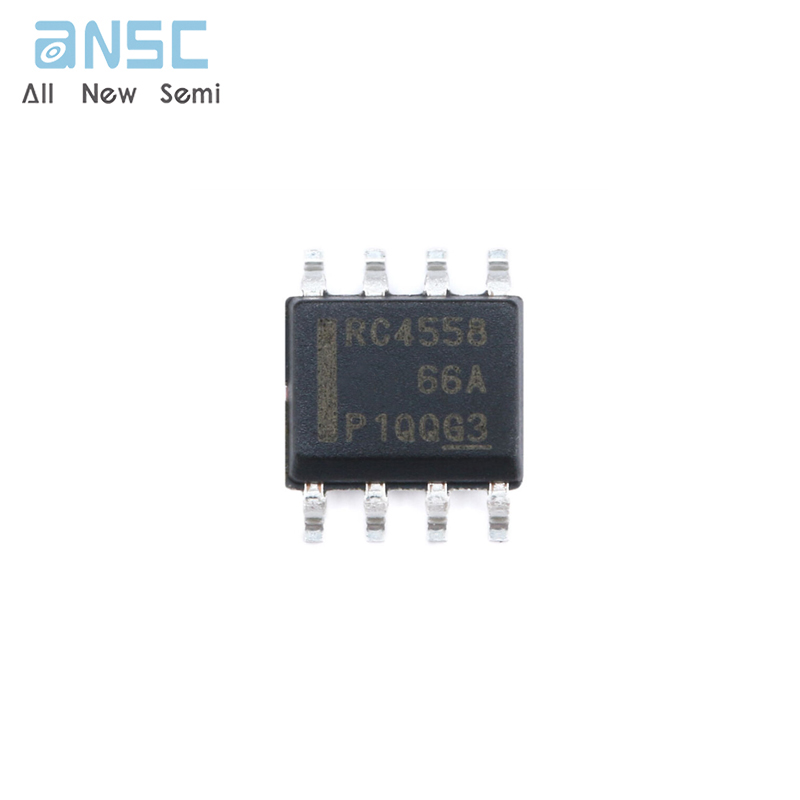

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce RC4558DRG4 DUAL GENERAL-PURPOSE OPERATIONAL AMPLIFIER IC SOP8 spot stock
Manufacturer Product Number
RC4558DRG4
Description
RC4558DRG4 DUAL GENERAL-PURPOSE OPERATIONAL AMPLIFIER IC SOP8 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The RC4558 device is a dual general-purpose operational amplifier, with each half electrically similar to theµA741, except that offset null capability is not provided.
The high common-mode input voltage range and the absence of latch-up make this amplifier ideal for voltage-follower applications. The device is short-circuit protected, and the internal frequency compensation ensures stability without external components.
Product Features
• Continuous Short-Circuit Protection
• Wide Common-Mode and Differential Voltage Ranges
• No Frequency Compensation Required
• Low Power Consumption
• No Latch-Up
• Unity-Gain Bandwidth . . . 3 MHz Typ
• Gain and Phase Match Between Amplifiers
• Low Noise 8 nV/√Hz Typ at 1 kHz
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-RC4558DRG4 |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Obsolete |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 2 |
| Output Type | Single-Ended |
| Slew Rate | 1.7V/µs |
| Gain Bandwidth Product | 3 MHz |
| Current - Input Bias | 150 nA |
| Voltage - Input Offset | 500 µV |
| Current - Supply | 2.5mA (x2 Channels) |
| Current - Output / Channel | 10 mA |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 30 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | RC4558 |
Product Photos
For more product information, please download the PDF
