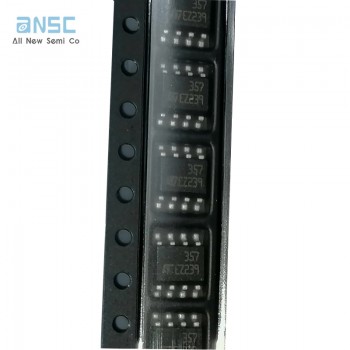

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale Original LF357D OP-AMP, 13000uV OFFSET-MAX, 20MHz BAND WIDTH, PDSO8, MICRO, PLASTIC, SOP-8
Manufacturer Product Number
LF357D
Description
LF357D OP-AMP, 13000uV OFFSET-MAX, 20MHz BAND WIDTH, PDSO8, MICRO, PLASTIC, SOP-8
Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| DESCRIPTION These circuits are monolithic J-FET input operational amplifiers incorporating well matched, high voltage J-FET on the same chip with standard bipolar transistors. This amplifiers feature low input bias and offset currents, low input offset voltage and input offset voltage drift,coupled with offset adjust which does not degrade drift or common-mode rejection. The devices are also designed for high slew rate, wide bandwidth,extremely fast settling time, low voltage and current noise and a low 1/f noise level. ■ HIGH INPUT IMPEDANCE J-FET INPUT STAGE ■ HIGH SPEED J-FET OP-AMPs : up to 20MHz, 50V/µs ■ OFFSETVOLTAGEADJUSTMENT DOES NOT DEGRADE DRIFT OR COMMON-MODE REJECTION AS IN MOST OF MONOLITHIC AMPLIFIERS ■ INTERNAL COMPENSATION AND LARGE DIFFERENTIAL INPUTVOLTAGECAPABILITY (UP TO VCC+) TYPICAL APPLICATIONS ■ PRECISION HIGH SPEED INTEGRATORS ■ FAST D/A AND CONVERTERS ■ HIGH IMPEDANCE BUFFERS ■ WIDEBAND, LOW NOISE, LOW DRIFT AMPLIFIERS ■ LOGARITHIMIC AMPLIFIERS ■ PHOTOCELL AMPLIFIERS ■ SAMPLE AND HOLD CIRCUITS |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- LF357D |
| Ihs Manufacturer | Original |
| Part Package Code | SOIC |
| Package Description | MICRO, PLASTIC, SOP-8 |
| Pin Count | 8 |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Average Bias Current-Max (IIB) | 0.008 µA |
| Bias Current-Max (IIB) @25C | 0.0002 µA |
| Common-mode Reject Ratio-Min | 80 dB |
| Common-mode Reject Ratio-Nom | 100 dB |
| Frequency Compensation | YES (AVCL>=5) |
| Input Offset Voltage-Max | 13000 µV |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e0 |
| Length | 4.9 mm |
| Low-Bias | YES |
| Low-Offset | NO |
| Micropower | NO |
| Neg Supply Voltage Limit-Max | -18 V |
| Neg Supply Voltage-Nom (Vsup) | -15 V |
| Number of Functions | 8 |
| Number of Terminals | 1 |
| Operating Temperature-Max | 70 °C |
| Operating Temperature-Min | / |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP8,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Power | NO |
| Programmable Power | NO |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Slew Rate-Nom | 50 V/us |
| Supply Current-Max | 10 mA |
| Supply Voltage Limit-Max | 18 V |
| Supply Voltage-Nom (Vsup) | 15 V |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Unity Gain BW-Nom | 20000 |
| Voltage Gain-Min | 15000 |
| Wideband | NO |
| Width | 3.9 mm |
