Hot-selling and scarce LMH6732MF/NOPB High Speed Op Amp with Adjustable Bandwidth SOT-23-6 spot stock

Product Descriptions

The LMH6732 is a high speed op amp with a uniquecombination    of    high    performance,    low    powerconsumption, and flexibility of application . The supplycurrent  is  adjustable,  over  a  continuous  range  ofmore than  10 to  1, with a single  resistor,  R_P . Thisfeature allows the device to be used in a wide varietyof high performance applications including device turnon/  turn  off  (Enable/  Disable)  for  power  saving  ormultiplexing .   Typical   performance   at   any   supplycurrent  is  exceptional .  The  LMH6732's  design  hasbeen optimized so that the output  is well  behaved,eliminating spurious outputs on "Enable".

The  LMH6732's  combination  of  high  performance,low     power     consumption,     and     large     signalperformance  makes  it  ideal  for  a  wide  variety  ofremote site  equipment applications such as  batterypowered  test  instrumentation  and  communicationsgear .   Other   applications   include   video   switchingmatrices, ATE and phased array radar systems .

The LMH6732 is available in the SOIC and SOT-23packages .  To  reduce  design  times  and  assist  inboard  layout,  the   LMH6732   is  supported   by  anevaluation board

Product Features

•    Ultra High Speed (−3dB BW) 1.5GHz

(ICC = 10mA, 0.25VPP)

•    Single Resistor Adjustability of Supply Current

•    Fast Enable/ Disable Capability 20ns

(ICC = 9mA)

•    "Popless" Output on "Enable" 15mV

(ICC = 1mA)

•    Ultra Low Disable Current <1μA

•    Unity Gain Stable

•    Improved Replacement for CLC505 & CLC449

Product Applications

•    Battery Powered Systems

•    Video Switching and Distribution

•    Remote Site Instrumentation

•    Mobile Communications Gear

Product Specification

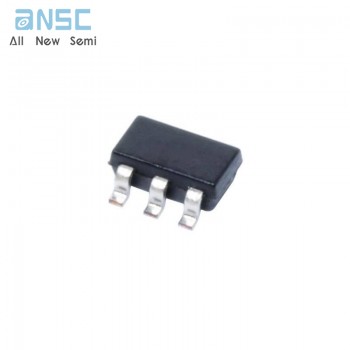

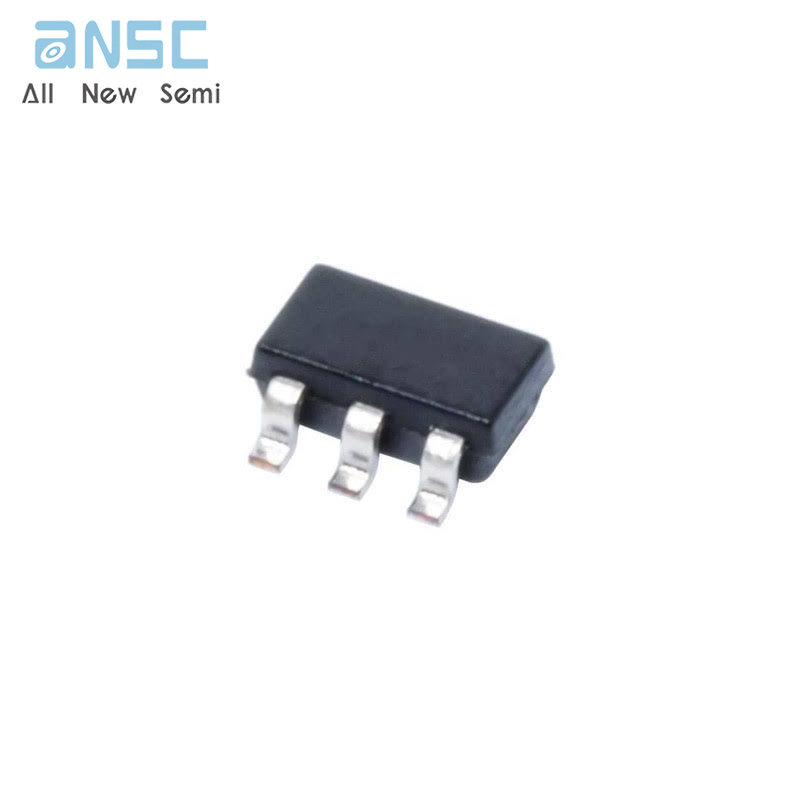

Product Photos

For more product information, please download the PDF
