Hot-selling and scarce SMP04ES CMOS Quad Sample-and-Hold Amplifier SOP16 spot stock

Product Descriptions

The SMP04 is a monolithic quad sample-and-hold; it has fourinternal precision buffer amplifiers and internal hold capacitors .It is manufactured in ADI’s advanced oxide isolated CMOStechnology to obtain the high accuracy, low droop rate and fastacquisition time required by data acquisition and signal processing systems . The device can acquire an 8-bit input signal to± 1/2 LSB in less than four microseconds . The SMP04 canoperate from single or dual power supplies with TTL/CMOSlogic compatibility . Its output swing includes the negative supply .

The SMP04 is ideally suited for a wide variety of sample-andhold applications, including amplifier offset or VCA gain adjustments . One or more can be used with single or multiple DACsto provide multiple setpoints within a system .

The SMP04 offers significant cost and size reduction overequivalent module or discrete designs . It is available in a16-lead hermetic or plastic DIP and surface mount SOICpackages . It is specified over the extended industrial temperature range of –40°C to +85°C .

Product Features

Four Independent Sample-and-Holds

Internal Hold Capacitors

High Accuracy: 12 Bit

Very Low Droop Rate: 2 mV/s typ

Output Buffers Stable for CL ≤ 500 pF

TTL/CMOS Compatible Logic Inputs

Single or Dual Supply Applications

Monolithic Low Power CMOS Design

Product Applications

Signal Processing Systems

Multichannel Data Acquisition Systems

Automatic Test Equipment

Medical and Analytical Instrumentation

Event Analysis

DAC Deglitching

Product Specification

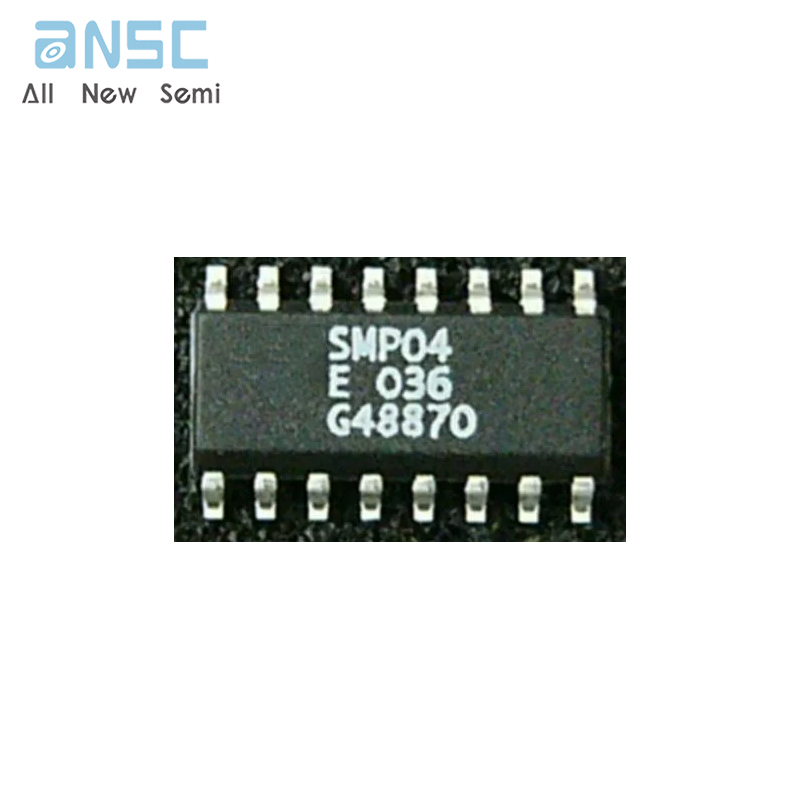

Product Photos

For more product information, please download the PDF
