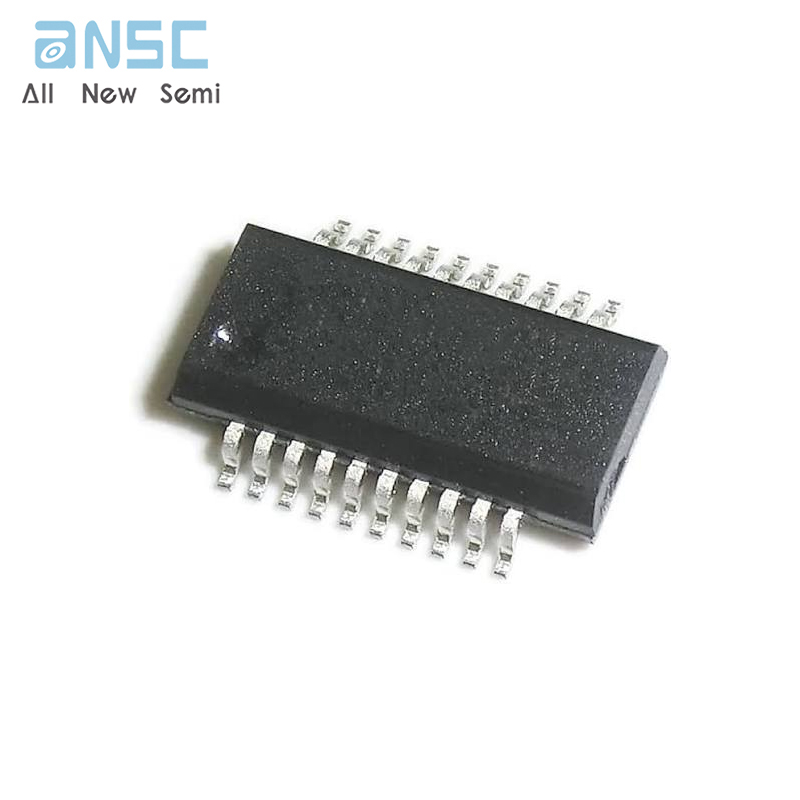

Hot-selling and scarce MAX3761EEP+ Low-Power, 622Mbps Limiting Amplifiers IC SSOP20 spot stock

Product Descriptions

The MAX3761/MAX3762 limiting amplifiers, with 4mVsensitivity and PECL data outputs, are optimized foroperation in low-cost, 622Mbps, LAN/ATM LAN fiberoptics applications .

An integrated power detector senses the input signal’samplitude . A received-signal-strength indicator (RSSI)gives an analog indication of the power level, while thecomplementary loss-of-signal (LOS) outputs indicate ifthe  input  power  level exceeds the  programmedthreshold level . The LOS threshold can be adjusted todetect  signal  amplitudes  between  3mVp-p  and100mVp-p, providing a 15dB LOS adjustment in fiberoptic  receivers . The  LOS outputs  have 3.5dB ofhysteresis, which prevents chatter when input signallevels are small . The MAX3761’s LOS outputs are compatible with TTL-logic levels . The MAX3762 has PECLLOS outputs .

DISABLE and LOS can be used to implement a squelchfunction, which turns off the data outputs when theinput signal is below the programmed threshold .

Product Features

♦  Chatter-Free Power Detector with Programmable Loss-of-Signal Outputs

♦  4mV Input Sensitivity (PECL Loss-of-Signal Interface Logic—MAX3766

♦  PECL Data Outputs

♦  Single 5V Power Supply

♦ 250ps Output Edge Speed

♦  Low 15ps Pulse-Width Distortion

♦ TTL Loss-of-Signal Interface Logic—MAX3761

Product Applications

622Mbps LAN/ATM LAN Receivers

155Mbps LAN/ATM LAN Receivers

Product Specification

Product Photos

For more product information, please download the PDF
