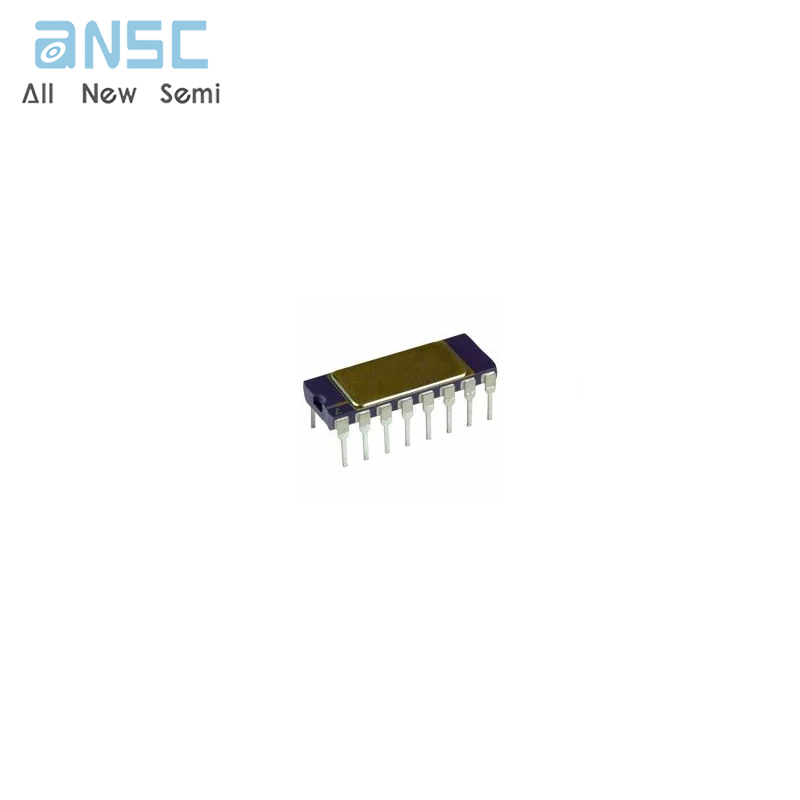

Hot-selling and scarce AD625ADZ Programmable Gain Instrumentation Amplifier IC DIP16 spot stock

Product Descriptions

The AD625 is a precision instrumentation amplifier specifically designed to fulfill two major areas of application: 1) Circuits requiring nonstandard gains (i.e., gains not easily achievable with devices such as the AD524 and AD624). 2) Circuits requiring a low cost, precision software programmable gain amplifier.

For low noise, high CMRR, and low drift the AD625JN is the most cost effective instrumentation amplifier solution available. An additional three resistors allow the user to set any gain from1 to 10,000 . The error contribution of the AD625JN is less than0.05% gain error and under 5 ppm/°C gain TC; performance limitations are primarily determined by the external resistors. Common-mode rejection is independent of the feedback resistor matching.

A software programmable gain amplifier (SPGA) can be configured with the addition of a CMOS multiplexer (or other switch network), and a suitable resistor network. Because the ON resistance of the switches is removed from the signal path, an AD625 based SPGA will deliver 12-bit precision, and can be programmed for any set of gains between 1 and 10,000, with completely user selected gain steps.

Product Features

User Programmed Gains of 1 to 10,000

Low Gain Error: 0.02% Max

Low Gain TC: 5 ppm/C Max

Low Nonlinearity: 0.001% Max

Low Offset Voltage: 25 V

Low Noise 4 nV/√Hz (at 1 kHz) RTI

Gain Bandwidth Product: 25 MHz

16-Lead Ceramic or Plastic DIP Package,

20-Terminal LCC Package

Standard Military Drawing Available

MlL-Standard Parts Available

Low Cost

Product Specifications

Product Photos

For more product information, please download the PDF
