Hot-selling and scarce MGA-31289-TR1G 0.25W High Gain Driver Amplifier IC SOT-89 spot stock

Product Descriptions

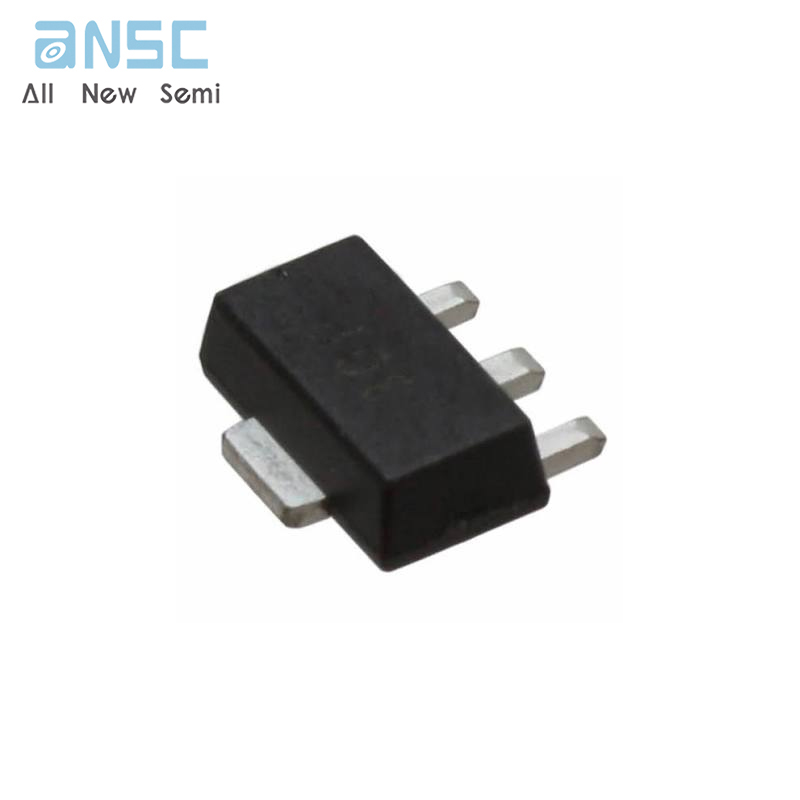

MGA-31289  is  a  0.25W  high  gain driver amplifier MMIC with good gain flatness, housed in a  standard  SOT-89  plastic  package. The  device features high  linearity  performance,  excellent  input  and  output return loss, and low noise figure.The device can be easily matched to obtain optimum power and linearity.

MGA-31289 is externally tunable to operate within 1.5GHz to 3GHz frequency range applications. With high IP3, low noise figure and wideband operation, MGA-31289 may be utilized as a driver amplifier in the transmit chain and as a second stage LNA in the receive chain.

This device uses Avago Technologies proprietary 0.25umGaAS Enhancement mode PHEMT process.

Product Features

•ROHS compliant

•Halogen free

•High linearity at low DC bias power(1)

•High Gain

•Good gain flatness

•Low noise figure

•Excellent uniformity in product specification

•SOT-89 standard package

Product Specification

Product Photos

For more product information, please download the PDF
